• reference:
• okta : https://chatgpt.com/c/7db419de-fa44-4403-b587-a0e849b35ce8

• my OAuth2 dev account : https://dev-16206041-admin.okta.com/admin/apps/active

• AWS OKTA SAML :

• https://saml-doc.okta.com/SAML_Docs/How-to-Configure-SAML-2.0-for-Amazon-Web-Service
• https://help.okta.com/en-us/content/topics/deploymentguides/aws/aws-configure-aws-app.html

- OktaOAuth2ClientConfiguration.java

pre-things

JWT

• body/payload : claims (statement about user and additional info)

Application arch

• server-side web applications (SpringMVC, JSP) :
• browser-based applications / SPA :
• native/mobile apps :
• connected devices (M2M, lambda) :

OpenId Connect

• Token based Authentication. ID-Token
• extension over OAuth2.

---

OAuth2

Intro

• http-redirection (header :: location=url-2, responseCode :: 302)
• refer : https://auth0.com/intro-to-iam/what-is-oauth-2

• Definition : OAuth standard protocol to solve Delegated Authorization. > - allow appl(Client) to access resources hosted by other web apps, on behalf of a user/resource-owner. > - provides consented access. > - restricts actions of what the client app can perform on resources, without sharing user credential.

• Token based Authorization. Access-Token + Refresh Token (long expiry )

• Token based:
• format : JWT.
• token/s with multiple scope. (roles)
• received on callback URI

• OAuth 2.0 doesn’t define a specific format for Access Tokens

• client must identify/authenticate itself, when requesting an Access Token.

• Resource server (spring-backend-app)
• must validate JWT
• has role-based access code.

Key Components :

Eg: photoPrint-App <--> Google-Drive

• resource-Owner (User)
• Client
• resource-Server
• Authorization-Server
• more:

• Scopes

  • specify exactly the reason, for which access to resources may be granted.
  • dependent on the Resource Server.
  • while making Auth request mention scopes. eg: openid, profile, email, offline_access
  • returned token will have claims.

• Authorization Code

  • OAuth 2 Authorization server may not directly return an Access Token.
  • Instead, and for better security, an Authorization Code may be returned, which is then exchanged for an Access Token.
• Grant Types
  • grants are the set of steps a Client has to perform to get "resource-access-authorization".
  • check below for detail.
• claims
  • Registered claims: iss (issuer), exp (expiration time), sub (subject), aud (audience),
  • https://datatracker.ietf.org/doc/html/rfc7519#section-4.1
  • public claims : https://www.iana.org/assignments/jwt/jwt.xhtml
  • private claims :

Grant Types (flows)

• grants are the "set of steps" a Client has to perform to get "resource-access-authorization".

Authorization Code Grant with/without PKCE

• https://developer.okta.com/docs/guides/sign-into-web-app-redirect/spring-boot/main/
• After validating client identity,
• AuthServer return single-use Authorization-Code to the Client via callback URI
• which is then exchanged for an Access Token.
• use-case : Traditional web apps where the exchange can securely happen on the server side. // back-channel.
• PKCE : additional steps that make it more secure for mobile/native apps and SPAs.

      1. Client : GET /authorize?response_type=code&client_id=`CLIENT_ID`&redirect_uri=`REDIRECT_URI`&scope=read&state=xyz
      2. OKTA : HTTP/1.1 302 Found Location: https://client-app.com/callback?code=`AUTHORIZATION_CODE`&state=xyz
      3. Client : POST /token
         Content-Type: application/x-www-form-urlencoded
         grant_type=authorization_code&code=AUTHORIZATION_CODE&redirect_uri=REDIRECT_URI&client_id=CLIENT_ID&client_secret=CLIENT_SECRET


Implicit Grant

• A simplified flow where the Access Token is returned "directly" to the Client.
• use-case : SPA.

client-credential Grant

• First client acquire its own credentials(client id, client secret) from the Authorization Server,
• Access Token is returned against these credential. (basically AuthServer validate identity.)
• use-case : lambda, micro services.
• https://developer.okta.com/blog/2021/05/05/client-credentials-spring-security
• hands on:

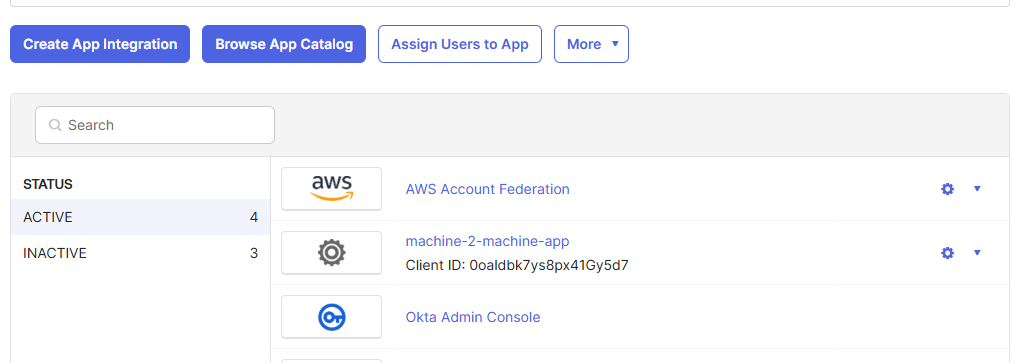

• created app / client https://dev-16206041-admin.okta.com/admin/app/oidc_client/instance/0oaldbk7ys8px41Gy5d7/#tab-general

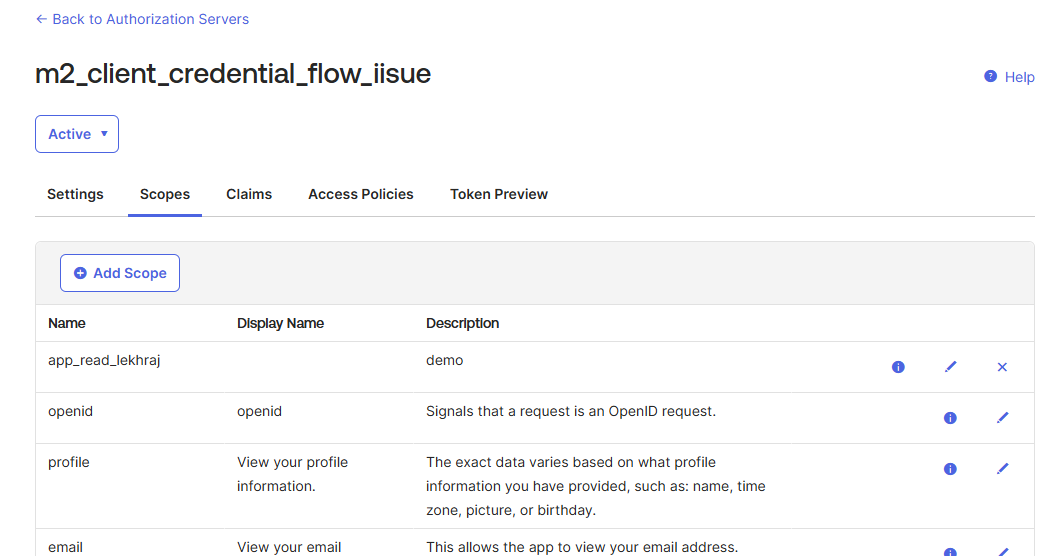

• created auth server: https://dev-16206041-admin.okta.com/admin/oauth2/as/ausldbxlfakbwq32P5d7#
  • add scope : app_read_lekhraj
  • add Access policy : allow above client
  • DPoP : disable
  • can add Trusted-servers

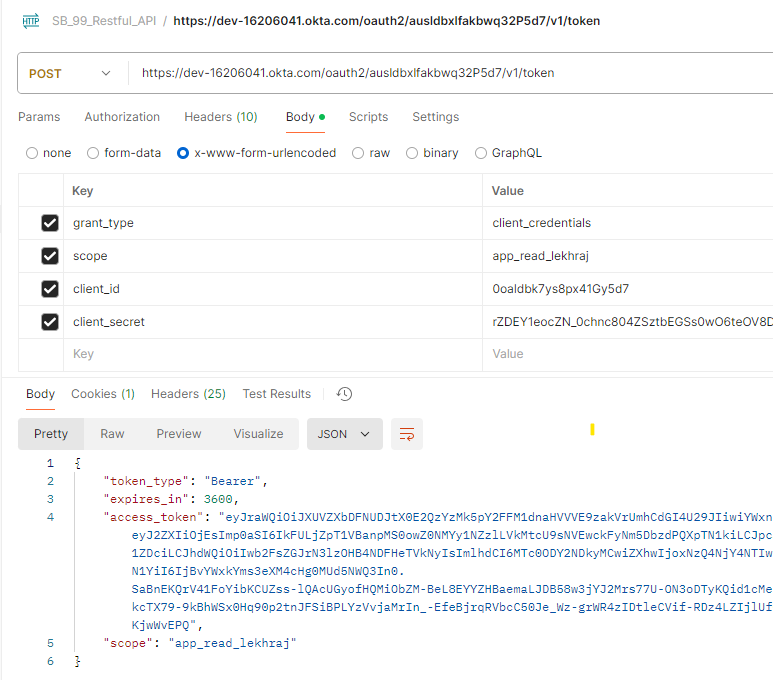

• made postman call : https://lekhrajdinkar-postman-team.postman.co/workspace/My-Workspace~355328d1-2f75-4558-8e56-e229e284f6a3/example/5083106-53c3fa91-ef5f-4f49-899f-2b1064386242
• created GET http://localhost:8083/spring/security/getAccessToken to do same.

      {

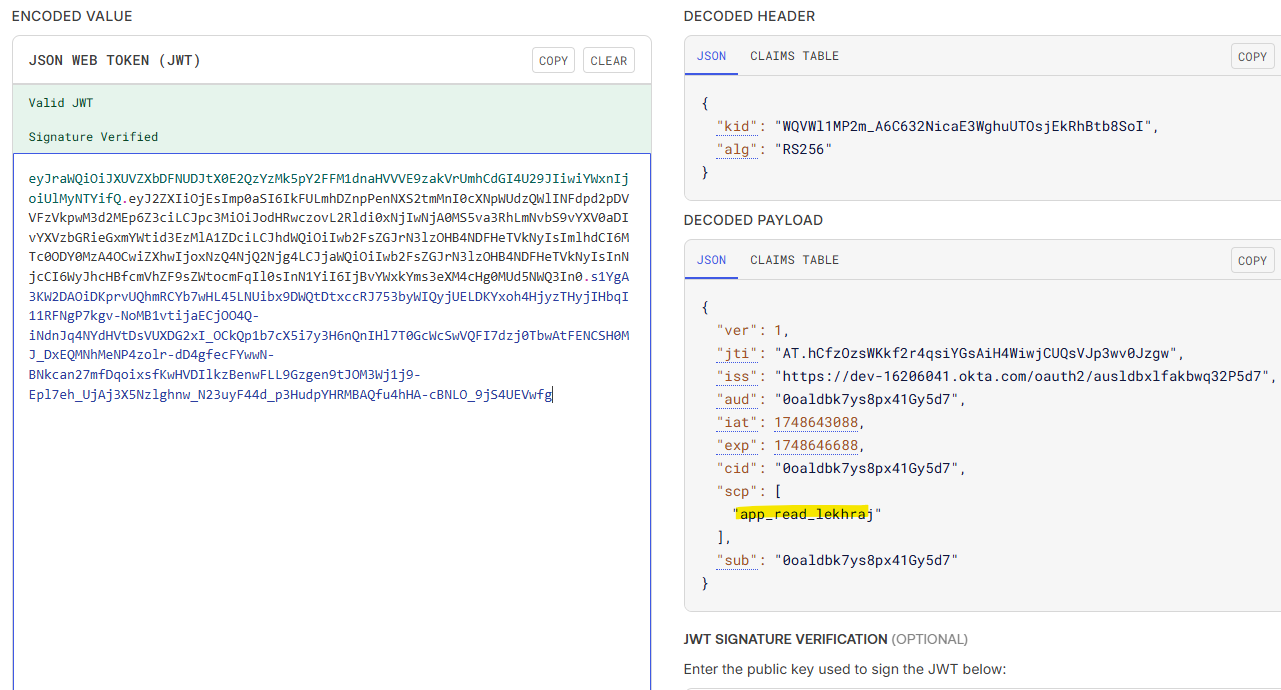

    "ver": 1,
    "jti": "AT.-DVBDB63tr7t34AlwXR_y3zT_mHZWpGPWxholPDGLfI",
    "iss": "https://dev-16206041.okta.com/oauth2/ausldbxlfakbwq32P5d7",
    "aud": "0oaldbk7ys8px41Gy5d7",
    "iat": 1732406655,
    "exp": 1732410255,
    "cid": "0oaldbk7ys8px41Gy5d7",
    "scp": [
    "app_read_lekhraj"                         <<<<<<
    ],
    "sub": "0oaldbk7ys8px41Gy5d7"
    }

  got exception:
    - org.springframework.security.oauth2.core.OAuth2AuthorizationException: [invalid_dpop_proof] The **DPoP proof JWT header is missing**.
    - Demonstration of Proof of Possession
    - provides an additional layer of security by requiring the client to prove possession of a private key associated.
    - Disable it of Authorizarion-server


Refresh Token Grant

• involves the exchange of a Refresh Token for a new Access Token.

---

screenshots:
