SpringBatch

  • https://spring.io/projects/spring-batch
  • https://www.linkedin.com/learning/spring-spring-batch
  • project : springbatch

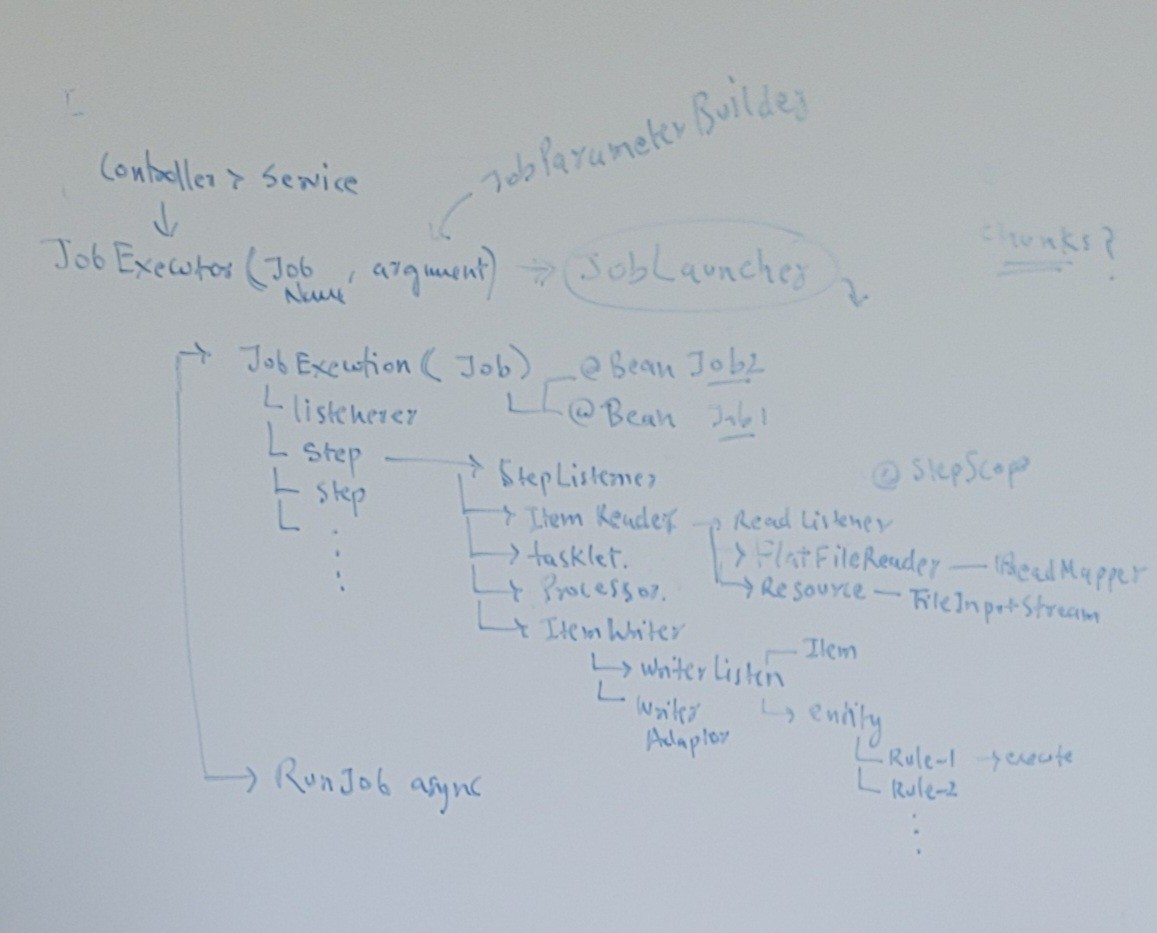

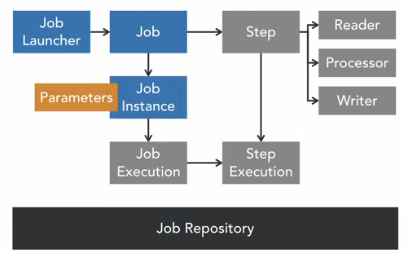

A. Architecture


key components

  • Job : Represents the batch process.
  • Step : A stage in the job (e.g., reading, processing, writing).
  • ItemReader : Reads data from a source.
  • ItemProcessor : Processes data (optional).
  • ItemWriter : Writes processed data to a destination.
  • JobRepository -
  • explicitly handles persistence of batch metadata, ensuring better control and compatibility with the latest versions.
  • set schema:
    • spring.datasource.url=jdbc:postgresql://localhost:5432/your_db?currentSchema=schema_name
    • String sql = "SELECT * FROM schema_name.table_name";
    • jdbcTemplate.execute("SET search_path TO schema_name");
    • dataSource.addDataSourceProperty("currentSchema", "schema_name");

B SpringBoot / Spring-batch (5.x.x)

  • Spring Framework 6.x | Spring Boot 3.x | Java 17
  • powerful framework for batch processing in Java.

1 key features

  • it provides the necessary components to build robust, scalable, and customizable ETL pipelines.
  • ETL processes require highly customized transformations and logic that traditional tools may not handle efficiently.
  • Spring Batch is open-source, making it a cost-effective alternative to commercial ETL tools
  • works seamlessly with CI/CD pipelines and modern deployment methods like Docker and Kubernetes. 👈
  • downside:
  • no visual interface.
  • ETL tools are faster to set up for simple tasks, while Spring Batch requires coding and configuration.
  • designed to handle large volumes of data by:
  • dividing it into smaller chunks,
  • providing capabilities like transaction management,
  • Chunk-Based Processing + parallel chunk processing
    @EnableBatchProcessing(
        dataSourceRef = "dataSource_for_postgres2",
        transactionManagerRef = "transactionManager_for_postgres2"
)

<dependency>
    <groupId>org.springframework.boot</groupId>
    <artifactId>spring-boot-starter-batch</artifactId>
</dependency>

@EnableAsync
tells Spring to look for methods annotated with @Async and execute them asynchronously.

2 add dashboard

  • add dependency
    <dependency>
    <groupId>org.springframework.batch</groupId>
    <artifactId>spring-batch-admin-manager</artifactId>
    <version>2.0.0.M3</version>
</dependency>

3 add Observability for job

  • Out-of-the-box support for distributed tracing and metrics using Micrometer.
  • Compatible with tools like OpenTelemetry for tracing batch jobs.
  • Configure tracing and metrics to monitor your batch jobs in a distributed environment
      <dependency>
  <groupId>io.micrometer</groupId>
  <artifactId>micrometer-tracing-bridge-otel</artifactId>
   </dependency>

   <dependency>
  <groupId>io.opentelemetry</groupId>
  <artifactId>opentelemetry-exporter-otlp</artifactId>
   </dependency>

4 Monitor

  • https://github.com/spring-projects/spring-batch/blob/main/spring-batch-core/src/main/resources/org/springframework/batch/core/schema-postgresql.sql
  • BatchDDLRunner.java
  • table (6)
  • batch_job_execution: Stores metadata about job executions, such as job parameters, status, and the time it was started and finished.
  • batch_job_execution_context: Stores execution context data (such as intermediate results or application-specific data) for each job execution. It is associated with batch_job_execution via a foreign key.
  • batch_job_execution_params: Stores the parameters passed to the job during its execution, usually stored as key-value pairs.
  • batch_job_instance: Stores metadata about the job instance. This tracks the distinct logical execution of a job. For example, if you run the same job multiple times with different parameters, each run would have a separate job instance.
  • batch_step_execution: Stores metadata about individual step executions within a job, such as status, start time, and end time for each step.
  • batch_step_execution_context: Similar to batch_job_execution_context, but this table stores the execution context data for each step of the job.
