Cloud Formation (IAC)¶

A. Intro¶

declarative way of provisioning AWS Infrastructure
IAC
stack-1 (for vpc)
- reource-1 (tags - stackid(arn), logicalId, physicalId,etc)
- rsource-2
- ...
- resolves order / dependency
stack-2 (app stack)
...
versioned in git
app composer to visualize
cost

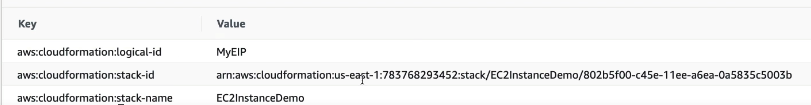

Each resources within the stack is tagged with an identifier so you can easily see how much a stack costs you
estimate the costs of your resources
schedule to destroy and re-create, to save cost.

B. Template¶

1. overview¶

• AWSTemplateFormatVersion  – identifies the capabilities of the template “2010-09-09”
• Description               – comments about the template
• Resources (MANDATORY)     – your AWS resources declared in the template
• Parameters                – the dynamic inputs for your template
• Mappings                  – the static variables for your template
• Outputs                   – references to what has been created
• Conditionals              – list of conditions to perform resource creation

2. resource¶

reference¶

check : https://docs.aws.amazon.com/AWSCloudFormation/latest/UserGuide/aws-template-resource-type-ref.html
700+ resource with example and doc.
will use CDK anyway.

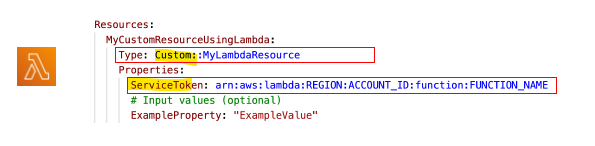

2.1 Custom resource ¶

certain resources not support
use CF custom resource
- backed by lambda - serviceToken (arm od lambda)

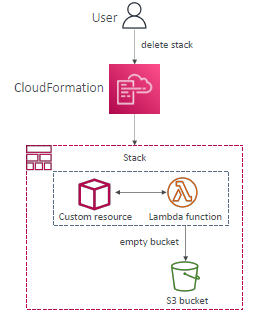

- usecase-1: empty s3 bucket before delete.

2.2 Delete Policy¶

resource-1
- DeletePolicy=Delete (default)
  - for s3, bucket must be empty
- DeletePolicy=Retain
- DeletePolicy=Snapshot
  - for EBS volume
  - databases :
    - RDS
    - DocumnetDB
    - ElastiCache
    - Neptune
    - ...

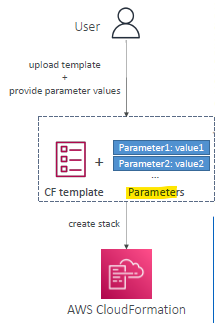

3. parameter (dynamic input)¶

refer/use them
!Ref parameter1
Fn::Ref parameter1, or resource1

# -- parameter --
- Type
    • String • Number • CommaDelimitedList
    • List<Number>
    • AWS-Specific Parameter + List<AWS-Specific Parameter>
    • SSM Parameter (get parameter value from SSM Parameter store)

- Default
- Description

- Constarint
    • Min/MaxLength
    • Min/MaxValue
    • AllowedValues (array)
    • AllowedPattern (regex)
    • NoEcho (Boolean) : for passowrd feild, so wont be logged/dispalyed anywhere

- Pseudo parameter

AWS::AccountId 123456789012
AWS::Region us-east-1
AWS::StackId arn:aws:cloudformation:us-east-1:123456789012:stack/MyStack/1c2fa620-982a-11e3-aff7-50e2416294e0
AWS::StackName MyStack
AWS::NotificationARNs [arn:aws:sns:us-east-1:123456789012:MyTopic]
AWS::NoValue Doesn’t return a value

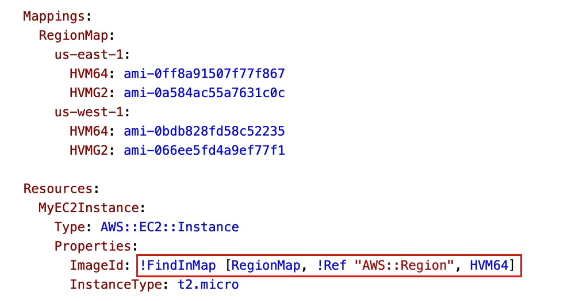

4. mapping : map(string,object)¶

static variable, fixed hardcoded value
use/refer
!FindInMap [ map-1, key, object-attribute-1]

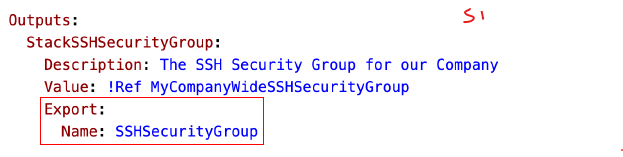

5. output (optional)¶

must be unique in region
print for console

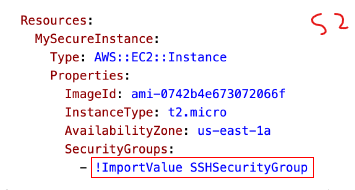

IAC-1 (collaboration)
stack-1(vpc-1) : output export vpc-id
stack-2(app-1) : refer vpc-id in this stack
eg:

6. Conditional¶

conditionally create resource.

eg based on env type.

Parameters:
  envType:
    Description: "The environment type (prd or dev)"
    Type: "String"
    AllowedValues:
      - prd
      - dev
    Default: "dev"

Conditions:
    IsProd: !Equals [!Ref envType, "prd"]  # True if envType is 'prd'
    IsDev: !Equals [!Ref envType, "dev"]  # True if envType is 'dev'
    IsNotProd: !Not [!Equals [!Ref envType, "prd"]]  # True if envType is not 'prd'
    IsProdOrDev: !Or
      - !Equals [!Ref envType, "prd"]
      - !Equals [!Ref envType, "dev"]  # True if envType is 'prd' or 'dev'
    IsNotDev: !Not [!Equals [!Ref envType, "dev"]]  # True if envType is not 'dev'
    IsProdAndNotDev: !And
      - !Equals [!Ref envType, "prd"]
      - !Not [!Equals [!Ref envType, "dev"]]  # True if envType is 'prd' and not 'dev'

Resources:
  Resource1:
    Type: "AWS::S3::Bucket"
    Condition: IsProd
    ...

  Resource2:
    Type: "AWS::DynamoDB::Table"
    Condition: !Not [IsProd]
    ...

  Resource3:
    Type: "AWS::Lambda::Function"
    Condition: IsProdOrDev
    ...

  Resource4:
    Type: "AWS::SNS::Topic"
    Condition: IsProdAndNotDev
    ...

6. Intrinsic function¶

!Ref resource | parameter
resource-1 : returns resource-1.id
parameter-1 : returns value
!GetAtt resource.attributename
!GetAtt ec2-i1.id
!GetAtt ec2-i1.AvialabilityZone
...
!FindInMap
!ImportValue
!Base64
conditions :: !Equals. !And !If !Not !Or
...

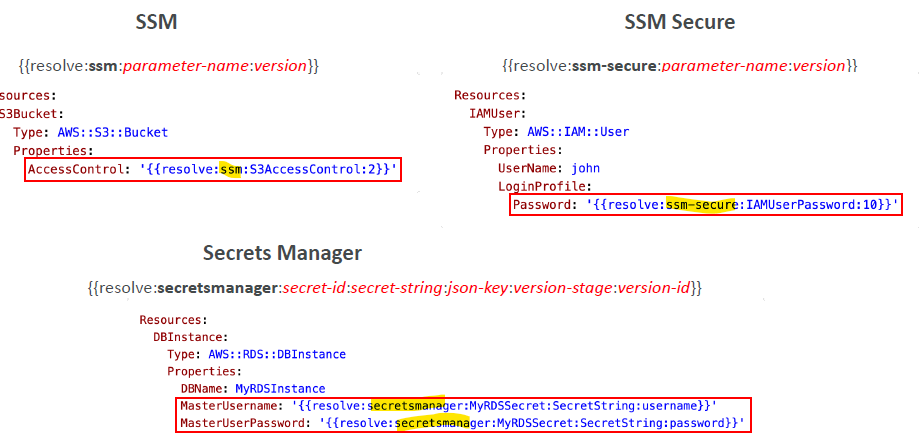

7. input from SSM + secretManager¶

99. more¶

stackUpdate¶

success
failed (stack failure options)
- option-1: preserve provisioned resource
- option-2 rollback to previous working stack (default)
- success
- fail: (if some has manual interruption on resource)
  - manually fix resource
  - call ContinueUpdateRollback from console/cli to get things in sync

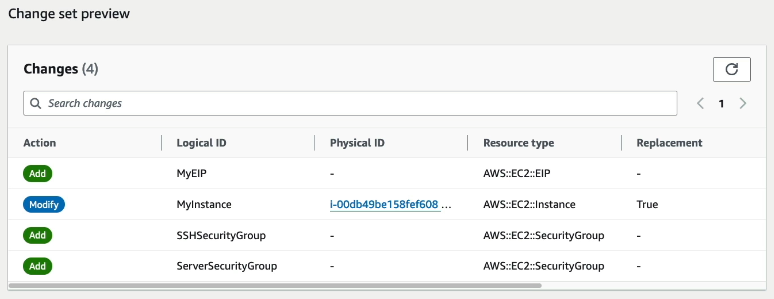

changeset¶

change in template - add, modify (replacemnet=true/false), etc

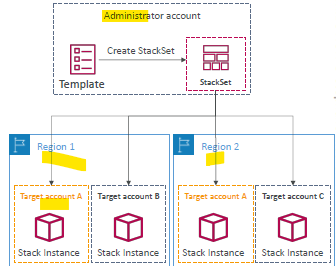

stackSet¶

AWS org
- admin account
- child accounts/s

C. Security ¶

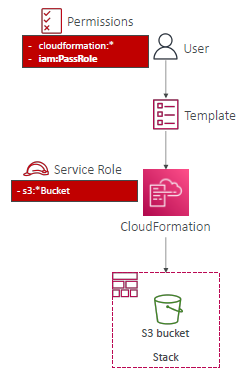

1. `IAM role`¶

being used for running stack
Borad-access-role
iam:PassRole
iam:getRole
Cloudformation:*
pipelineRole-1
s3:*
login in with Board-access-role
by default, it will be used for deploying stack.
or can explicitly choose other role/s :
- pipelineRole-1 : can create only s3, then.

2. stack policy¶

resource policy like s3 policy,etc
goal is to protect, resource from unintentional updates

3. CAPABILITY¶

3.1. Create iam role from stack¶

need to capability for that
CAPABILITY_IAM
CAPABILITY_NAMED_IAM
else InsufficientCapabilitiesException

3.2 Include nested-stack¶

need to capability
- CAPABILITY_AUTO_EXPAND
else InsufficientCapabilitiesException

4. termination protection¶

disable (default)
allows to delete stack
if enabled, then won't allow anyone to delete stack.

D. Example¶

1. EC2 example with short desc.¶

AWSTemplateFormatVersion: "2010-09-09"  # Identifies the capabilities of the template.

Description: "Sample CloudFormation template for deploying a web server." # Comments about the template.

Parameters:  # Dynamic inputs for your template.
  InstanceType:  # Logical name for the parameter.
    Description: "EC2 instance type"  # Description of the parameter.
    Type: "String"  # Type of the parameter (e.g., String, Number).
    Default: "t2.micro"  # Default value for the parameter.
    AllowedValues:  # Allowed values for the parameter.
      - "t2.micro"
      - "t2.small"
    ConstraintDescription: "Must be a valid EC2 instance type."

Mappings:  # Static variables for your template.
  RegionMap:
    us-east-1:
      AMI: "ami-0abcdef1234567890"  # AMI for US East (N. Virginia).
    us-west-1:
      AMI: "ami-0fedcba9876543210"  # AMI for US West (N. California).

Resources:  # Contains definitions of AWS resources to be created (MANDATORY).
  MyEC2Instance:  # Logical name for the EC2 instance.
    Type: "AWS::EC2::Instance"  # Specifies the resource type (an EC2 instance in this case). # service-provider::service-name::data-type-name
    Properties:  # Contains properties to configure the resource.
      InstanceType: !Ref InstanceType  # Uses the parameter for instance type.
      KeyName: "MyKeyPair"  # Name of the key pair for SSH access.
      ImageId: !FindInMap [RegionMap, !Ref "AWS::Region", AMI]  # Uses mappings to select the AMI.
      SecurityGroupIds:  # Specifies security groups for the instance.
        - !Ref MySecurityGroup  # References the security group defined below.
      Tags:  # Adds metadata to the instance.
        - Key: "Name"
          Value: "WebServer"

  MySecurityGroup:  # Logical name for the security group.
    Type: "AWS::EC2::SecurityGroup"  # Specifies the resource type (a security group in this case).
    Properties:  # Contains properties to configure the security group.
      GroupDescription: "Allow HTTP and SSH access"  # Description of the security group.
      SecurityGroupIngress:  # Rules for inbound traffic.
        - IpProtocol: "tcp"  # Protocol type (TCP).
          FromPort: 22  # Allows SSH traffic.
          ToPort: 22
          CidrIp: "0.0.0.0/0"  # Allows traffic from all IP addresses.
        - IpProtocol: "tcp"
          FromPort: 80  # Allows HTTP traffic.
          ToPort: 80
          CidrIp: "0.0.0.0/0"

Conditions:  # List of conditions to perform resource creation.
  CreateProdResources: !Equals [!Ref "AWS::Region", "us-east-1"]  # Example condition based on region.

Outputs:  # References to what has been created.
  InstanceId:  # Logical name for the output.
    Description: "ID of the EC2 instance"  # Description of the output.
    Value: !Ref MyEC2Instance  # References the EC2 instance to get its ID.

  PublicIP:  # Logical name for the output.
    Description: "Public IP address of the EC2 instance"  # Description of the output.
    Value: !GetAtt MyEC2Instance.PublicIp  # Retrieves the public IP address of the EC2 instance.

Cli¶

cfn-init ¶

helper script to initialize and configure EC2 instances.
It reads the AWS::CloudFormation::Init metadata from a CloudFormation template

and executes the specified configuration tasks, such as:

Installing packages  <<<
Configuring files
Running shell commands
Managing services
