A. Concept

  • CI
  • CD
  • pipeline
  • IAC

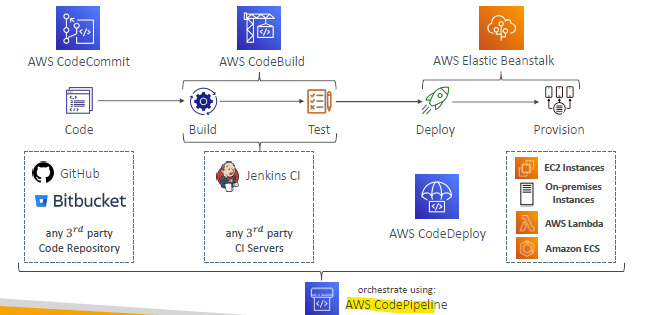

B. CodePipeline

  • attach iam role with correct permission.
  • stage/s
  • stage:success
  • stage:failed --> eb:event --> notify
  • step/s
    • step:success
    • step:failed --> eb:event --> notify

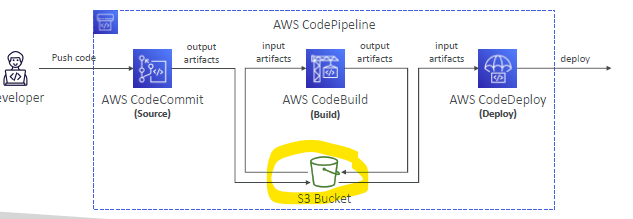

  • pipeline creates artifact in s3, then passed to next stage.
  • img.png
  • img_1.png

0. codeCommit

  • VCS
  • use external git: github
  • service terminate in july 2024 for new customer.

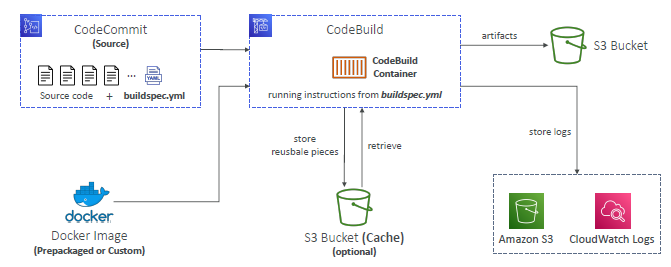

1. CodeBuild

  • can launch inside VPC-1

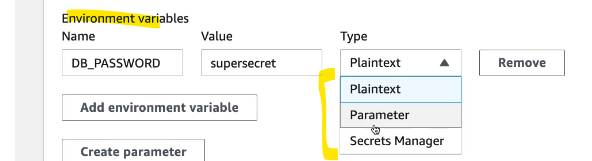

  • set env var
  • reference from SSM + secret manager
  • img_1.png
  • fully managed continuous integration (CI) service
  • build project:
  • add buildspec.yaml (root dir)
    • env
    • phases
    • artifact for s3
    • cache 👈
  • Compile source code, run tests, produce software packages
  • Leverages Docker under the hood for reproducible builds 👈
    • build container
    • Use prepackaged Docker images


2. CodeDeploy

  • deploy to ec2, lambda, ECS
  • add appsec.yaml (root)
  • CodeDeploy Agent on the target instances
  • on ecs already present
  • ec2/on-prem, install it.
  • deployment speed:
  • img_5.png
    • AllAtOnce: most downtime

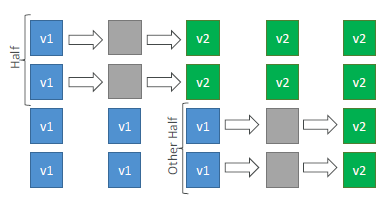

• HalfAtATime: reduced capacity by 50%
• OneAtATime: slowest, lowest availability impact
• Custom: define your %
  • Deploy on ASG 📚
  • in-place deployment
    • replace old instance with new version
    • downtime

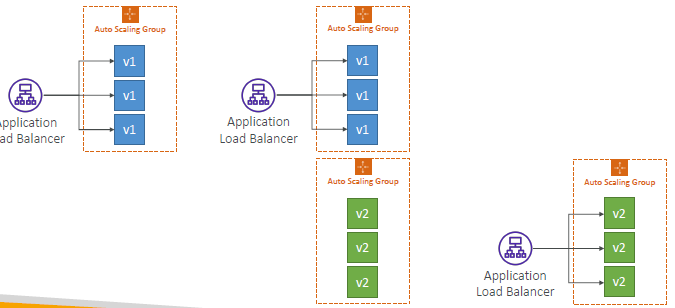

  • blue-green deployment (no downtime)

    • old ASG(blue)
    • create new ASG (green) : and deploy new version.
    • img_3.png
    • then use below traffic routing strategies to shift traffic to green ASG 👈
    • Linear: grow traffic every N minutes until 100%
    • Canary: try X percent then 100%
    • AllAtOnce: immediate
    • once all shift turn off blue ASG
    • img_4.png

  • Rollback

  • enable automatic rollback option.
  • if deployment fails
  • then make new deployment with last know good revision.

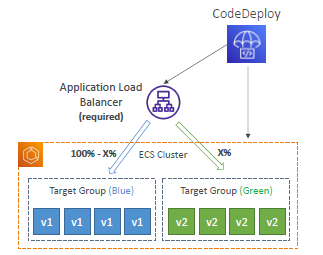

hands on (ECS) 👈

  • application-1
  • deployment-group-1
    • role-1 (permission to access targets)
    • choose cluster
    • choose ALB and tg
    • choose deployment type : inplace + blue/green
    • traffic routing strategy (allAtOnce, linear, canary)
  • appsec.yaml ?

hands on (EC2)

hands on (lambda)

- 25_SAM/00_start#c-hands-on

3. AWS CodeStar

– manage software development activities in one place

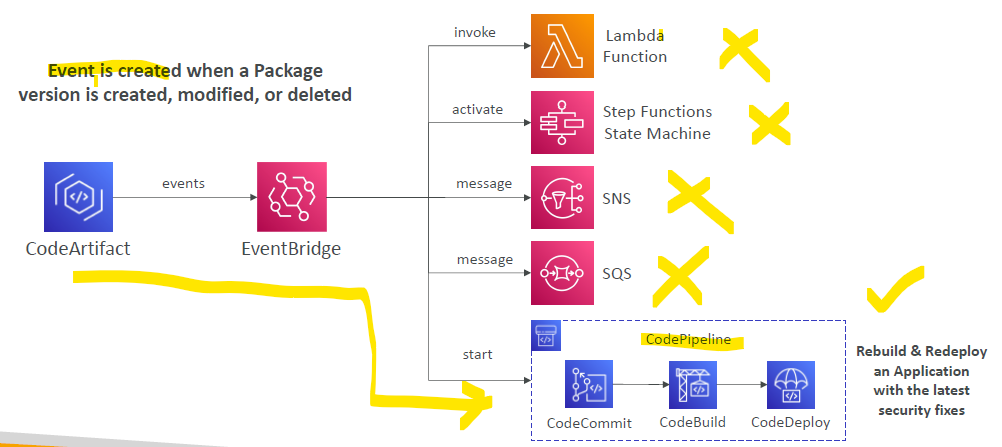

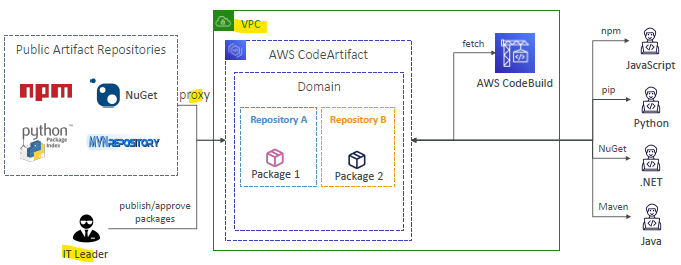

4. AWS CodeArtifact

  • repository-1
  • package-1
  • package-2
  • ...
  • store, publish, and share software packages
  • using nexus repo 👈

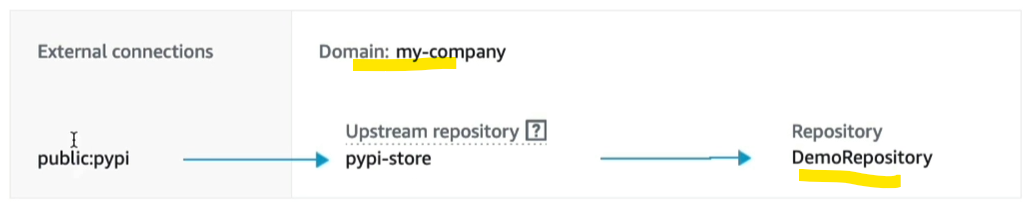

  • proxy to maven, pip, Nuget, npm, yarm, Gradle

  • security: create repo policy

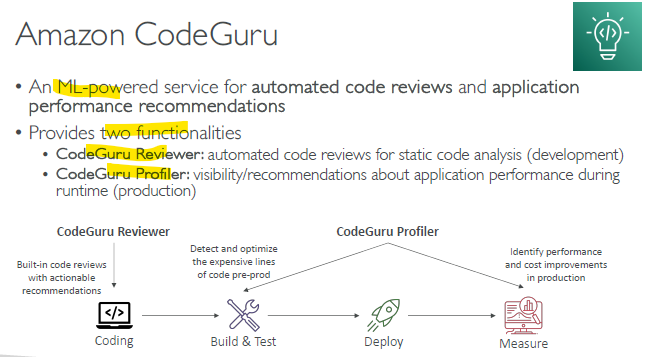

5. AWS CodeGuru : just intro

  • reviewer : looks for every commit and gives recommendation
  • profiler : looks for dynamic metric and gives recommendation
  • using synk scan 👈


extra:

  • CodeGuruAgent config
    • MaxStackDepth
• MemoryUsageLimitPercent
• MinimumTimeForReportingInMilliseconds
• SamplingIntervalInMilliseconds
• MinimumTimeForReportingInMilliseconds
