ECS

A. docker

• 02_docker

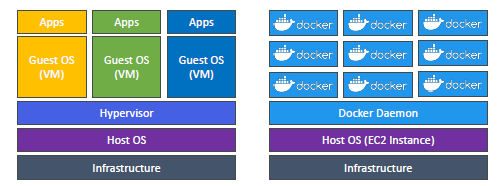

• machine vs virtual machine vs container (partial virtualization : share OS, n/w)
• image --> run on docker-agent --> Container
• docker-demon / container-d
• ecs-agent on ec2-i
• container mgt tool in AWS :
• container orchestration : ecs and eks(k8s)
• image repo : ecr,
• launch type : fargate or ec2
•

---

B. k8s vs ECS

• Analogy with k8s.
• eks cluster - ecs cluster
• worker-node - fargate or ec2 nodes.
• pod(c1) - task(c1) or service[task]
• pod/rs/deployment manifest yaml - task definition -control panel/master node - ?
• service - ALB --> tg --> asg [task-1]
  • desired task = 1
  • max task count = 3
• task schedular - ?

---

C. ECS (elastic container service)

• For fargate launch, don't think underlying ec2-i/s
• Configure ASG to scale out the ECS cluster when the ECS service's CPU utilization rises above a threshold
• configure a target tracking scaling policy
• metric: ECSServiceAverageCPUUtilization

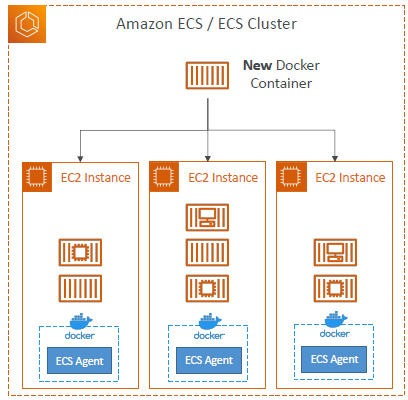

• ECS-cluster (with launch type = ec2)
• EC2-i1 (docker-agent)
  • task-1 (c1)
  • task-2 (c2)
  • ...
• EC2-i2 : task-11, task-22, ...
• EC2-i3 : task-111, task-222, ...
• ...

pricing

• Fargate launch type
• you pay for the amount of vCPU and memory resources that your containerized application requests.
• from the time your container images are pulled
• until the Amazon ECS Task terminates

• rounded up to the nearest second.

• EC2 launch type

• there is no additional charge for the EC2 launch type.
• pay for AWS resources
  • EC2 instances
  • EBS volumes

ECS Demo:(launchtype = ec2)

1 create cluster-1

• launchType : ec2 (worker nodes)
• has ECS-Cluster capacity provider

2 create task-definition-1 : json metadata

• resources
  • os
  • cpu, ram
• task-role(1) : attach to ecs-agent (permission - ecr, cw, ecs)
• task-exec-role(each definition) : attach to task.
• container/s : max 10
  • image uri
  • port mapping
  • container-port
  • host-port:
    • for ec2 launch:: if 0, then get dynamic port and alb finds it.
    • for fargate launch :: not needed.

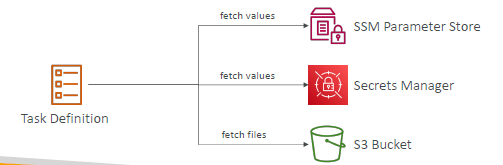

  • env var
  • hardcode
  • read from SSM store / secret manager
  • bulk fetch env file from s3
  •

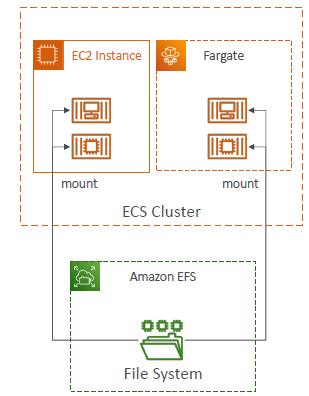

  • storage : EFS or default(21GB EBS)
  • ec2-i storage : bind mount to c1,c2,etc
  • for fargate use ephemeral storage. ?
  •

3 run task:

• task (for job) directly,
• or wrap task with service (for long-running web-app) : srv1:[t1,t2,t3]
  • service name - service-1
  • choose : task-definition :task-definition-1 **
  • Desire capacity : 2 tasks - task-1(c1), task-2(c2)
  • Define networking
  • choose subnet/VPC
  • create sg : allow traffic http,etc --> this will attach to ec2-i or hidden-ec2-i/in-fargate

4 expose task/service

• create ALB-1
• health check for tg
• listener(http:80) --> tg-1 --> [ task-1(c1), task-2(c2) ]
• host-port : if 0, then get dynamic port and alb will find those
•
•

5 Auto Scaling

• create ASG-1 to scale up/down task
• For ec2 launch
• option-1 (ASG-1) : CW --> metric(CPU,etc) --> ASG(task)
• option-2 (ECS-Cluster capcity provider): preferred to use, smart, better.
• For fargate: easy
• ECS-Cluster capacity provider : intelligent to do everything.

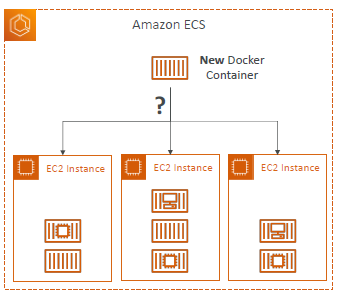

6 task placement (ec2 launch type)

• note: ec2 instance role : add permission to pull image from ecr
•
• statisfy:
• 1 CPU, memory, and port requirements
• 2 Task Placement Strategy
  • Binpack : fill ec2-i1 first, then ec2-i2, etc
  • random
  • spread :
  • Tasks are placed evenly based on the specified value
  • eg: instanceId, az, etc
• 3 Task Placement Constraints
  • distinctInstance : different EC2 instances
  • memberOf : member Of expression (CQL - cluster query language - advance)

    "placemnetConstraints :[
          {
              "type": "memberof"
              "expression" : "attribute:ecs.instance-type =~ t2.*"
          }
    ]


7 ECS networking mode

        #### Bridge Mode (for EC2 launch type)

- Default Docker networking mode.
- Containers share the host’s network namespace but get mapped ports.
- Good for traditional containerized apps but lacks direct IPs.

        #### Host Mode (for EC2 launch type)

- Containers use the host’s network directly (no port mapping).
- Lower latency but can cause port conflicts.

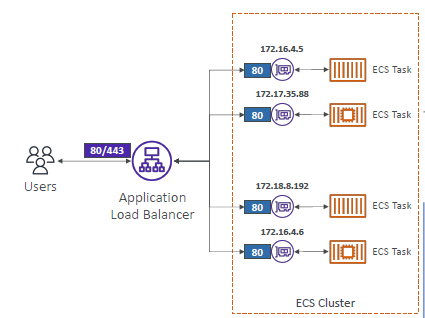

        #### Awsvpc Mode (for both EC2 & Fargate) (Recommended)

- Assigns a dedicated ENI (Elastic Network Interface) to each task.
- Provides full networking features, including security groups and VPC routing.
- Required for Fargate tasks.

        #### None Mode

- Disables networking (containers have no external network access).
- Used for isolated workloads.

READY :green_circle:

• check cluster > task > container, logs/event,
• update service - manually update Desire capacity : 5
• in prod, service Auto Scaling (ASG, ECS-Cluster capcity provider) will do same.

8 update task

• rolling update
• default:
  • min healthy: 100%
  • max : 200%
• more example for understaning:

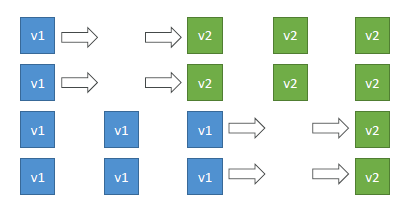

• min : 50% and max: 100%
  •

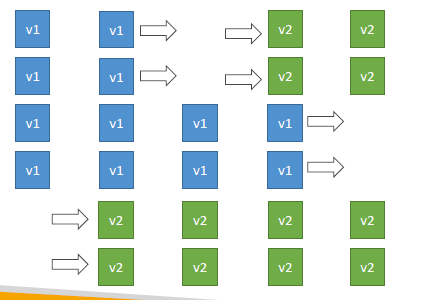

• min : 100% and max: 150%
  •

---

D. screenshot

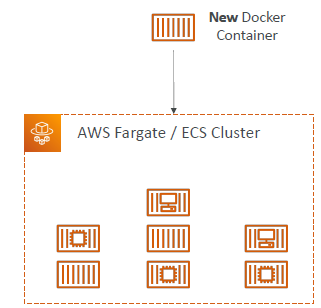

1. launch type:

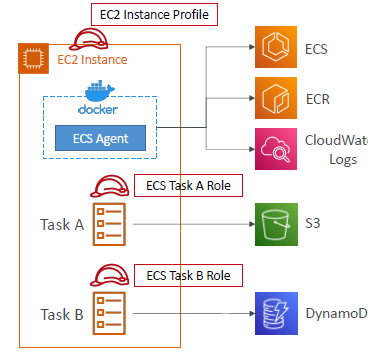

2. iam roles/policies:

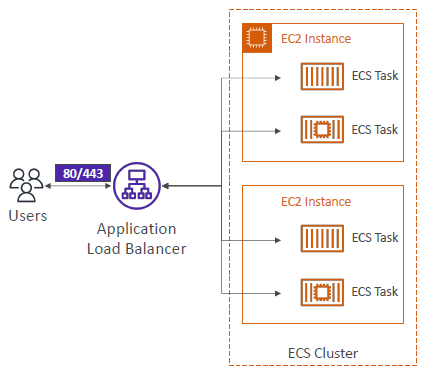

3. alb

4. Storage:

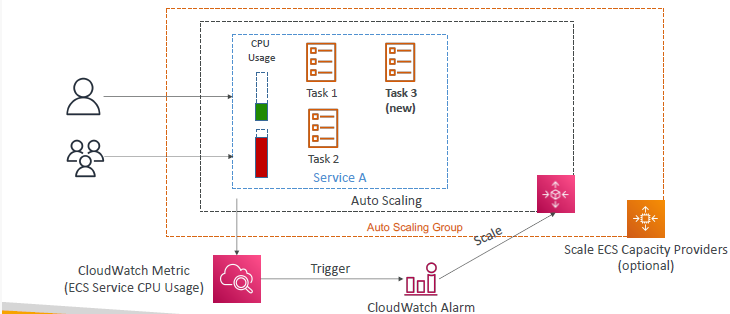

5 scale : ASG + Ecs-cluster capcity provider

---

E. trigger ecs task

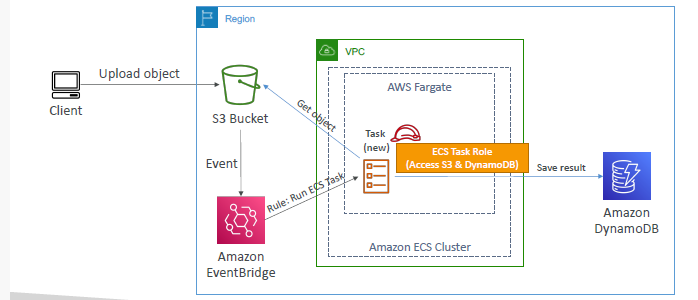

1 with eventBridge ( trigger )

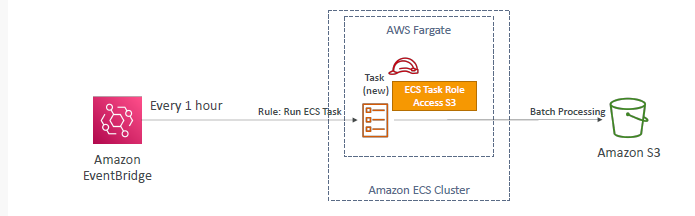

2 with eventBridge ( scheduled )

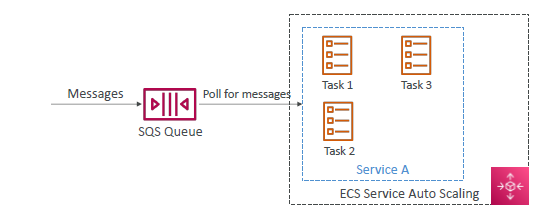

3 with SQS + autoScale

---

F.alerts

---

exam scenarios

• For ECS Anywhere on an on-premises Linux server, you need to install the following agents:

  SSM Agent     – Allows AWS Systems Manager to **manage** the server remotely <<<
  ECS Agent     – Connects the server to the Amazon ECS control plane for task scheduling.
  Docker Engine – Required to run containerized workloads.


• EKS Anywhere:

• Runs Kubernetes clusters on on-premises infrastructure using bare-metal or VMware-vSphere.
• It provides full lifecycle management for Kubernetes clusters.
• bare-metal, Runs directly on physical servers without a hypervisor. || best for cost and performance
• VMware-vSphere, Runs on virtualized infrastructure using ESXi hypervisor.

• https://aws.amazon.com/blogs/containers/introducing-amazon-ecs-anywhere/

• EKS Distro (EKS-D) is

• the open-source Kubernetes distribution used by Amazon EKS.
• It allows you to run self-managed Kubernetes clusters on any infrastructure, including
  • on-premises
  • and other clouds

---

• Deploy ECS on AWS outpost
• better latency and connectivity.
• supports only EC2-launch-type.

---

- ALB and NLB, both supports dynamic port mapping
