Elastic Beanstalk

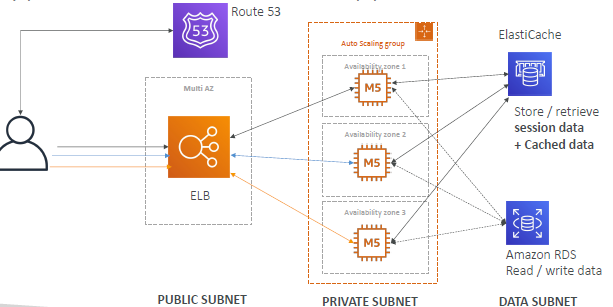

A. Common Web Architecture

B. Intro

• Managed services, deals with:

• Managing infrastructure

  • databases, RDS
  • load balancers, ELB + networking
  • ELB type cannot be changed once provided
  • if ALB, then cannot change to NLB.
  • scaling concerns, ASG
  • Monitoring
  • ...
  • note: create cloudFormation template bts for infra.

• Deploying Code

  • into multiple env,
  • compute:
  • primarly EC2
  • ECS under the hood for container App

• Basically from central place, dealing with all these services, being used commonly for web development.

• developer focus on code
• rest all beanStalk will do infra + deploymnet

C. pricing

• Free
• but pay for underlying infra.

D. Elastic Beanstalk : Application

D.1 Environment/s

• create multiple dev, prod, qa
• can clone env as well
• it represents infra which are running our application version.

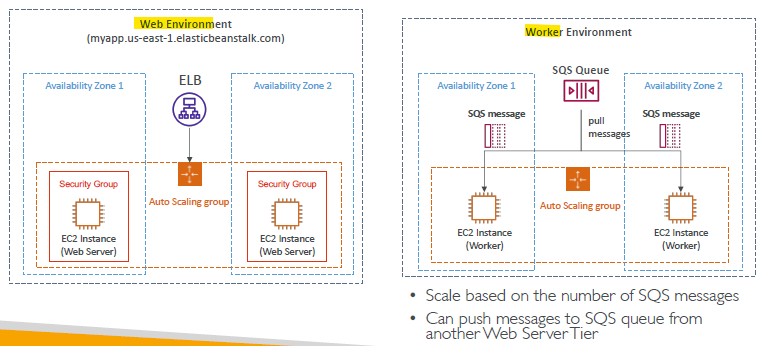

• Type/tier:
• web-server Environment
  • can send traffic to worker
• worker Environment
  • for long-running task,jobs,scheduledJobs
•

D.2 configuration (for env)

• deployment

• deployment mode:

  • 05_2_Beanstalk_DVA-deployments.md

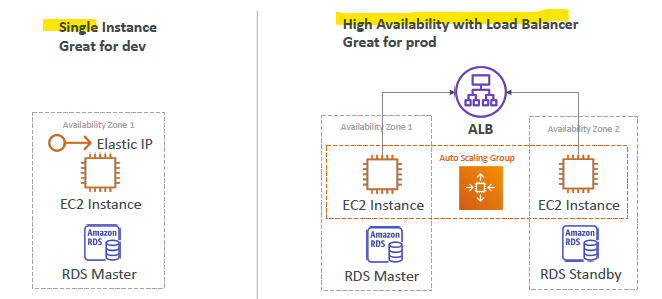

• availability:

  • single instance (with/without using spot)
  • High availability (with/without using spot+od)
  •

• Networking

• choose VPC and subnet
• public IP for ec2.
  • enable for single ec2
  • disable for multiple, since we wil ALB to expose.
• ELB
  • can be shared with all env, to save some cost.
  • security groups

• ASG - min, max, trigger(metric,alarm)

• Database

• DB will get link with beanstalk env lifecycle.

• if env is deleted, database will be deleted too.

• Monitoring

• X-ray
• logs
• metrics

D.3 Application version

• define platform
• language
• runtime : can use Docker
• upload code (zip)
• code, v1
• code, v2
• ...
• code, v1000 (max)
• use s3 bts for storing zip
• Application version lifecycle
• enable it, To phase out old application versions.
• Option not to delete the source bundle in S3 to prevent data loss

---

Z. Hands on

- Create Application
  - create environment : dev
    - choose type/tier: web | worker(job,long-running-task)
  - choose platform : language, runtime,etc
  - code: upload it.
  - deployment mode:
    - single EC2 with ASG
    - high availabilty - multiple EC2 with ASG
  - iam role for permission:
      - `AWSElasticBeanStalkWebTier`,
      - `AWSElasticBeanStalkWorkerTier`,
      - `AWSElasticBeanStalkMultiContainerDocker`
      - ...
  - Skipped and using default
    - Networking
    - Database
    - Monitoring

# === DONE ===

- check cloudFormation stack (composer UI)

- get domain url and use it.
- upload new code, seamlessly.
- check other tab : CW, monitor, mmanged updates, alarms, health, etc
- Check `configuration` link on left
  - show all the configs for env
  - edit them
