A. Elastic Beanstalk : deployments

• mode of deployments:

1. All at once

• fastest deployment
• issue: has downtime
• updates same instance
• ASG-1[ec1-i1:v1, ec1-i2:v1 , ...]
• ASG-1[]
• ASG-1[ec1-i1:v2, ec1-i1:v2 , ...]
•

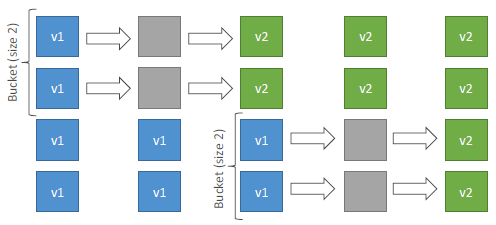

2 Rolling

fixing: downtime - Long deployment - steps: - update same instances at a time (by bucket-size), - once the bucket is healthy, move to next bucket... - - notice: v1 and v1 - both versions are running - issue: - rollback takes time - under capacity

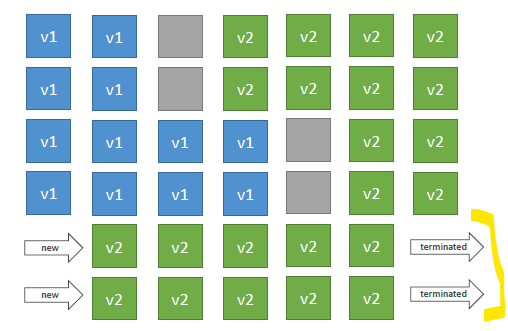

Rolling (with additional batches)

fixing: under capacity - same like rolling, but application is running with desired capacity - becoz of additional batch. - also Small additional cost for a additional batch -

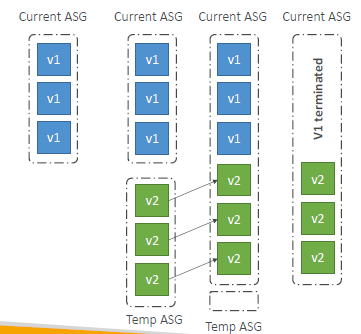

3 Immutable

fixing: rollback time - steps: - spins up new instances in a new temporary ASG, - deploys new version to these new instances, - then swaps all the instances - ASG-1[v1,v1,...] - ASG-temp[v2] --> check health, if ok then rest - ASG-temp[v2,v2,...] - swap: ASG-1[v1,v1,... v2,v2,...] >> [ v2,v2,... ] - - Quick rollback

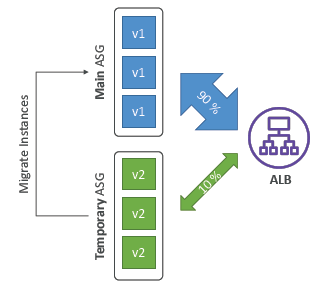

4. Traffic Splitting

fixing : swapping of instance - steps - ASG-1[v1,v1,...] - ASG-2[v2,v2,...] - point ALB to ASG-2 eventually after testing small traffic - very quick automated rollback - -

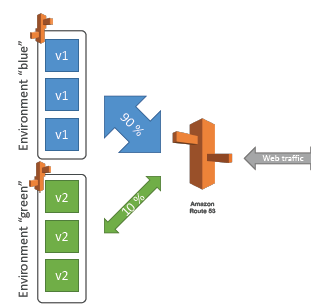

99. Blue Green (not direct feature)

• steps:

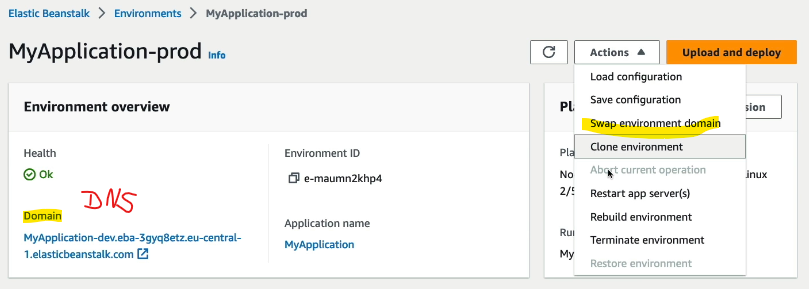

• manually create/clone a new beanstalk stage environment (green)
• deploy new version into green using any of above types(4).
• Traffic Splitting using R53 (dns change)
  • send a small % of traffic to new deployment
• switch over when ready
•
•

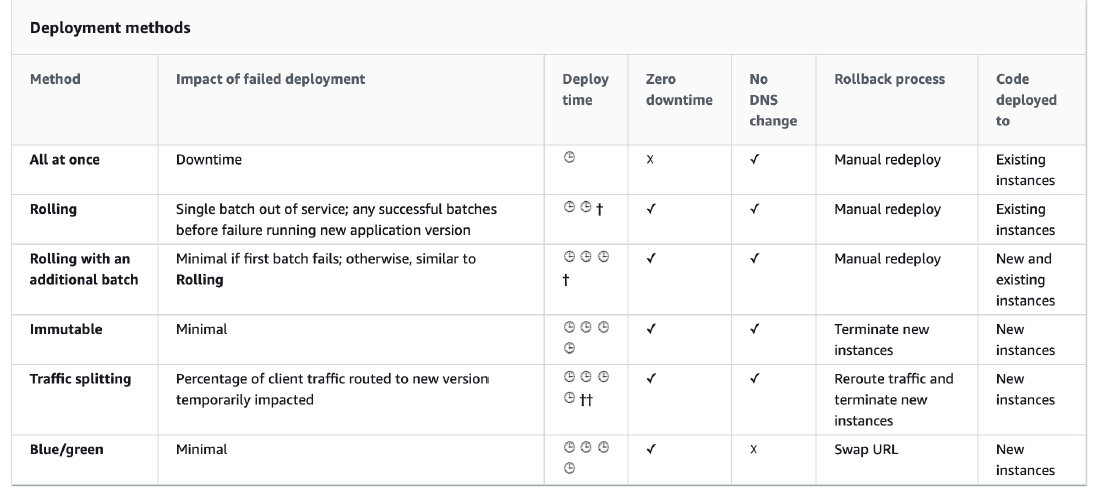

summary

---

B. Elastic Beanstalk : CLI

• not in scope of DVA
• install and gives handy commands

  • eb create
  • eb status
  • eb health
  • eb events
  • eb logs
  • eb open
  • eb deploy
  • eb config
  • eb terminate


---

C. Elastic Beanstalk : Extension

• project-root-dir/
• .ebextensions/
  • yaml-json-content.config. purpose:
  • modify default config
  • add other resource (under the hood use Cloudformation)
    • RDS,
    • DynamoDB,
    • ElastiCache
    • ...

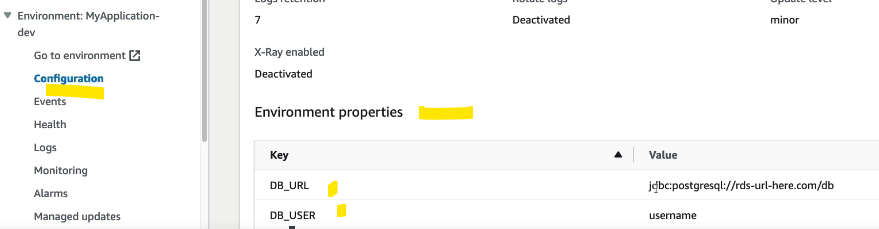

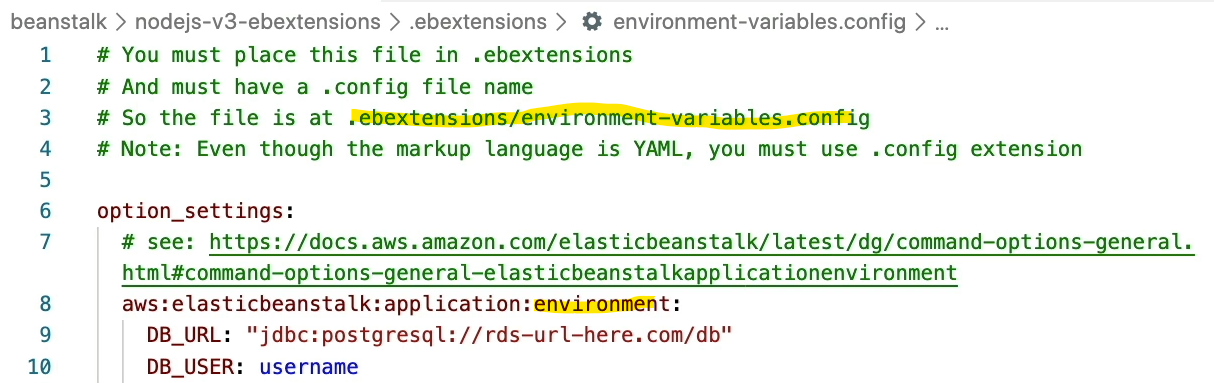

example - set Environment var

---

E. Elastic Beanstalk : Migration (manual)

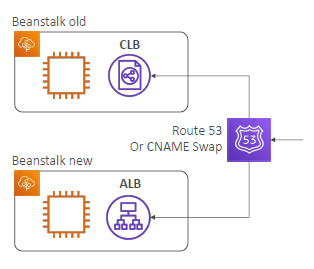

example1: migrate CLB to ALB

fact: ELB type cannnot be change once env is created. - migration step: - create new environment with ALB, manually - deploy code again - DNS swapping to new environment - delete old env - nothing fancy, but that's the only way. -

example2: Decouple RDS

• migration step:
• create new environment
• deploy code again
• DNS swapping to new environment
• delete old env
  • RDS wont be deleted, since delete protection enabled)
• again same step, nothing fancy,
•
•
