ebs,efs,Fxs,snowball

Storage¶

check these 3 aspects:
size (capacity)
iops
- read iops
- write iops
throughput (MB/s)

A. EC2 instant-store (block-storage)¶

Intro¶

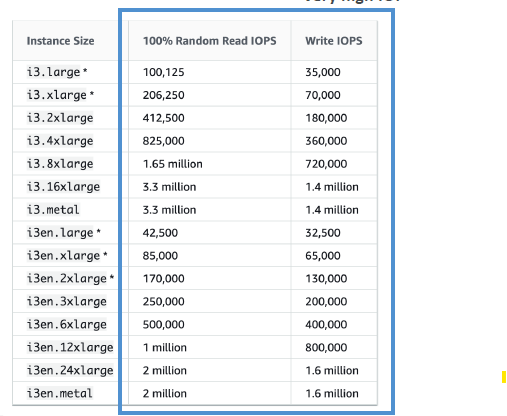

better Read/write iops
high-performance hardware disk
depends on ec2-i family type.
risk of data loss if h/w fails
manual backup
volume size is fixed
determined by the EC2 instance type.
so dont have option to choose custom instant store
fact : AMIs do not preserve instance store data
fixed to host machine
cannot be detached or reattached
can be used as boot volume not preferred
AMI does NOT preserve instance store volumes.
only EBS backed AMI

B. EBS¶

1. Intro¶

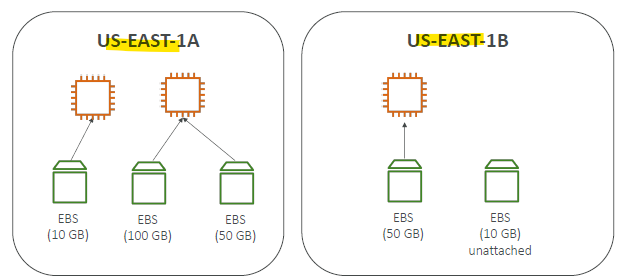

AZ bounded
Have volumes
network drive (bit latency, same az) + limited performance
can be attach/dettach to ec2-i
persist data, even after their termination
only be mounted to one instance at a time. multiple volumes can be attached. 1-2-M
deleteOnTermination
root volume - true
- if disable it on running app - how ? console or api/cli**
additional ebs volume - false
use e2label command to change label name

scenario:

  - ec2-1 root volume > snapshot-1 > created volume-2 > attached to ec2-2 as additional volume
  - vol-1 is root vol for ec2-2
  - re-b0ot ec2-2, it will boot from volume-2, rather than vol-1

2. EBS: snapshot¶

Snapshots are incremental backups
which means that only the blocks on the device that have changed after your most recent snapshot are saved.
point in time snapshot.
no need to detach volumn while taking snapshot, but recommended.

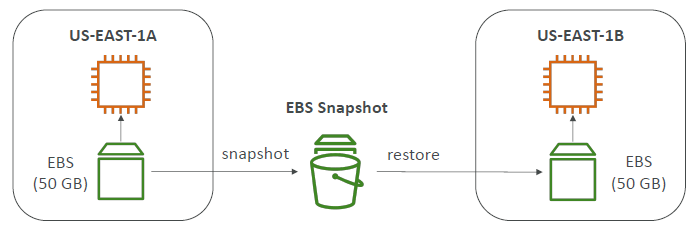

cross az/region restore
Build an AMI, will also create EBS snapshots

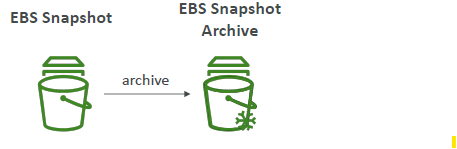

store snapshot to archive tier
75% cheaper, save cost
but restore time 24-72 hrs
accidental delete
setup recycle bin with retention policy (1 day to 1 year)
Fast Snapshot Restore (FSR)

3. Security¶

encrypt at rest, both - volume and snapshot using KMS

4. Types ¶

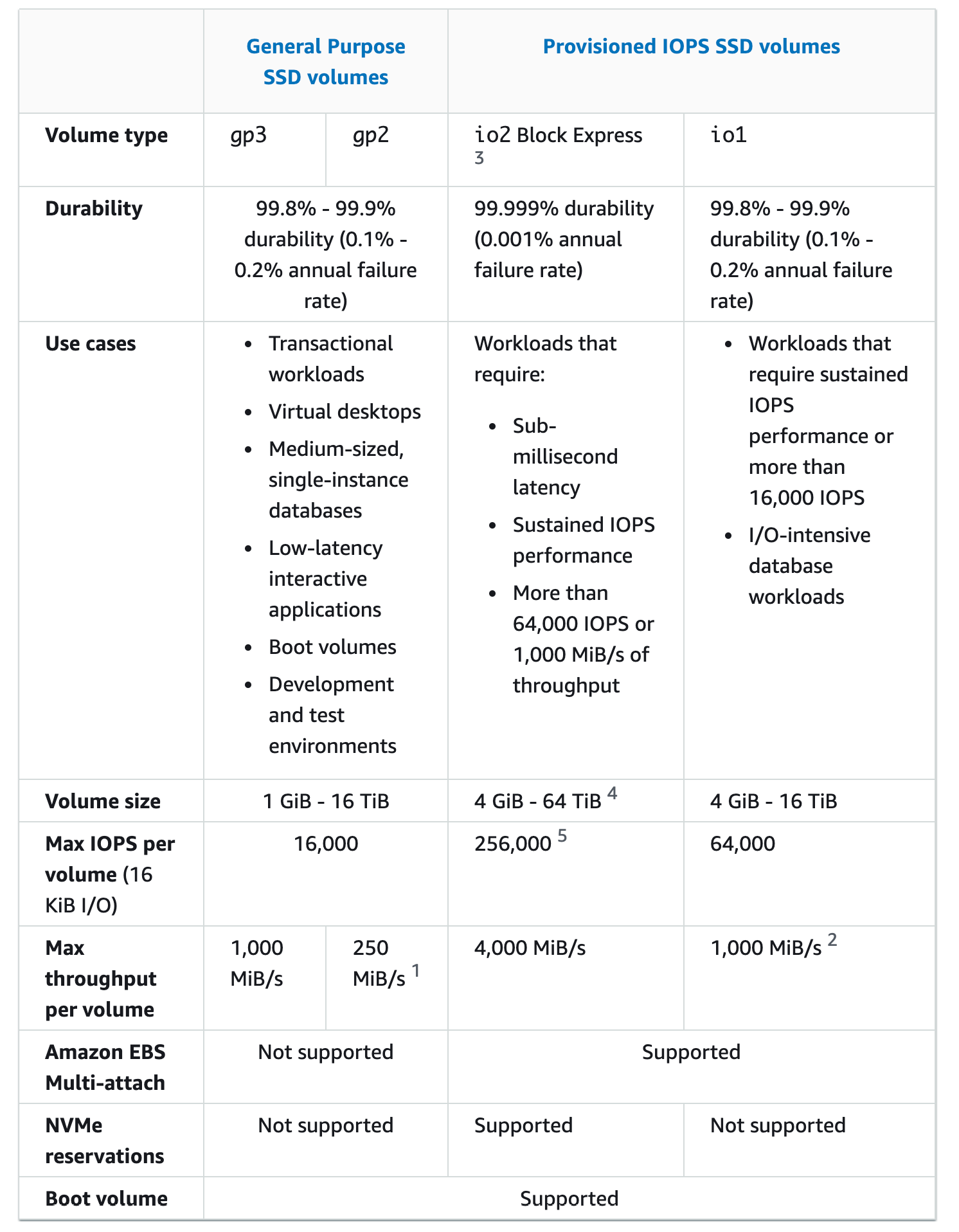

General Purpose SSD
gp2
- size defines iops --> 3 iops / GB
- max --> 16TB | 3K iops | 125 MB/s
gp3
- max --> 16TB | 16k iops | 1000 MB/s
- System boot volumes, Virtual desktops, Development and test environments
- Balanced price/performance for a wide variety of workloads
Provisioned IOPS SSD
io1
- max --> 16TB | 64k iops | 1000 MB/s
io2
- max --> 64TB | 256k iops | 4000 MB/s
- supports multi attach
- max - 16 ec2-i
- databases workloads

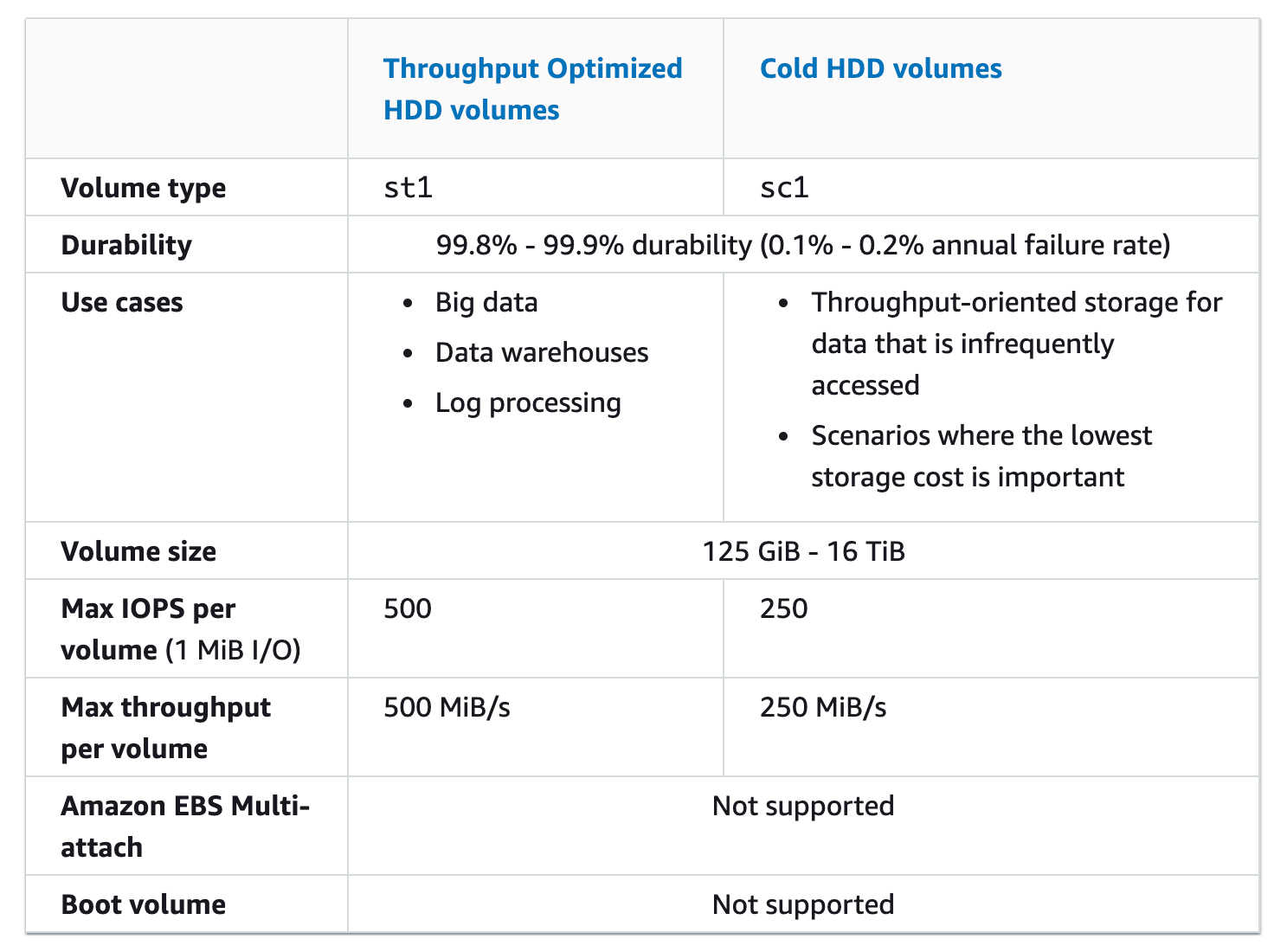

HDD
dont use as boot volume
HDD / Throughput Optimized HDD / st1
- max --> ? | 500 iops | max-500 MB/s
- Big Data, Data Warehouses, Log Processing
cold HDD / sc1
- max --> ? | 250 iops | max-250 MB/s
- data that is infrequently accessed

General Purpose SSD (gp3):
- IOPS: Up to 16,000 IOPS.
- Throughput: Up to 1,000 MB/s.
- Use Case: Balanced price/performance for a wide variety of workloads.

Provisioned IOPS SSD (io2/io2 Block Express):
- IOPS: Up to 64,000 IOPS (io2), up to 256,000 IOPS (io2 Block Express).
- Throughput: Up to 1,000 MB/s (io2), up to 4,000 MB/s (io2 Block Express).
- Use Case: Critical applications requiring high performance and reliability.

Throughput Optimized HDD (st1):
- IOPS: Up to 500 IOPS.
- Throughput: Up to 500 MB/s.
- Use Case: Big data, data warehouses, and log processing.

Cold HDD (sc1):
- IOPS: Up to 250 IOPS.
- Throughput: Up to 250 MB/s.
- Use Case: Infrequently accessed data with lower cost requirements.

C. EFS (regional)¶

Intro¶

distributed across an unconstrained number of storage servers.
grow elastically to petabyte scale.
high availability Managed NFS (network file system)
protocol : NFSv4
file system : POXIS-complaint
3x times expensive than EBS(gp2), because:
no capacity planning
- auto-Scale in Size(PB)
- auto/manual adjust performance.
supports

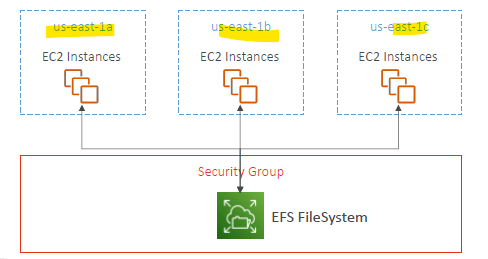

- multi-AZ (Regional)
- single AZ
- attach to multiple EC2 ( Linux based AMI only)
high performance
- Read - 3 GB / s
- Write - 1 GB / s
use case
content management, web serving, data sharing, Wordpress, big data, media processing.

storage class¶

lifecycle policy to move between
standard (with One-Zone option as well)
Infrequent-Access (with One-Zone option as well)
Archive 50% low cost

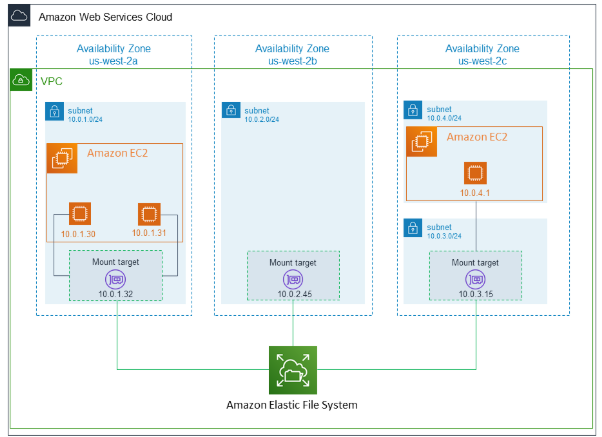

Target Mount ¶

Allows EC2 instances in a VPC to access an EFS file system
not needed for lambda.
not needed for on-prem ( if DX/VPN, is setup)
configure:
Subnet ID
Security Groups
EFS mount targets are:
created per AZ, not per subnet.
EFS is not multi-VPC, use VPC peering
eg: ```text
- tm-1 create for az-1, and for VPC-1
- VPC-1 has 3 subnets for az-1
- VPC-2 has 3 subnets for az-1
- Next, VPC-1 --- peer --- VPC-2
- update security group
- then can mount EFS on ec2 intance of VPC-2 ```

EFS Throughput Modes¶

Bursting Throughput ( default)
throughput scales with file system size
elastic Throughput
throughput scale regardless of size
auto-scale with the best performance. (R/recommended)
provisioned Throughput
manually configure throughput.
If your workloads require even higher and consistent throughput
allows you to specify the throughput you need, independent of the amount of data stored.

EFS Performance Mode¶

general-purpose ( default)
low-latency operations :)
lower throughput
and is not ideal for highly parallelized/concurrent big data processing tasks.
max I/O
Highly parallelized applications and big data workloads that require higher throughput.
supports thousands of concurrent connections and higher I/O operations.
higher latencies
higher throughput

Summary ¶

Category	Option	Description	Best For
Performance Modes	General Purpose	Low latency, limited concurrency, fixed throughput per client.	Latency-sensitive workloads.
	Max I/O	Higher latency, massive concurrency, elastic throughput scaling.	High-concurrency workloads.
Throughput Modes	Bursting Throughput	Default mode; scales with file system size.	Variable workloads with spiky demand.
	Provisioned	Fixed throughput, independent of file system size.	Consistent high-throughput workloads.
	Elastic Throughput	Automatically scales throughput to match workload needs (Enhanced Mode).	Unpredictable or spiky workloads.

Security¶

choose VPC/subnet > add security group.
Encryption at rest using KMS + enable/disable automatic backup

DR¶

EFS cross region replication : enable. preferrered
DataSync also, as alternative.

hands on¶

- Create EFS `efs-1` + efs-sg-1
- Ec2-i1 and i2 : launch instance > attach efs-1
- choose mount location : /mnt/efs/fs1
- aws automatically adds sg
    - ec2-i1-sg : inbound rule : Type:NFS, protocol:TCP, port:2049, source:efs-sg-1
    - similary outbound rule.
- ssh to ec2-i1 and echo "hello" >  /mnt/efs/fs1/hello.txt
- ssh to ec2-i2 and cat  /mnt/efs/fs1/hello.txt

Extra¶

price compare

Storage Class               Price (per GB)

EBS General Purpose (gp3)   $0.08
EBS General Purpose (gp2)   $0.10
EBS Provisioned IOPS (io1)  $0.125
EBS Provisioned IOPS (io2)  $0.125
EBS Magnetic (standard)     $0.05

=== SSD 12 cent , for HDD 5 cent

EFS Standard                $0.30
EFS Standard-IA             $0.025
EFS One Zone                $0.16
EFS One Zone-IA             $0.0133

=== standard 30 cent , IA - 2 cent

Exam ¶

1 need high-frequency reading and writing (20 MB file) max 1 TB total size.¶
EFS with Provisioned Throughput mode
- supports concurrent access
- Provisioned Throughput, Ensures consistent performance for high I/O workloads
DynamoDB
- Not optimized for large file storage & high-frequency writes.
2 EBS volume : automate:¶
every 12 hr screenshot
delete older screenshot
options:
- use event rule schedular > lambda > ...
- use Amazon Data Lifecycle manager **
