SSS - Simple storage service / S3 (Regional)¶

1. S3: Intro¶

by default, the AWS S3 bucket owner has full access to the bucket and all objects within it
infinitely scaling + highly durable + highly available
always return latest version object
Also foundation service
other services use S3 as an integration
main building blocks of AWS
bucket-naming convention
No uppercase, No underscore
3-63 characters long
Not an IP
Must start with lowercase letter or number
Must NOT start with the prefix xn--
Must NOT end with the suffix -s3alias
performance:
latency (low) : 100-200 ms
throughput : 3500-5500 request/sec/prefix (notice per prefix)
upload option
S3 directly - slow/internet
CF-distribution ==> origin:s3
S3 transfer Acceleration (S3TA) - to/from
- Amazon’s high-speed backbone network
- directs traffic to the nearest edge location
- don't need to pay, S3TA failed. (which is additional 4 cent/GB )

2. S3: Usecase¶

Hybrid-Cloud-storage
Archival
Backup (eg: snapshot : ebs,efs,db )
...
hosting
Media,
Static website
Application/Software delivery
DR
cross-region-replication,
move data from region/az to another then restore.
BigData Analytics
run Data lakes in s3

3. S3: Bucket¶

s3://my-bucket/prefix-1/my_file.txt
looks like directory but no-concept-of-directory
bucket type
general-purpose **
Directory (New)
s3-bucket-1 > properties > access log --> choose another bucket-2 and log-format(default)

3.1. Object¶

max size :5TB
can enable version + replication

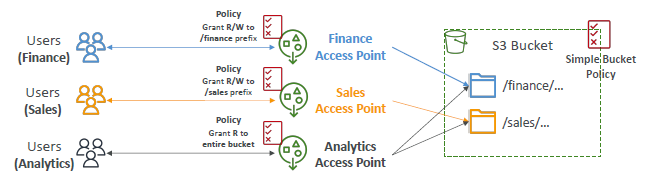

access endpoint¶

expose s3 object as public access endpoint
attach access point policy
select object by prefix
creates dns entry

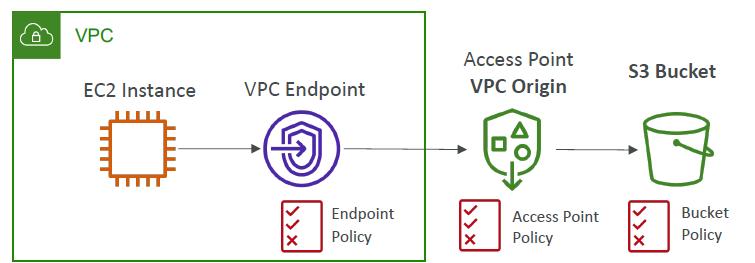

VPC-endpoint --> s3:access-point --> bucket:selected-object

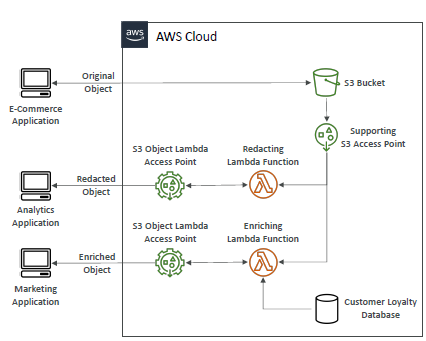

access endpoint (with lambda )¶

once object is fetch want to run some operation on object using lambda.
kind of ETL::transform

pre-signed URL¶

temp access on object
generated from UI/cli a Pre-signed URL and share it
can set expiry

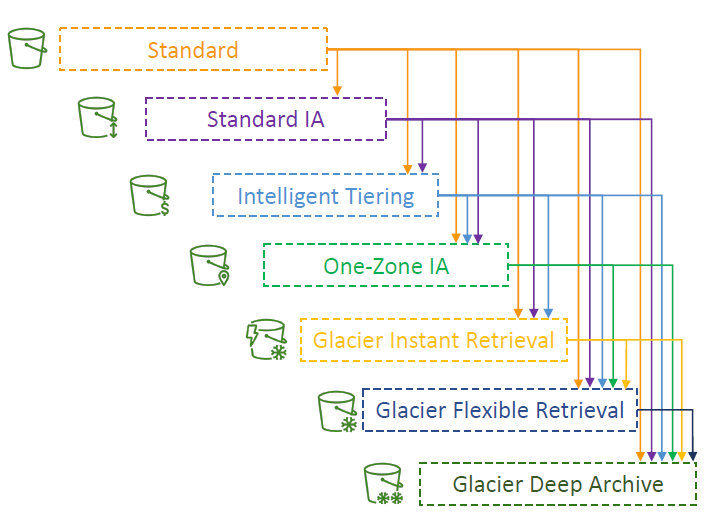

3.2. Object: Storage Classes :green_circle:¶

Amazon S3 Standard / frequent¶

General Purpose
highly durable/available.

Infrequent Access (IA)¶

low cost
usecase - DR-backup/recovery
min storage duration : 30 days

One Zone-Infrequent Access¶

single-AZ, low ava
min storage duration : 30 days
use case - data which can recreate.
20% less than S3 Standard-IA.

Amazon S3 Glacier¶

99.999999999% durability
low storage cost, but :
has longer - min storage duration
plus retrival fee
check below
retrieval mode
Instant Retrieval :
- in ms
- same throughput as in Standard-IA storage classes
- but, min storage duration : 90 days
Flexible Retrieval
- 1-5 min
- 3-5 hr
- 5-12 hr free
- min storage duration : 90 days
Deep Archive
- 12-48 hr free
- min storage duration : 180 days
retrieval policy in aws s3 glacier class for regular and randon retrieval, to save cost ?
No retrieval limit : unlimited, costly
max retrieval limit : set daily limit in GB
free tier : 10% free retrival per month
standard : takes3-5 hours, balanced cost and speed

Amazon S3 Intelligent Tiering¶

move object b/w tier based on (usage + config)
mix of above classes into single
can set up an expiration action (to delete) + transitional actions
tiers
Frequent Access tier (automatic): default tier
Infrequent Access tier (automatic): objects not accessed for 30 days
Archive Instant Access tier (automatic): objects not accessed for 90 days
Archive Access tier (optional): configurable from 90 days to 700+ days
Deep-Archive Access tier (optional): config. from 180 days to 700+ days
more
on bucketObject (standard GP / Standard IA) --> run s3 analytics --> take 24/28 hrs --> CSV report
report gives recommendation
- Standard --> Standard IA
- observes the infrequent access patterns

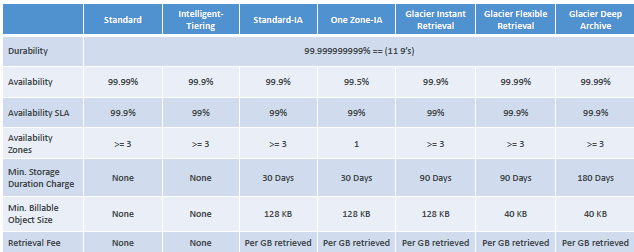

comparison¶

Storage Class                   Price (per GB) === 2 cent

S3 Standard                     $0.023
S3 Standard-IA                  $0.0125
S3 One Zone-IA                  $0.010
S3 Glacier Instant Retrieval    $0.004
S3 Glacier Flexible Retrieval   $0.00385
S3 Glacier Deep Archive         $0.00099

zero-day lifecycle policy ¶

AWS recommends using a zero-day lifecycle policy for cases where you want to move objects to a different storage class
immediately after they are uploaded to standard-s3.
ideal for scenarios like archival storage
will be charged for glacier, not standard-s3

4. S3 bucket: versioning :green_circle:¶

enable for each bucket + UI:showVersion.
can roll back to previous version/s
protect again un-intended delete.
delete:
delete : adds delete marker.
delete marker : undo delete.
UI: show-version > select version > delete the version : permanent deletes.
Once you version-enable a bucket,
it can never return to an unversioned state. (disable)
but can suspend
can apply a retention period to an object version explicitly
specify a Retain Until Date for the object version.
Different versions of a single object can have different retention modes and periods

5. S3 bucket: Replication :green_circle:¶

async
enable versioning
create replication rule
replicate object
replicate delete marker(y/n)
...

facts¶

only new object will be replicated.
for existing old objects , use S3 Batch replication separately.
No chaining
having b1 --> b2 | b2 --> b3
if obj-1 added in b1, it will be replicated to b2 only.

Type¶

SRR (same region replication)
CRR (Cross region replication)
single region keys keys)
- un-encrypted object --> Replicated to region-2
- encrypted object (sse-s3, sse-c) --> Replicated to region-2
- encrypted object (sse-kms) :
- decrypt with key-region-1
- Re-encrypt with key-region-2
  - update custom policy for your specific access.
  - if using default policy : access already given to all principle in same account.
keys multi-region kms key
- un-encrypted object --> Replicated to region-2 : same as abv
- encrypted object (sse-s3, sse-c) --> Replicated to region-2 : same as abv
- encrypted object (sse-kms)
- same key-1 is present in region-1 and region-2
- but s3 will treat then as diff keys
- and, perform decryption and rn-encryption again

6. S3: Job/batch :yellow_circle:¶

Perform bulk operations on existing S3 objects with a single request.
Modify object/s metadata, properties, tags, etc
manual object/s replication
Encrypt un-encrypted objects
Modify object ACLs
Restore objects from S3 Glacier
Invoke Lambda function to perform custom action on each object
S3:job
Define list of Objects
action
optional param
Flow
s3:Inventory > s3:Select > S3:Job > process each object

7. S3: Event Notification :yellow_circle:¶

sends event to target :
s3:event --> sns
s3:event --> Lambda
s3:event --> SQS :: Standard-queue (standard only, not fifo)
...
s3:event --> EventBridge (filtering) --> target(18+ services)
- archive event
- replay event

8. S3: Security¶

At account level can enable/disable public flag

S3 policies ¶

offer more granular and advanced control for access to both buckets and objects.

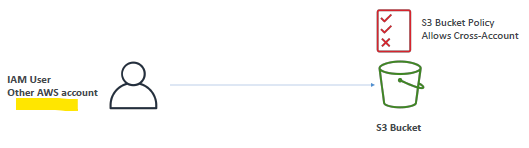

cross Account access
grant users
within your AWS Account
other AWS Accounts
further restrict access to specific resources based on certain condition
request time (Date Condition),
whether the request was sent using SSL (Boolean Conditions),
a requester’s IP address (IP Address Condition),
...

S3 ACLs ¶

simpler/basic permissions(R/W/Full) typically on individual objects
cross Account access
grant users
within your AWS Account
other AWS Accounts - NO

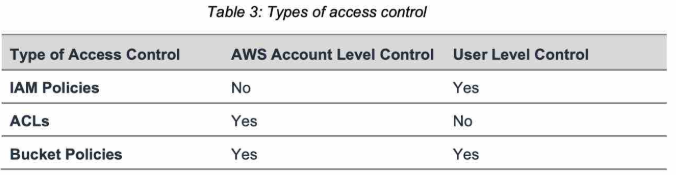

comparison¶

1. encryption¶

At REST¶

server side

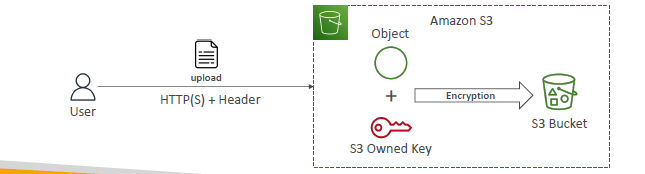

sse-s3 (default) :
- encryption-key provided/owner by aws:s3 ,
- http header : "x-amz-server-side-encryption": AES-256

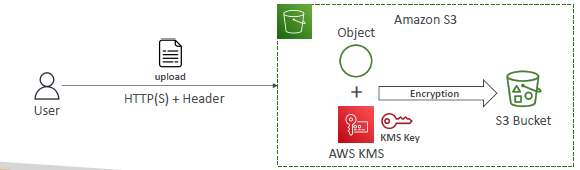

sse-kms
- encryption-key comes from kms
- http header : "x-amz-server-side-encryption": aws:kms
- client create kms-key before.
dsse-kms 2023

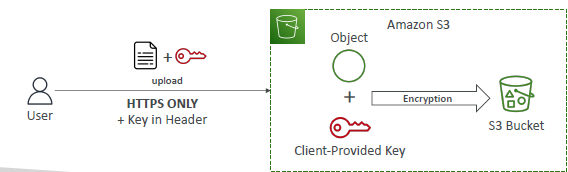

sse-c : customer provide key (outside aws)
- client upload encrypted key

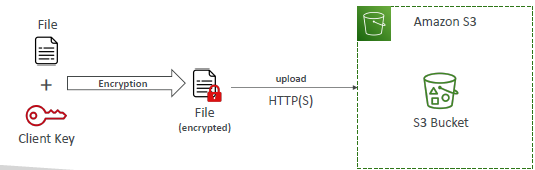

client side encryption
outside AWS
object enc/decr at client end.

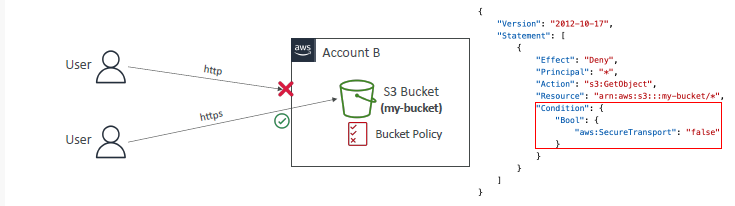

At transit (TLC/SSL)¶

https endpoint --> update bucket policy : deny http
add s3 bucket policy
allow/deny : putObject on bucket-1, condition: secureTransport=true

2. IAM policy¶

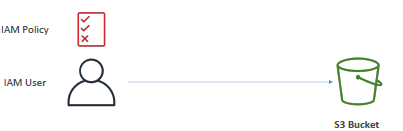

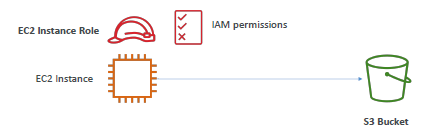

2.1 User-Based IAM polices¶

eg:
lambda role-1 - add permission for s3:*
IAM user - add permission for s3:*

2.2 Resource-Based¶

S3 Bucket Policies
bucket wide rules : effect,principal,Action,resource
eg:
- allow public access
- allow cross account access
- Force objects encryption at upload
- allow/deny : putObject on bucket-1, condition : sse-kms=true
- allow/deny : putObject on bucket-1, condition: secureTransport=true
- ...
ACL
03_S3-3-ACL.md
Object ACL
Bucket ACL

3. S3: MFA-delete¶

with root account enable/disable MFA delete

aws s3api put-bucket-versioning
    --bucket <bucket-name>
    --versioning-configuration Status=Enabled,MFADelete=Enabled    # disabled
    --mfa "arn:aws:iam::<account-id>:mfa/<mfa-device> <mfa-code>"

9. S3: More¶

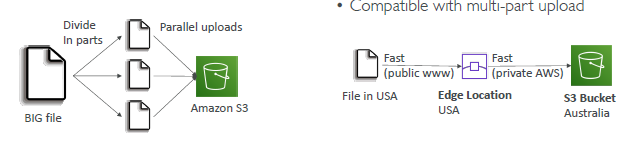

9.1 S3 Transfer Acceleration (S3TA) ¶

speed up content transfers to and from Amazon S3 by as much as 50-500%
for long-distance transfer of larger objects
10 GB+ object up/down globally
internally uses:
fast AWS private global network/edge-locations
CloudFront’s globally distributed Edge Locations and over AWS backbone networks,
upload in multipart
- if 100MB+ use it, recommended for 5GB+
- delete incomplete multi-part

9.2 byte-range fetch (DOWN)¶

parallelize GETS to speed up download. can configure how many bytes to read.

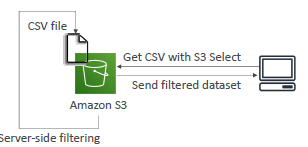

9.3 server side filtering¶

use S3-select + Glacier-Select
maximum length of sql query is 256 KB
filters csv row and column, more like SQL queries.

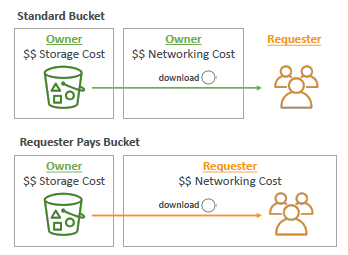

9.4 requester pay¶

network cost on requester

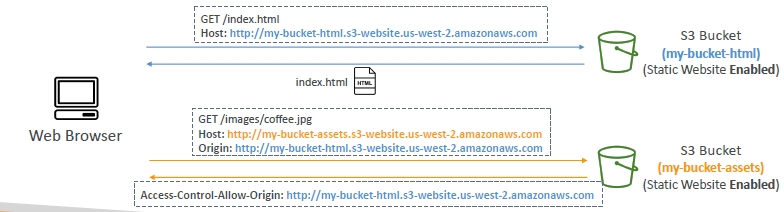

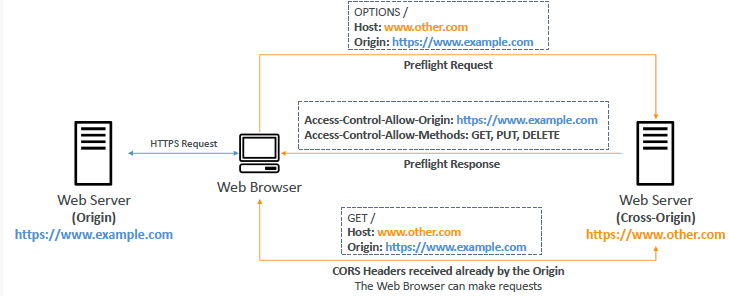

10. S3: static website : `CORS`¶

// SPA
- server-1(ng:SPA) + server-2(api)
- browser --> server-1
- browser(ng)--> server-2(api) --> response:header:access-control-allow-Origin=server-1

// S3 static website
- bucket-1(index.html) + bucket-2(images, other resource, page-1.html)
   - update bucket policies:  getObject for all * prinicple.
- browser --> bucket-1
- browser(index.html) --> ajax::fetch(bucket-2/page-1.html) --> bucket-2 --> will work, only CORS is enabled to bucket-1 as origin

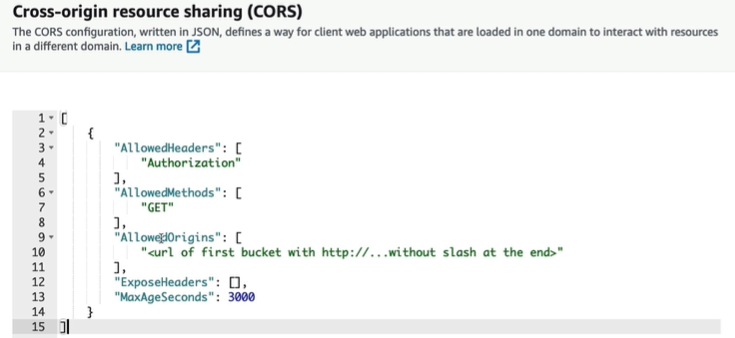

- bucket-2 > permission tab > edit CORS > add json:origin-bucket-1

99. S3: hands on¶

  - create bucket - bucket-1-us-west-2, will be created in all AZ.
  - disable : ACL, , versioning
  - enable : public access + attach BUCKET POLICIES (read from any principle, resource:*)
  - encryption: SSE-S3 *, SSE-KMS, DSSE-KMS
  - upload png file
  - https://bucket-1-us-west-2.s3.us-west-2.amazonaws.com/Screenshot+2024-07-16+002401.png
  - inspect :
      - Open link --> `s3 pre-signed url`, credential-info are encode in url.
      - access with public-url :  failed | ok after making public.
  - static website hoisting : enable on bucket + index.html
    - endpoints: https://bucket-1.s3-website.region.amazon.com

  // Replication
  - create another  buvket-2-us-west-1
  - create replication rule:
    - add target bucket : bucket-1-us-west-2
    - enable versionsing
    - craete new IAM

  // storage classes:

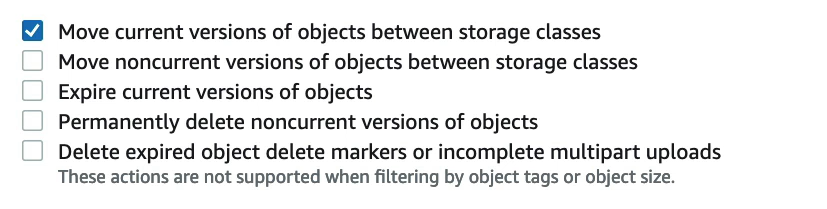

  - bucket-1 > mgt > create Life Cycle rule
    - select object: ALL /  by-prefix/suffix / by-tag
    - create transistion Rule/s
      - rule-1 : move from class1 to clas2 after xxdays
      - ...
      - ...
    - -create deletion Rule/s
      - delete old version/s
      - delete all version/s
      - mark for delete

SSS - Simple storage service / S3 (Regional)¶

1. S3: Intro¶

2. S3: Usecase¶

3. S3: Bucket¶

3.1. Object¶

access endpoint¶

access endpoint (with lambda )¶

pre-signed URL¶

3.2. Object: Storage Classes :green_circle:¶

Amazon S3 Standard / frequent¶

Infrequent Access (IA)¶

One Zone-Infrequent Access¶

Amazon S3 Glacier¶

Amazon S3 Intelligent Tiering¶

comparison¶

zero-day lifecycle policy ¶

4. S3 bucket: versioning :green_circle:¶

5. S3 bucket: Replication :green_circle:¶

facts¶

Type¶

6. S3: Job/batch :yellow_circle:¶

7. S3: Event Notification :yellow_circle:¶

8. S3: Security¶

S3 policies ¶

S3 ACLs ¶

comparison¶

1. encryption¶

At REST¶

At transit (TLC/SSL)¶

2. IAM policy¶

2.1 User-Based IAM polices¶

2.2 Resource-Based¶

3. S3: MFA-delete¶

9. S3: More¶

9.1 S3 Transfer Acceleration (S3TA) ¶

9.2 byte-range fetch (DOWN)¶

9.3 server side filtering¶

9.4 requester pay¶

10. S3: static website : CORS¶

99. S3: hands on¶

10. S3: static website : `CORS`¶
