- https://aws.amazon.com/caching/implementationconsiderations/¶

ElastiCache¶

key-value
if data changing slowly, then have it. eg:
key-value caching
aggregations-results caching
...
AWS offering :
Redis,
MemCache
MemoryDB has Redis like api.
advantages:
sub ms latency.
negative side
need application code changes.
Data may be out of date, eventually consistent.
not suited for un-structured data.
usecase: to significantly improve latency and throughput for:
read-heavy application workloads
- (such as social networking, gaming, media sharing, leaderboard, and Q&A portals)
compute-intensive workloads

A cache use-cases¶

Database Read¶

prg <--- DB (state)
prg (code changes to use cache ) <--- Cache <--- DB(Data) : for stateless Application
- low latency
- high performance
- reduce load off of databases for read intensive workloads
- lazy loading(stale read) and write-through(sync cache with DB)

Maintain user Session¶

B Type¶

1 `Redis`¶

think of RDS, similar
supports advance data structure.
internal:
uses Sets(uniqness) and SortedSets (uniqueness + ordering)
cluster > shard(node group) > node(cache)
One primary Node (choose: ec2 intance type)
select upto 5 Read Replicas to scale reads and have high availability
- Read replica-1 --> az-1
- Read replica-2 --> az-2, etc
- ...
enable/disable: Multi AZ with Auto-Failover, more cost.
- stand-by replica-1 --> az-1
- stand-by replica-2 --> az-2, etc
use case
millions of requests / second for real-time applications
- in Gaming, Ad-Tech, Financial Services, Healthcare, and IoT.
popular choice for :
- caching,
- session management,
- gaming, leaderboards,
- real-time analytics,
- geospatial,
- purpose-built commands for working with real-time geospatial data at scale.
- operations like finding the distance between two elements (for example people or places)
- GEOADD, GEORADIUS, GEODIST
- chat/messaging,
- media streaming,
- and pub/sub apps.

Redis::Demo¶

- Create REDIS (.rdb file)
- Choose : Design youe own cache
    - method : Easy, cluster cache ** , restore(from .rdb)
    - cluster name, password, port
    - maintenece window
    - security : encryption (rest /fly)
    - enable logs
    - tags
    - VPC/subnet
    - redis Engine : vesrion, ec2 instance type, count of Read replica

    === READY ===

    - primary end point
    - reader end point
    - backup/restore

¶

2 `MemCache`¶

No high availability (replication)
Non persistent
No backup/restore
Security: SASL (more advance)
Multi-threaded architecture ?
Multi-node for partitioning of data (sharding) ?
Memcached does NOT offer support for geospatial data.

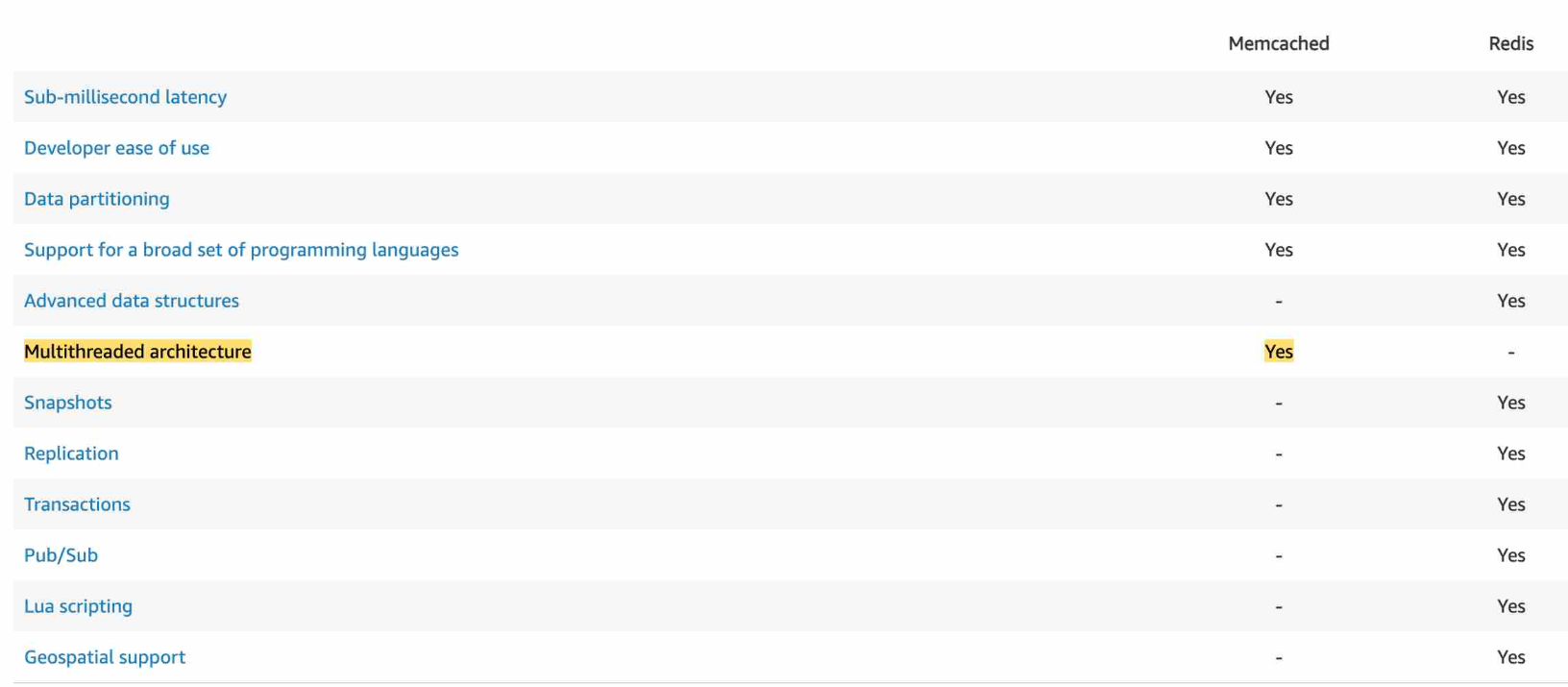

Comparison¶

3 `Memory DB for redis` : intro¶

- Ultra-fast performance with over 160 millions requests/second - Durable in-memory data storage - with Multi-AZ, hundreds of nodes - Scale seamlessly from 10s GBs >>> 100s TBs of storage - Use cases: - web and mobile apps, - online gaming, - media streaming, - …

C strategies ( caching design pattern )¶

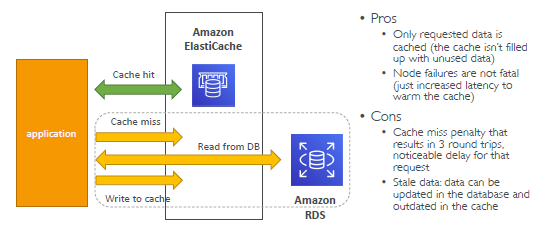

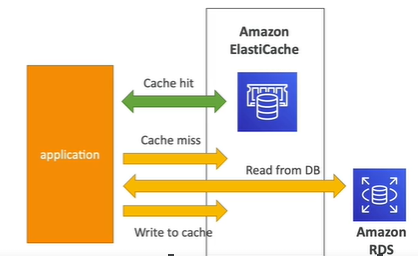

1. Lazy Loading or Population / Cache-Aside¶

- flow for understanding: - hit-1: read from cache : found ok - not found, hit-2: read from db - hit-3: set cache - next: - case:1 Data update on some other api - cache will become stale / inconsistent. - this is drawback. - write-through strategy solves it. next - case:2 new data-1 wrote on DB, by some other api - read data-1 from cache will miss - since cache was updated after write. - write-through strategy solves it. next

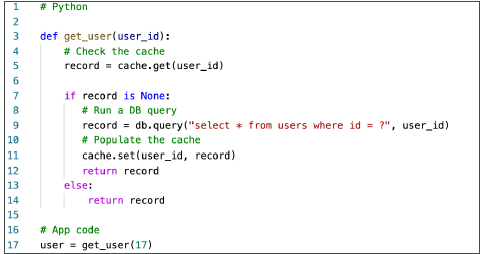

sample psuedo code for understanding:

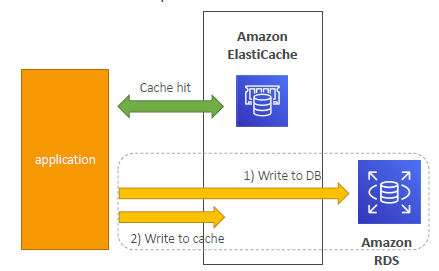

2. write-through¶

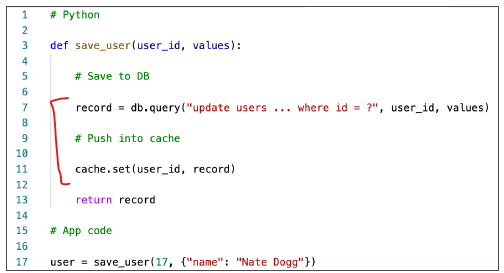

- each write on DB, requires 2 hit: - hit-1: write on DB - hit-2: write on cache - pseudo code: - - drawback: - cache churn: writing lot n lot of data in cache, which will be never read. - cache-eviction and TTL resolves it. next

3. cache-eviction¶

set eviction policy by
LRU (least recently used)
TTL (sec, min, hr, days)
