DynamoDB (serverless)

A. Intro

  • No Sql
  • unstructured
  • rapidly evolve schemas
  • All the data that is needed for a query is present in one row
  • don’t perform aggregations such as “SUM”, “AVG”, …

  • scale horizontally 👈

  • Fully managed

  • no maintenance/patching
  • no db admin

  • no provisioning db

  • high consistent performance DISTRIBUTED database 👈

  • single-digit millisecond performance, at any scale
  • Millions of requests per seconds
  • trillions of row
  • 100s of TB of storage
  • Scales to massive workloads

  • It provides both provisioned (specify RCU & WCU) and on-demand (pay for what you use) capacity modes.

  • Allows event driven programming with DynamoDB Streams 👈

B. Distributed DB (highly available)

Traditional relational DB:

  • Vertical scaling (getting a more powerful CPU / RAM / IO)
  • limited Horizontal scaling
  • increasing Read Replicas.
  • but limited. eg max 16 read replica/s.

1. DynamoDB: Single-region Table

  • table data stored in multiple partitions.
  • hashing algorithm( on PartitionKey) ==> decides which partition to go.
  • partitionKey
  • unique
  • diverse, to distribute data evenly on partition. 👈

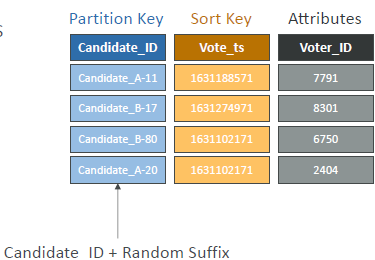

    • add suffix to partition key to make it more n more diverse.
    • this is called write sharding.
    • so use random. calculated suffix.
    • img.png

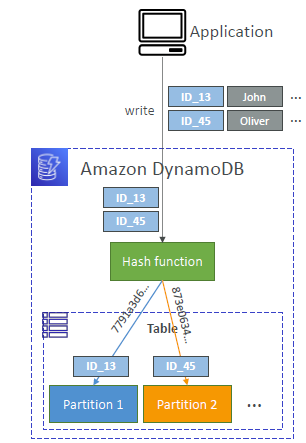

Partition

  • img.png
  • dynamoDB

  • table-1

    • partitions-1 (node-1 in different az/s) <--> 2-way replication b/w AZ/s <--> partitions-1(node-2)
    • both can Read and Write
    • no leader/primary concept.
    • partitions-2
    • ...
    • ...
    • scale out more partition/s

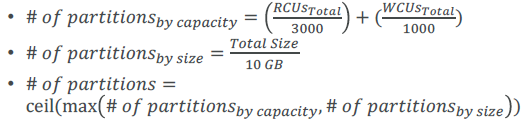

  • Number of partitions

  • img_1.png

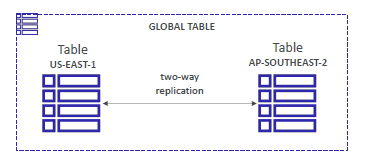

2. DynamoDB: Global Table

  • table-1 (R/W) is region-1
  • table-1 (R/W) is region-2
  • 2-way replication b/w region/s.
  • img_3.png
  • Enable DynamoDB Streams
  • helps to replicate data across replica tables in other AWS Regions

C. DynamoDB streams

  • udemy reference
  • enable it explicitly and select one of below kind:
    • KEYS_ONLY           – only the key attributes of the modified item
• NEW_IMAGE           – the entire item, as it appears after it was modified
• OLD_IMAGE           – the entire item, as it appeared before it was modified
• NEW_AND_OLD_IMAGES  – both the new and the old images of the item
  • internally has same concept of shards, same like in KDS 👈
  • we don’t provision shards, this is automated by AWS

  • 03_01_KDS_KinesisDataStream.md

  • Ordered stream of item-level modifications (create/update/delete) in a table.

  • has 24 hrs retention, so process it or send it somewhere in that window , if needed.

  • read and process by directly Lambda fn

  • send to KDS using kinesis-connectors

    • custom app ( aws-sdk or KCL) - read and process
    • KDA
    • KDF >> redshift / s3 / opensearch
    • lambda fn

  • stream Use cases

  • react to changes in real-time (welcome email to users)
  • Analytics
  • Insert into derivative tables
  • Insert into OpenSearch Service

  • cross-region replication

    • if not using global dynamoDB

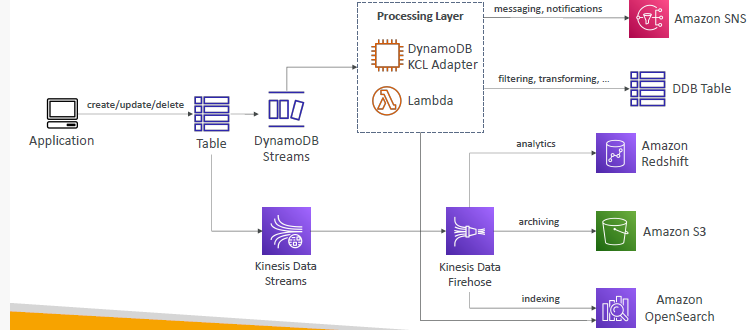

  • common architecture

  • img_2.png

D. Storage

  • max item size : 400 KB
  • storage classes ( like in s3 ):
  • Standard
  • Infrequent Access (IA)
    • to save more cost

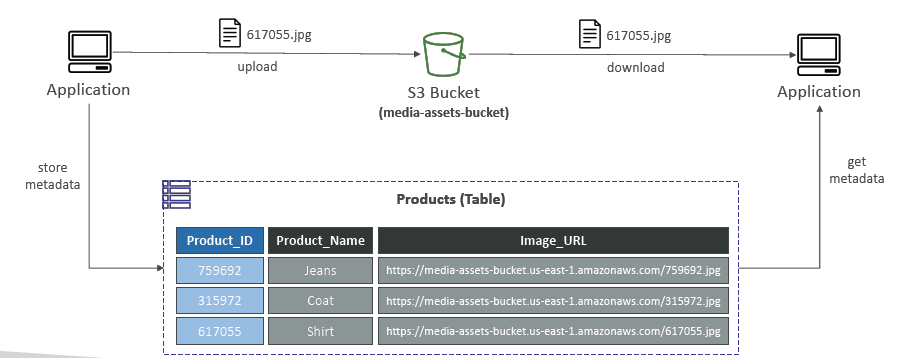

  • storing large object in dynamoDB.
  • use s3 to storage
  • in table store s3 metadata.

E. Security

  • encryption at rest/fly by KMS/TLS
  • Resource-based policy for table.
  • keep traffic inside vpc
  • create vpce / gateway (privateLink)

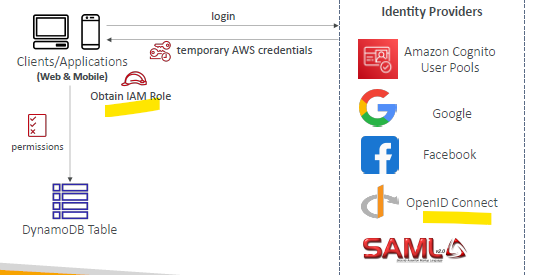

  • Integrated with IAM
  • use Identity provider
  • federated user
  • Assign an IAM Role to federated user with a Condition:
    • to limit their API access to DynamoDB
    • dynamodb:LeadingKeys == partition_key or partition_key_prefix
    • row level access.
    • user can access row with that partition_key
    • dynamodb:Attributes
      {
"Version": "2012-10-17",
"Statement": [
    {
        "Effect": "Allow",
        "Action": [
            "dynamodb:GetItem",
            "dynamodb:Query"
        ],
        "Resource": "arn:aws:dynamodb:us-west-2:123456789012:table/YourTableName",
        "Condition": {
            "ForAllValues:StringEquals": {
                "dynamodb:Attributes": ["name", "email"]
            }
        }
    },
    {
        "Effect": "Allow",
        "Action": "dynamodb:UpdateItem",
        "Resource": "arn:aws:dynamodb:us-west-2:123456789012:table/YourTableName",
        "Condition": {
            "ForAllValues:StringEquals": {
                "dynamodb:Attributes": ["status"]
            }
        }
    },


    {
        "Effect": "Allow",
        "Action": [
            "dynamodb:GetItem",
            "dynamodb:Query",
            "dynamodb:PutItem",
            "dynamodb:UpdateItem",
            "dynamodb:DeleteItem"
        ],
        "Resource": "arn:aws:dynamodb:us-west-2:123456789012:table/YourTableName",
        "Condition": {
            "ForAllValues:StringEquals": {
                "dynamodb:LeadingKeys": "${aws:userid}"
                //"dynamodb:LeadingKeys": "${aws:departid}_*"
            }
        }
    }
]
}

F. DR

  • Automatic backup for last 35 days.
  • take ondemand backup for longer retention.
  • Enable Cross-region copy. no performace impact/ downtime.
  • PITR - point in time recovery

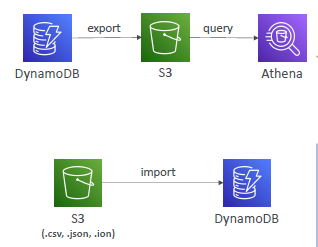

  • export (json,ion) data --> S3.
  • import (json,csv,ion) --> Dynamo DB
  • img_4.png

G. Copying DynamoDB Table (into s3)

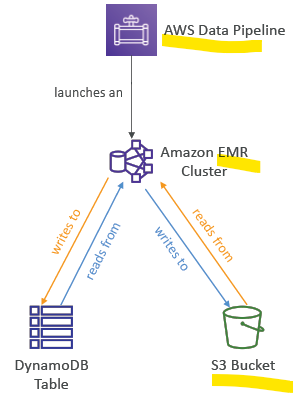

1 AWS Data pipeline (fast)

  • launches EMR bts.
    "EMR" is a cloud-based big data platform that
simplifies the process of running large-scale distributed data processing frameworks like
  - Apache Hadoop
  - Apache Spark
  - ...

2 backup and restore

  • takes time

3 API call

  • scan + putItem
  • BatchWriteItem
  • not recommended, but can do for small table.

H. Migration

  • use AWS DMS to dynamoDB from:
  • MongoDB
  • SQL database : MySQL,Oracle, etc
    • de-normalize
    • convert to item

I. Architecture example:

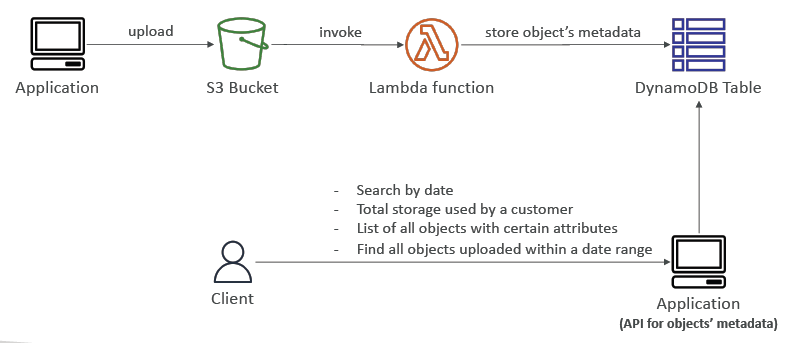

  • use dynamoDB for indexing S3 metadata.
  • img_1.png
  • img.png
