DAX (DynamoDB Accelerator)

Intro

  • in memory cache for DynamoDB
  • It caches the most frequently used data,
  • thus offloading the heavy reads on hot keys of your DynamoDB table,
  • hence preventing the ProvisionedThroughputExceededException exception.
  • 10x performance improvement.
  • micro sec latency
  • fully secured
  • DAX is compatible with DynamoDB API call
  • hence won't require an application refactoring

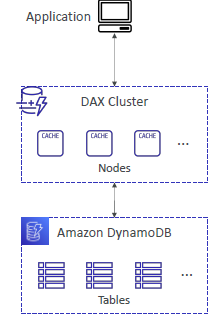

provision DAX cluster

  • udemy reference
  • img.png
  • node size : min 3 nodes recommended in prod.
  • can add more later.
  • node family : r-type / t-type
  • can't change later
  • network setup
  • VPC-1
  • subnets-1/2/3
  • sg-1
    • allow inbound from port 9111 or 8111 in the sg of application (elb, ec2, etc) 👈
  • spread nodes in multi-AZ
  • IAM role
  • access to dynamoDB
  • ...
  • setup parameter group
  • TTL (item)
  • DONE, get cluster URL and use in app.

use case

  • to fix hot key problem
  • specific key read too many time, giving throttleError
  • then cache that item in DAX
  • cache has TTL (5 min default)
  • millions of requests per second to DynamoDB, causing performance issue.
  • Add DAX on front.

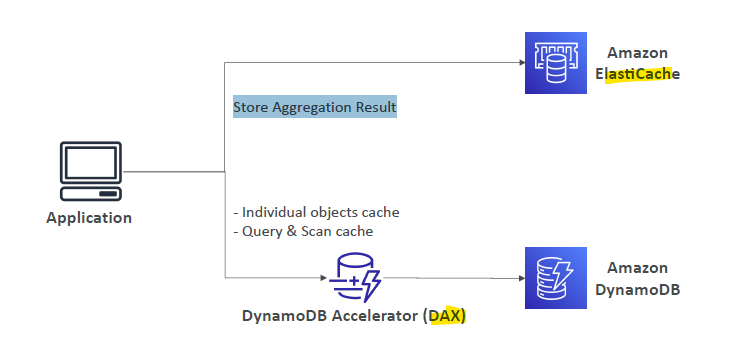

Architecture example

  • img.png
  • usinf DAX and ElasticCache, both.
