ELB (regional)

• DNS name : XXXX.region.elb.amazonaws.com
• public IP might change
• https://docs.aws.amazon.com/elasticloadbalancing/latest/application/introduction.html
• SSl/TLS
• X.502 === TLS certificate (private key, bodt, chain)
• SNI (Server Name Indication)
  • resolves multiple certificate load problem.
  • allows to expose multiple HTTPS applications each with its own SSL certificate on the same listener.
• cpmplex service, AWS manages its underlying infrastructure outside your VPC.

---

1. Proxy server with additional feature

• sits b/w client and backend-server. hides the backend server's IP address.

• forwards client requests to the appropriate backend server based on configured rules in balanced distribution way.

• Content-Based Routing (url, queryparam,etc)
• gateway : offers a synchronous decoupling of applications
• client Session Stickiness
• Enforce stickiness with cookies
• integrated with ACM, WAF to add security.
• Termination of SSL/TLS at the ELB level
• allowing it to decrypt and inspect incoming traffic before forwarding it to the backend instances.
• separate public-traffic and private-traffic
• also act as reverse-proxy
• it forwards client requests to backend servers and sends responses from those servers back to the clients.

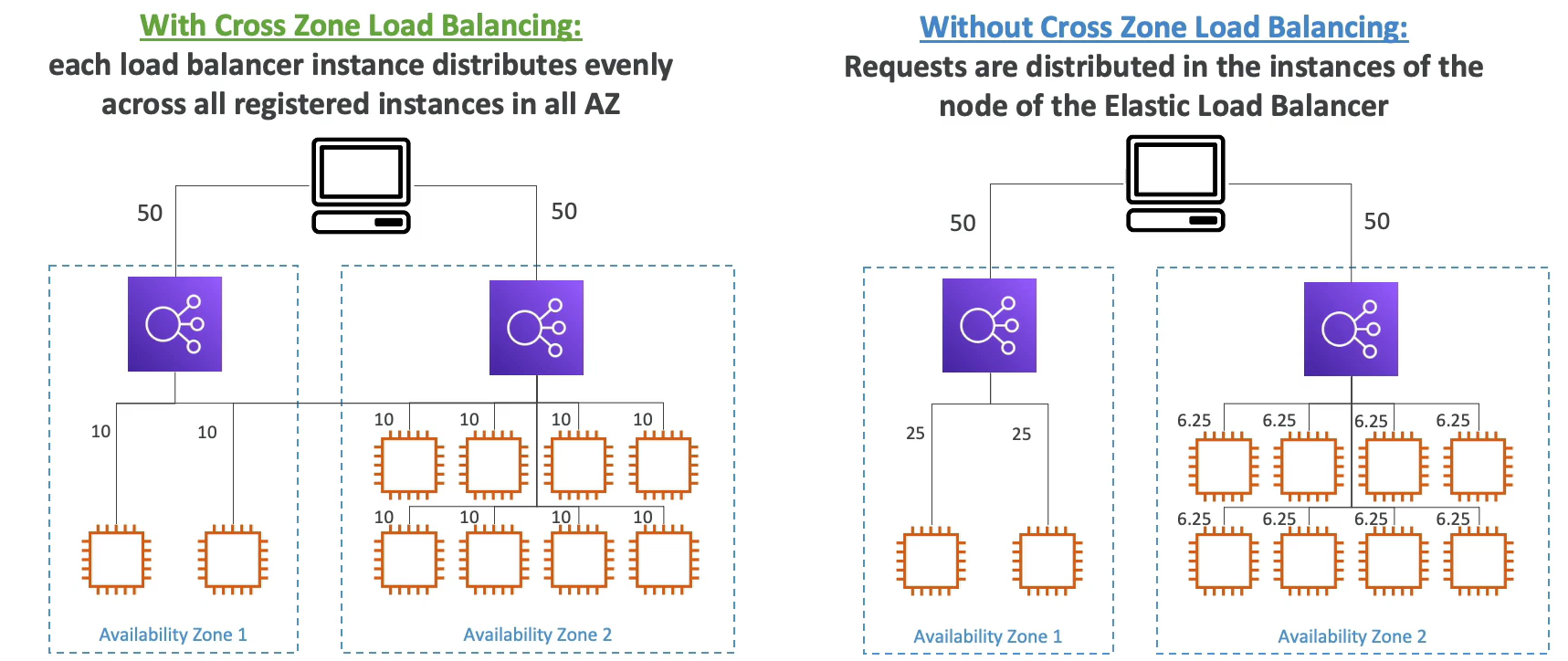

2. Cross-Zone Load Balancing

• mutli-AZ(span over AZs), forwards traffic to multiple ec2 in different AZs.
• if az-1 has more instances running, most traffic must forward to az-1
•

3. health-check

• At tg-level. forwards traffic to healthy tg.
• Grace Period : helps to avoid premature health check failures.
• impaired status of EC2
• OS check, n/w status failed on Ec2 - failed
• ASG marks unhealthy, replace it.

5. integration

• WAF
• ACM
• cert-1 for domain-1
• cert-2 for domain-2,
• ...
• SNI helps to load single Cert.
• route-53 (internet) + Global-Accelerator (aws private n/w)
• Cloudwatch

6.Client Stickiness with cookies

• storing session data on ec2-i/tg
• may create imbalance
•
• alternative approach
• use stores session data on elastiCache with TTL.
• 03_ElastiCache.md

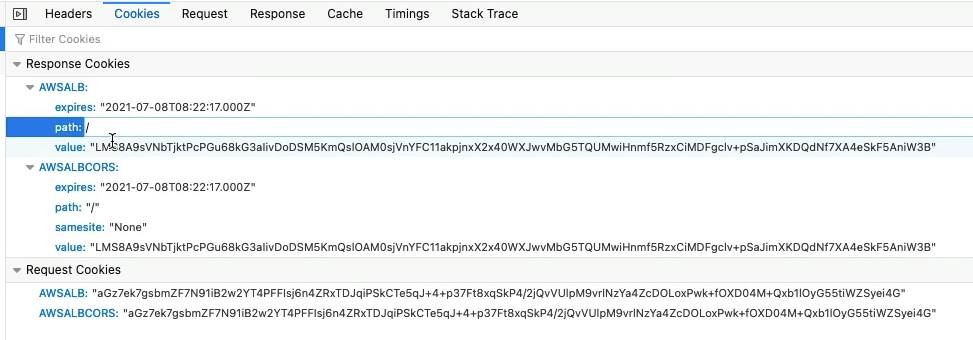

• cookies:
• ELB generated :AWSALB, AWSALBAPP, AWSALBTG
• Application based : MY_TG_1_COOKIE, etc

---

7.Types (3)

• Classic LB (deprecated)
• ALB
• operate at layer 7 : HTTP,HTTPS, websocket
• network LB
• operate at layer 4 : TCP, UDP, TLS
• very low latency, fast
• million of request
• gaming
• gateway LB (in 2020)
• provides advance security
• check more detail below:

---

7.1 ELB : ALB - Application LB (layer 7)

• example flow:
• HTTP/S request comes client with IP-1 to ELB
• ELB has integration ACM, WAF, etc
• adds extra header in http : X-forwarded-for : client ip
• rewrites the destination IP address

• forward HTTP to

  • target-group (one or many)
  • redirect
  • fixed-http-response

• target-group

  • LB >> tg [EC2-I1, EC2-I3,...] : VM
  • LB >> tg [VM-1 [docker-1, docker-2, ...]] : containers
  • LB >> tg [lambda-1, lambda-2]
  • LB >> tg [ip address] : on-prem server IPs

Listeners with content-based routing

• listens incoming traffic and appli forwarding rule and forward to tg

• content-based routing

  • path based
  • route/path/url-1 --> tg-1
  • route/path/url-2 --> tg-2
  • ...
  • query-param
  • /url-1?plateform=mobile --> tg-1
  • /url-1?plateform=desktop --> tg-2
  • ...
  • host based
  • *.mycorp.com --> tg0
  • subdomain-1.mycorp.com --> tg1
  • subdomain-2.mycorp.com --> tg2
  • ...
  • HTTP header-based routing
  • HTTP method-based routing
  • Source IP CIDR-based routing

• Cross-Zone Load Balancing : free, enable for ALB

registration delay

• (old name : Connection Draining)
• feature of load balancers that ensures active requests are completed before instances are deregistered / terminated
• prevents disrupting in-flight requests and ensures a smooth user experience
• default : 300 sec / 5 min : allow 5 min to drains
• max : 3600 sec / 1 hr
• make 0 to disable

• if low like 5 sec, then:

  • ec2-i will terminate fast, and all active clients session might lost,
  • and assign to new instance on subsequent req.

• Security group

• 2 level of SG:
  • sg-elb-1
  • sg-ec2-i1

---

7.2 ELB : NLB - Network LB (layer 4)

• fast: handles millionsOfReq/Second.
• ultra-low latencies
• automatically scales to handle the vast amounts of incoming traffic
• operates at layer 4
• TCP, UDP, TLS
• cannot facilitate content-based routing like in ALB
• health-check support multiple-protocol : http, https, TCP
• expose a fixed IP to the public web
• Security group NO

• alternatives:

  • so add sg to EC2-i or tg
  • or add network access control lists (NACLs)

• use-case

• applications that need fixed IP addresses. AWS assign static-IP to ALB, one for each AZ.
• ideal for TCP/UDP Applications.
• microservices architectures.

• gaming and streaming services.

• NLB target group

• ELB/ALB
• EC2 instances

• IP Addresses

• Cross-Zone Load Balancing : disable by default, paid

• scenario #1 :highly available architecture for a ASG [ bastion hosts ec2-i ]

---

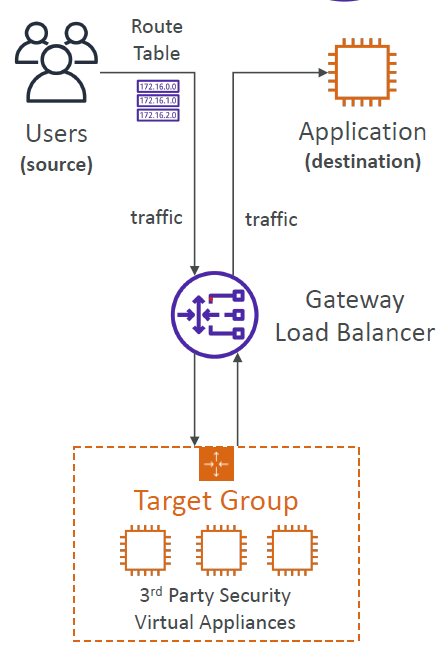

7.3 ELB : GWLB - gateway LB (layer 3)

• (layer 3 of OSI) IP packets.
• 3rd party security instance:
• Deep packet inspection
• payload manipulate
• ...
• uses protocol-GENEVE, port-6081
• Cross-Zone Load Balancing : disable by default, paid
•

---

hands on

ALB

    - Launch `ec2-i1` and `ec2-i2`, add sg-1 to both.
      - sg-1 : allow traffic ONLY from below `elb-sg-1`
    - create target group - `tg-1` + /health/ + http:80
    - Creat ELB - elb-1, elb-dns-1
      - choose AZs
      - add `elb-sg-1` : all public traffic
      - add Listener & Routing :
        - Listener-1::No-contion : outside traffic on http:80  --> forward to --> `tg-1`
        - Listener-1::consition-1 (priority-100) : path, header, queryparam, etc. [TRY] --> tg-x
        - Listener-2::No-Condition (priority-200)  on https:443 --> forward to --> tg-2 + make sure ACM has Cert for tg-dns name.
        - ...
        - ...
        - Note:rule with higestest priorty win
      - hit dns-1
      - terminate ec2-i1 and hit elb-dns-1 again.
