A network fundamental¶

1 cidr¶

CIDR/IP-range : base-IP/fixed-bit (0-32)
0.0.0.0/0 or ::0 - Any traffic in internet.
Private IP
10.0.0.0 – 10.255.255.255
- 10.0.0.0/8 : in big networks,
- 10.0.0.0/28 - will use
- 10.0.0.0/16 - will use
172.16.0.0 – 172.31.255.255
- (172.16.0.0/12) AWS default VPC uses this.
192.168.0.0 – 192.168.255.255
- 192.168.0.0/16: Home n/w

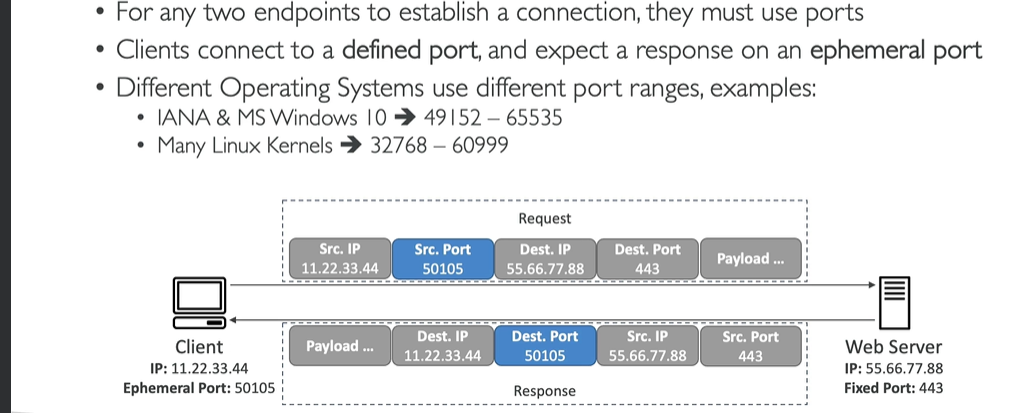

2 ephemeral port¶

ephemeral port
random port client open, to receive response on that port from server.

B. VPC ( Regional)¶

1. fact¶

ec2>eni>sg === ec2>sg
s3 upload : ingress traffic

2. Intro¶

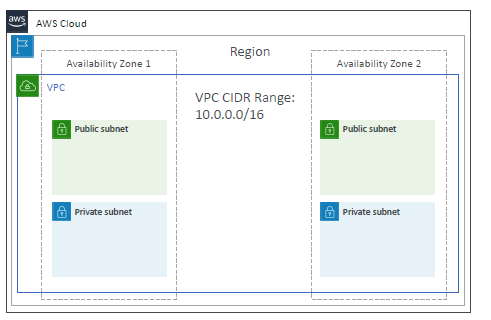

max: 5-VPC in a region with non-overlapping CIDR.
single VPC can have max 5-CIDR
CIDR min **/28 = 32-28 = 4 --> 2^4 = 16
CIDR max **/16 = 32-16 = 16 --> 2^16 = 65,536
private resource : referring only private IPs ranges.
route table rtb vs security group sg
sg allow/deny traffic
rtb helps in forwarding , routing allowed traffic.

3. Default VPC : walkthrough¶

3.0 `tenancy` for EC2¶

console >> VPC Settings >> Tenancy dropdown >>
Default **
Dedicated
tenancy(in VPC) sets the baseline, and tenancy (in LT) cannot downgrade it.
- host >> dedicated >> default

3.1 CIDR¶

CIDR-1 : 172.32.0.0/16
CIDR-2,3,4,5
Add these once IPs are exhausted in your VPC.

3.2 subnet (found 4)¶

4 az === 4 subnets
each has it own IP CIDR.
first 4 and last IP are reserved (5-resevered in each subnet)
first: network address
2:reserved - VPC router
3:reserved - DNS
4:reserved - future use
last:reserved - network broadcast address, (not supported currently)

3.3 Route table¶

vpc - associated with main-rtb
subnet-1 : associate with main-rtb, or create new rtb
subnet-2
...
1-2-1 mapping
destination
0.0.0.0/0(internet),
subnet-CIDR
vpc-CIDR
custom-cidr
...
target
igw, nat-g/i, local, vpc-peer, vgc, cgw, dxg, transient-gateway
VPC-endpoint, s3-gateway, dynamoDb-gateway
IPv6 routing

3.4 Network ACL (NACL)¶

similar to SG/Firewall, another layer of traffic check at subnet level
Inbound + outbound rule (with weight/priority) for allow/deny traffic
stateless
inbound rule is checked > allow/deny
if allowed > response came > outbound rule is checked > allow/deny
ACL rules
1-32,766 (high to low precedence), use increment of 100.
first matching rule, drive decision.
* last rule, denies a request.
thus, Does not execute all rule, once executed a matching high priority rule, it stops.

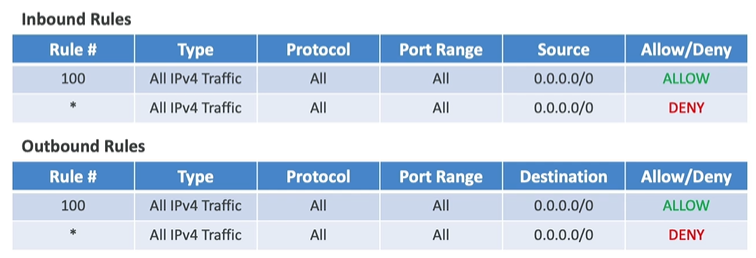

default rule
allows everything in/out
don't change it, rather create new ACL and associate with your subnet.
subnet 1-2-1 ACL

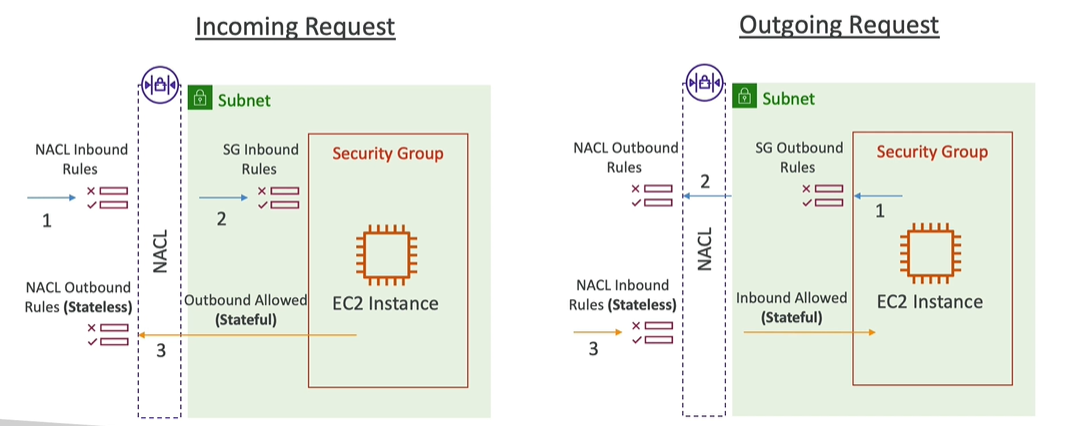

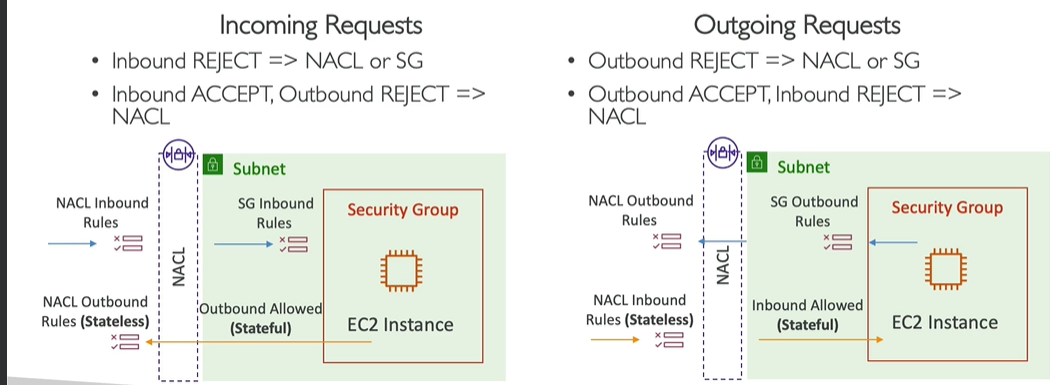

sg vs ACL¶

Operates at the instance level | subnet level
Stateful| Stateless: return traffic must be explicitly allowed by rules (think of ephemeral ports)
allow rules only | allow/deny rules
All rules are evaluated | Rules are evaluated in order (lowest to highest) and first match wins.

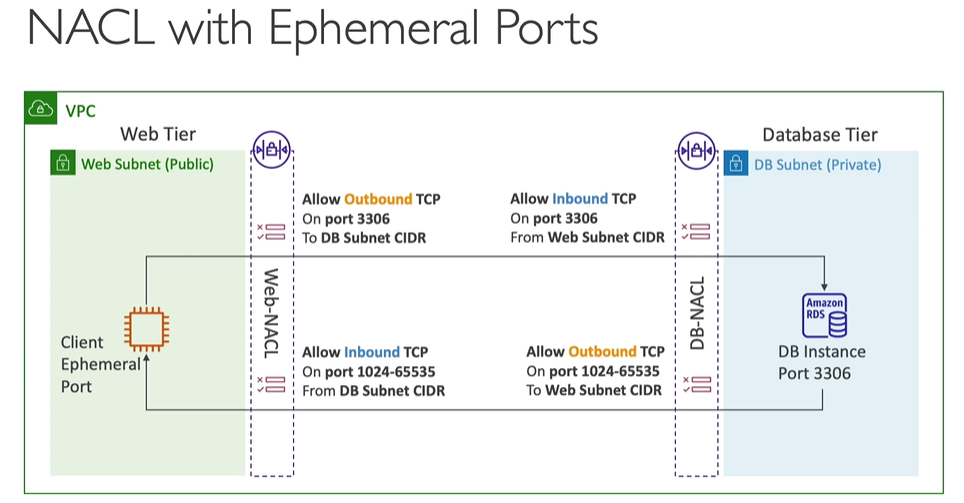

NACL with ephemeral port range¶

4. IGW¶

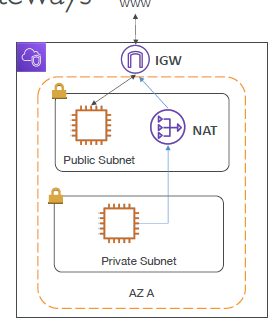

5. NAT¶

03_VPC-2-NAT.md
Bastian host
NAT instance (outdated after 2020)
NAT gateway

6. Dual-stack mode VPC¶

can not disable Ipv4, but enable Ipv6 ( for all public in AWS) 3.8*10^38
ec2-i will have both:
private IPv4
public IPv6
so if IPv4 is exhausted, even though soo many IPv6 available, will still get exhausted error.

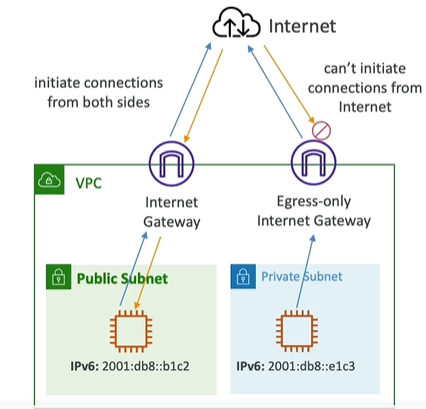

7. Egress-Only Internet gateway¶

used only for Ipv6
note: update rtb ::0 | Egress-IGW

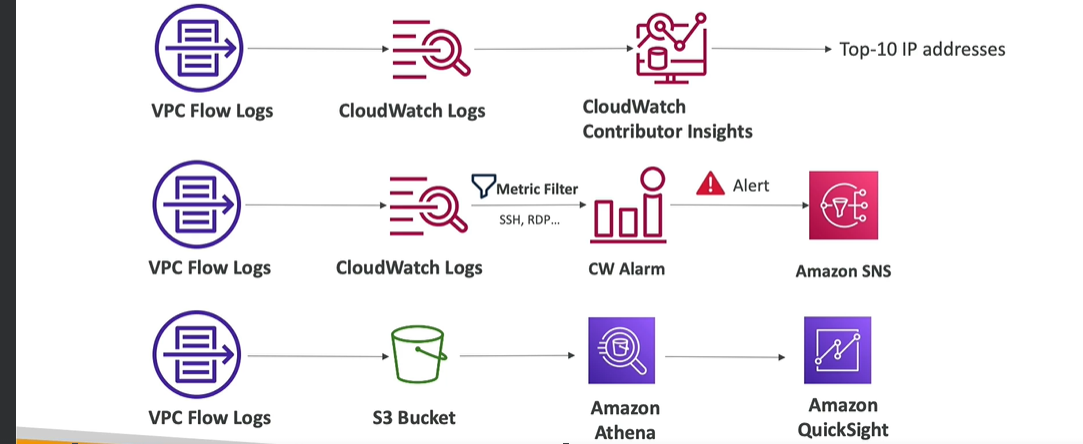

8. VPC Flow Logs¶

log level : VPC | Subnet | ENI
destination :
S3 >> athena
- CloudWatch
- CW::metric >> CW::alarm >> sns
- KDF (collect data stream) , not KDS
- ...

hands on:

- create flow log -1 and give it S3
- choose type of traffic : ALL, allow, deny
- to : s3 (bucket-name-1)
- choose format :keep default
- role-1 : give s3 permission
- check logs (perform complex analysis > give it athena)
  -eni-1.log
  -eni-2.log. ...
  - Attena:
    - choose query result loc: bucket-name-1-result
    - ...

- create flow log -2 and give it CW
- choose type of traffic : ALL, allow, deny
- to : cloudwatch (log-group-1)
- choose format :keep default
- role-2 : give CW permission
- check logs --> create metric > alarm > SNS

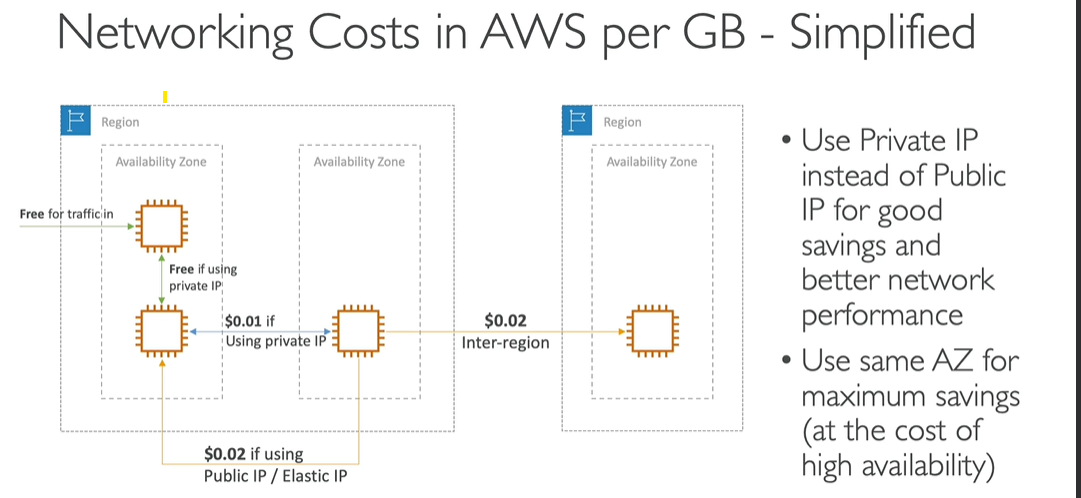

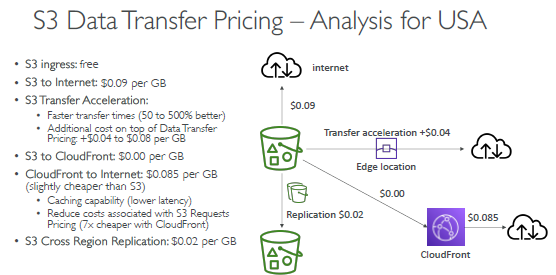

9. pricing (per GB)¶

if 2 DB are in same AZ, replication cost will be less, but availability will be less.

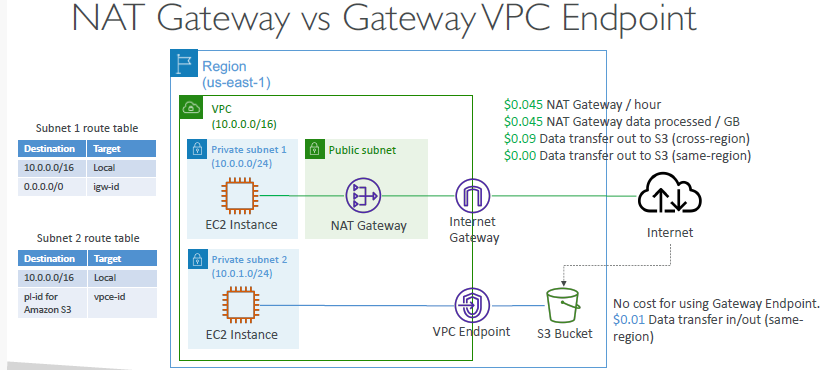

refer VPC-endpoint(s3-gateway) 1 cent

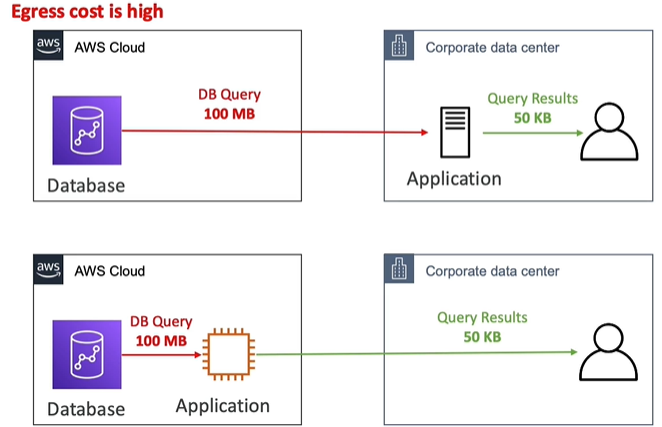

ingress - free
choose AWS direct location, close/same as your location/region-AZ

Service/Feature	Pricing
VPC Peering	Intra-region: $0.01/GB, Inter-region: $0.02–$0.09/GB
AWS Transit Gateway (TGW)	$0.36/hour per attachment, $0.02–$0.05/GB data transfer
NAT Gateway	$0.045/hour, $0.045/GB for outbound data
Elastic IP (EIP)	Free for 1 associated IP; additional/unused: $0.005/hour
VPN Connections	$0.05/hour per VPN connection, standard data transfer rates apply
Traffic Mirroring	$0.015/GB
Endpoints (PrivateLink)	Interface Endpoints: $0.01/hour + $0.01/GB, Gateway LB Endpoints: $0.0035/GB
Data Transfer	Intra-AZ: Free, Inter-AZ: $0.01/GB, Inter-region: $0.02–$0.09/GB
Interface Endpoints	$0.01/hour per endpoint + $0.01/GB
Gateway Endpoints	Free
---

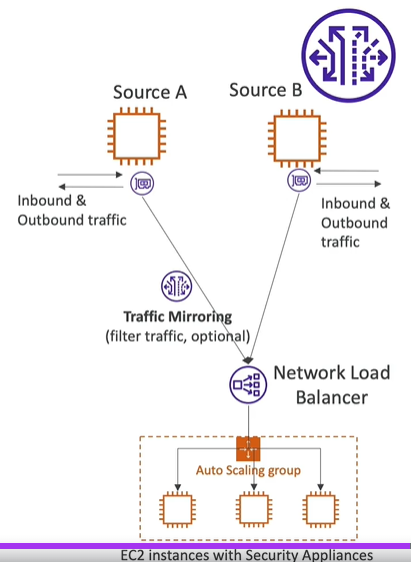

## 10. Traffic Mirroring
- Steps/use-case:
- capture traffic (from Specific `source ENIs`)
- route/send to `ELB/NLB` or `target ENI`
- ec2-i(security appliance)
- perform inspection (threat monitoring, etc)
-

11. topolgies¶

03_VPC-4-tolologies.md
on-prem VPN
- client gateway
aws vpc
- virtual gateway
- Dx gateway
- Transient gateway
s2s + cloudHub

99. handson: create new VPC¶

region - us-west-2

vpc-1 : https://us-west-2.console.aws.amazon.com/vpcconsole/home?region=us-west-2#VpcDetails:VpcId=vpc-04ce2894d2f99bbb8

- edit CIDR : add IPv6 cide.
- For Internet access:
  - create `igw-1` (igw-0ee888f95b632848e, internet gateway) to vpc-1 and `attach` to vpc-1
  - create `nat-ec2-i1` (NAT - network access translation)
  - create `ngw-1` ( NAT gateway) : pending
- route table:

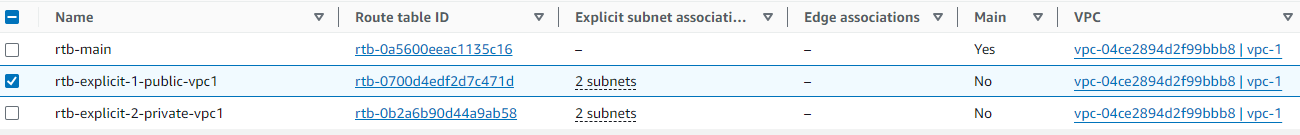

  - `rtb-main` : gets created automatically with vpc.
    - will automatically get associated underlying subnet/s, if not attached to any explicit rtb.
  - `rtb-explicit/s` : can create and association to subnet.
      - create `rtb-explicit-1-private-vpc1` , routes:

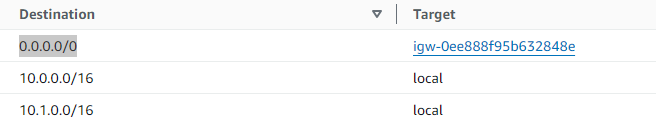

        - destination: internet(0.0.0.0/0) --> nat-instance-1 [nat-i](03_VPC-2.md) ==> give internet access (without exposing ec2-i)
      - create `rtb-explicit-2-public-vpc1` , routes:
        - destination: internet(0.0.0.0/0)  --> igw-1 ==> give internet access.
        - VPC private CIDR --> local (within VPC)

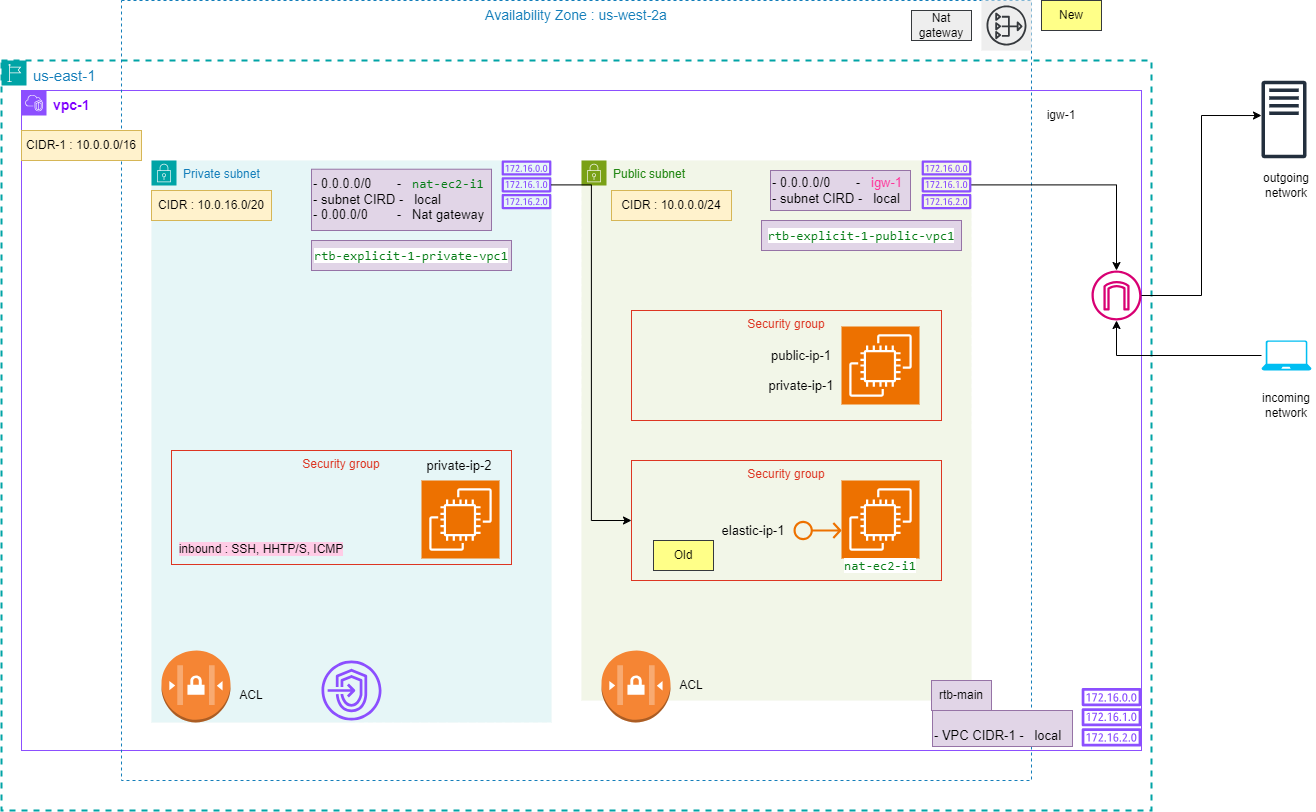

        - ![img.png](../99_img/vpc-1/img.png)
  - `relation`:
    - VPC <--1-to-1--> rtb-main
    - underlying subnet/s <--1-to-1--> rtb-explicit/s or rtb-main:default
  - ![img_1.png](../99_img/vpc-1/img_1.png)

- add `subnet`
  - az-1 (us-west-2a)
    - vpc-1-subnet-`private`-1-us-west-2a
      - link with rtb-explicit-2-private-vpc1.
    - vpc-1-subnet-`public`-1-us-west-2a
      - link with rtb-explicit-2-public-vpc1.
      - contains: `ACL`+ Ec2-i1(public IP-1)
      - edit CIDR : add `IPv6` CIDR block + enable: assigning IPv6.
        - update `sg/acl` rule for IPv6
        - update `rtb` with ::0 (IPv6 anywhere)
  - az-2 (us-west-2b)
    - vpc-1-subnet-`private`-2-us-west-2b
      - link with rtb-explicit-2-private-vpc1
    - vpc-1-subnet-`public`-2-us-west-2b
      - link with rtb-explicit-2-public-vpc1

100. Summary¶

CIDR – IP Range
VPC – Virtual Private Cloud => we define a list of IPv4 & IPv6 CIDR
Subnets – tied to an AZ, we define a CIDR
Internet Gateway – at the VPC level, provide IPv4 & IPv6 Internet Access
Route Tables – must be edited to add routes from subnets to the IGW, VPC Peering Connections, VPC Endpoints, …
Bastion Host – public EC2 instance to SSH into, that has SSH connectivity to EC2 instances in private subnets
NAT Instances – gives Internet access to EC2 instances in private subnets. Old, must be setup in a public subnet, disable Source / Destination check flag
NAT Gateway – managed by AWS, provides scalable Internet access to private EC2 instances, when the target is an IPv4 address
NACL – stateless, subnet rules for inbound and outbound, don’t forget Ephemeral Ports
Security Groups – stateful, operate at the EC2 instance level
VPC Peering– connect two VPCs with non overlapping CIDR, non-transitive
VPC Endpoints – provide private access to AWS Services (S3, DynamoDB, CloudFormation, SSM) within a VPC
VPC Flow Logs – can be setup at the VPC / Subnet / ENI Level, for ACCEPT and REJECT traffic, helps identifying attacks, analyze using Athena or CloudWatch Logs Insights
Site-to-Site VPN – setup a Customer Gateway on DC, a Virtual Private Gateway on VPC, and site-to-site VPN over public Internet
AWS VPN CloudHub – hub-and-spoke VPN model to connect your sites Direct Connect – setup a Virtual Private Gateway on VPC, and establish a direct private connection to an AWS Direct Connect Location
Direct Connect Gateway – setup a Direct Connect to many VPCs in different AWS regions
AWS PrivateLink / VPC Endpoint Services:
Connect services privately from your service VPC to customers VPC
Doesn’t need VPC Peering, public Internet, NAT Gateway, Route Tables
Must be used with Network Load Balancer & ENI
ClassicLink – connect EC2-Classic EC2 instances privately to your VPC
Transit Gateway – transitive peering connections for VPC, VPN & DX
Traffic Mirroring – copy network traffic from ENIs for further analysis
Egress-only Internet Gateway – like a NAT Gateway, but for IPv6 targets

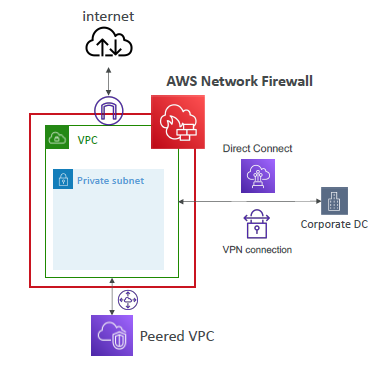

C. VPC firewall¶

managed service
inspect all traffic to/from:
internet
peered VPC
Data-center/customer (DX oe S2S)
...
firewall use gateway Load Balancer
layer 3 to 7 protection
tg ec2-i : security applicance running
- rules - filter ip, port, protocol, domain level(*.abc.com), regex
- action : allow, drop, alert
more:
can be used to manage multiple aws account
analysis:
- send logs to s3, CW, KDF

D. Extra : SSA¶

1. `shared service VPC`¶

VPC-1/2/3... all connected with transient gateway
inside VPC-1
create service-1 - eni:vpce-1
create service-2 - eni:vpce-2
...
provides access to services-1/2/..., required by workloads in each of the VPCs
share service-1/2/... with VPC-2,3,... using VPC endpoint/s

VPC-1 will become shared VPC, since its sharing resources to other VPC

#1
An e-commerce company operates multiple AWS accounts and has interconnected these accounts in a hub-and-spoke style
using the AWS Transit Gateway. Amazon Virtual Private Cloud (Amazon VPCs) have been provisioned across these AWS accounts
to facilitate network isolation.

Which of the following solutions would reduce both the administrative overhead and the costs while providing shared access
to services required by workloads in each of the VPCs?

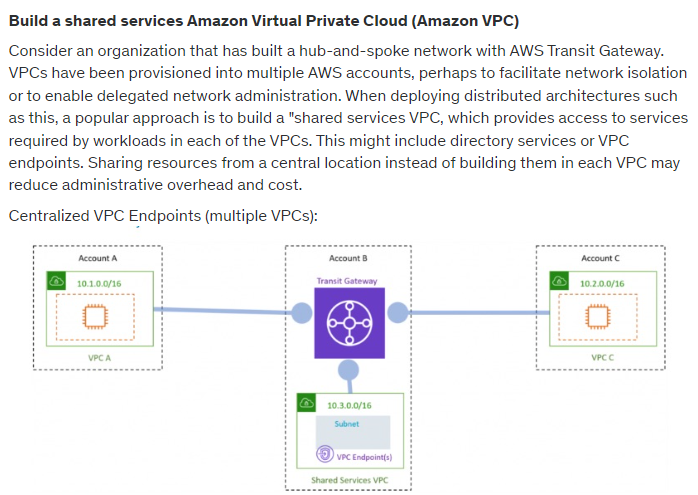

- Build a shared services Amazon Virtual Private Cloud (Amazon VPC)

2. Transit VPC¶

Transit VPC uses customer-managed EC2 instances in a dedicated transit VP with an Internet gateway
