1. bastion host

  • Access(perform SSH) ec2-i in private subnet from internet ( via bastion host)
  • SSH protocol, which is a TCP based protocol on port 22. 👈
  • just update SGs:
  • sg-bastion :
    • allow inbound traffic 0.0.0.0/0 on port 22(SSH)
  • sg-ec2-i :
    • allow inbound traffic from sg-bastion, on port 22(SSH)
    • img_2.png
  • bastion host is not typically used to manage all outgoing traffic from the private network to the internet.

2. NAT instance ❌

  • can be used as a bastion server 👈
  • outdated after 2020
  • NAT instances are not a managed service, it has to be managed and maintained by the customer.
  • Alternative : NAT gateway
  • need internet access for ec2-i running on private subnet. how ?

  • route internet traffic to IGW via through NAT-instance.

    • deploy NAT-instance in public subnet
    • create ec2-i, from PreConfigured Linux AMI, amzn-ami-vpc-nat-<year>.xxxxxxx-<cpu-arch>

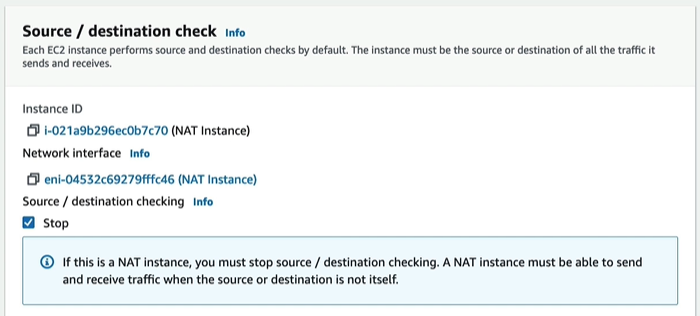

    • disable source/destination IP check, so that it will re-write src and dest IPs 👈
    • img_4.png
    • update rtb of private subnet
    • 0.0.0.0/0 :: NAT-instance
    • update NAT-instance sg
    • update sg of private ec2-i, to allow traffic from NAT-instance-sg
    • assign elastic-IP

  • it supports port forwarding 👈 🎯

  • by modifying the instance's iptables rules.

  • to forward traffic

    • from : specific port on the NAT Instance
    • to : port on a private EC2 instance.

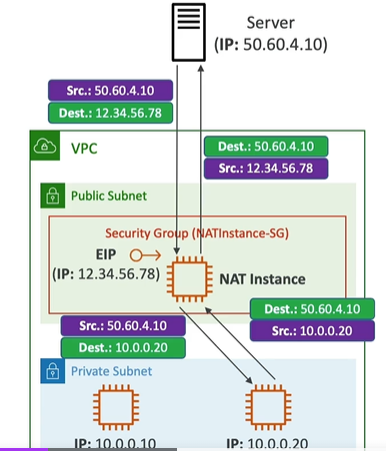

  • img_3.png

  • https://app.diagrams.net/#Hlekhrajdinkar%2F02-spring%2Fmain%2Faws%2FVPC-1.drawio

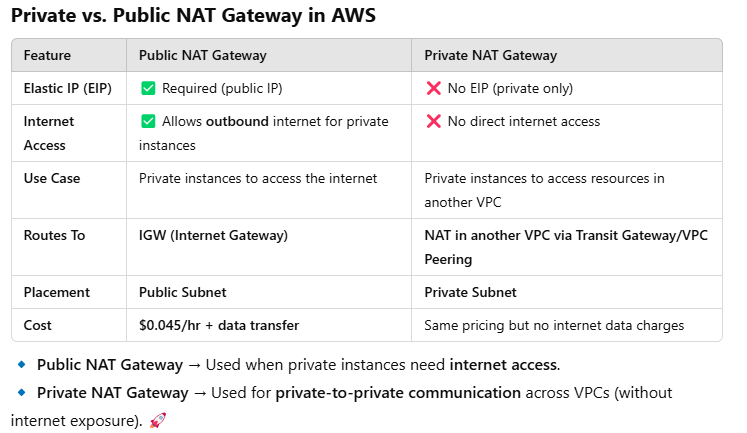

  • types and use case: private and public
  • nat-g-types.png
  • private NAT-g: use to route traffic from VPC-1 to VPC-2, having overllaping CIDR.

3. NAT Gateway

  • Can’t be used by EC2 instance in the same subnet, where NAT gateway is present 👈 👈
  • 🎯
  • NAT gateway cannot be used as a bastion server

  • does not support port forwarding

  • primary task:

  • enable instances in a private subnet to connect to the internet or other AWS services

  • but prevent the internet from initiating a connection with those instances.

  • AZ bounded 👈

  • AWS-managed
  • no administration

  • No Security Groups to manage

    • alternative: attach ACL on subnet

  • higher bandwidth supports bandwidth : 5 - 45 Gbps.

  • provision

  • create one with in each AZ
  • assign elastic-IP 👈
  • choose public subnet (having IGW)

  • update route table of each private subnet.

    • if destination is 0.0.0.0/0 :: then route to NAT-gateway-az-1
    • if destination is 0.0.0.0/0 :: then route to NAT-gateway-az-2
    • ...

  • more

  • supported protocols: TCP, UDP, and ICMP.
  • support up to 55,000 simultaneous connections, to each unique destination.
  • primarily for outbound-only traffic from private subnets
