  - network:0 - AWS VPC-1 (vpc)
  - network:1 - internet (public internet)
  - network:2 - Corporate Network (VPN)

  - vgw == `Vitual-private GateWay`

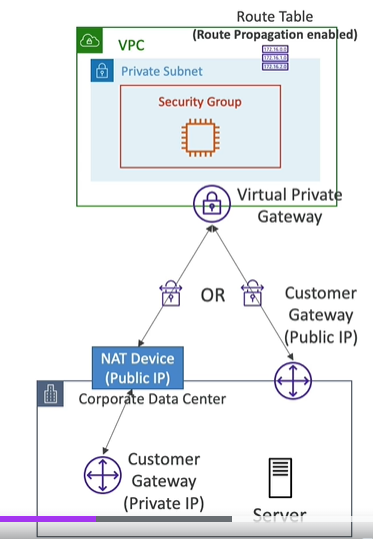

  - cgw == `Customer gateway` / software+hardware, running on customer side / attached `NAT-device`(public-IP-1)

Network topologies¶

A. AWS::VPC <==> AWS::VPC¶

A.1. `AWS::VPC-1` to `internet`¶

network:0,AWS VPC-1 (`rtb-main`) --> `igw`  --> network:1 :

- create igw-1 - update rtb-main with igw-1 entry.

A.2. VPC peering :: `AWS::VPC-1` to `AWS::VPC-2`¶

03_VPC-3-vpcPeer+vpce.md

all vpc in same/cross region <<<

eg : with same region:
 `Aws1::VPC-1` (CIDR-1)  <--- VPC peer ---> `Aws1::VPC-2`
 `Aws1::VPC-2` (CIDR-2)  <--- VPC peer ---> `Aws1::VPC-3`
 `Aws1::VPC-3` (CIDR-3)  <--- VPC peer ---> `Aws1::VPC-1`

 # No "overlapping" CIDR among them.
 # not transitive

B AWS::VPC <INTERNET> client::VPN¶

B.1. AWS Site-2-site VPN¶

AWS::VPC-1 to Client-VPN-1
also known as IPsec VPN connection

- connect AWS::VPC-1 to Client-VPN-1

how:

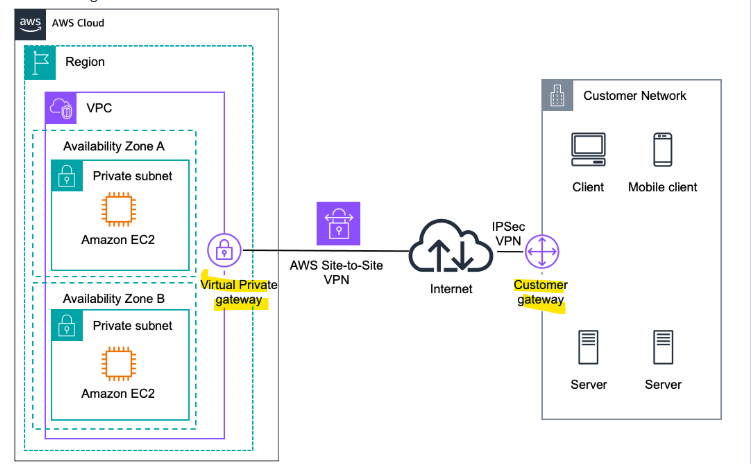

AWS VPC-1 (rtb-main:vgw-1) <==> [ vgw-1 <---Site-2-site VPN(uses:internet)---> cgw-1 ] <==> network:2(customer-1)
- this connection are `encrypted` by default.
- uses:internet

Step-1: create virtual gateway vgw-1, and attached on AWS VPC-1
does not Support ECMP
Step-2: create client gateway cgw-1, with customer details like - public-IP, etc
Step-3: create Site2Site VPN to connect cgw-1 with vgw-1.
tunnels
- tunnel-1 forward
- tunnel-2 backward
- tunnel 1/2 == used for single connection
- 1.25gbps
Step-4: update rtb-main with vgw-1 : for traffic forwarding between networks.
optional steps :
update sg on ec2.
update ACL on subnet.
slow, then : Transit Gateway with equal cost multipath routing and add additional VPN tunnels

B.2. AWS VPN cloudHub¶

AWS::VPC-1 to [ Client-VPN-1, Client-VPN-2, ... ]

- connect **AWS::VPC-1** to **many Client-VPN/s**
  - Client-VPN-1
  - Client-VPN-2
  - ...

 # solution-1 - create Site-2-site VPN for each client. not managable for 100 of cleint/s.
 # solution-2 - VPN cloudhub
    - uses:internet

Step-1: create vgw-1, and attached on AWS VPC-1
Step-2: create cgw-1,2,3.., with customer details

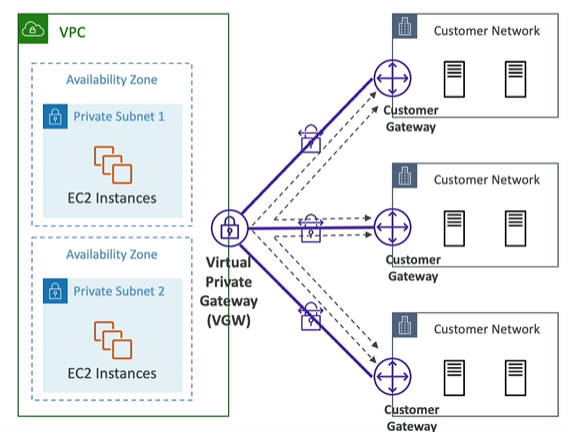

Step-3: create AWS VPN cloudHub(uses:internet) - link cgw-1,2,3,... with vgw-1.
rest of the step same as above.

C AWS::VPC <DX> client::VPN¶

C.1. DX (Direct Connect)¶

# scenario
 - customer-1 is connected to DX-1::endpoint
 - AWS:VPC-1 wants to connect to same DX-1::endpoint

 flow:

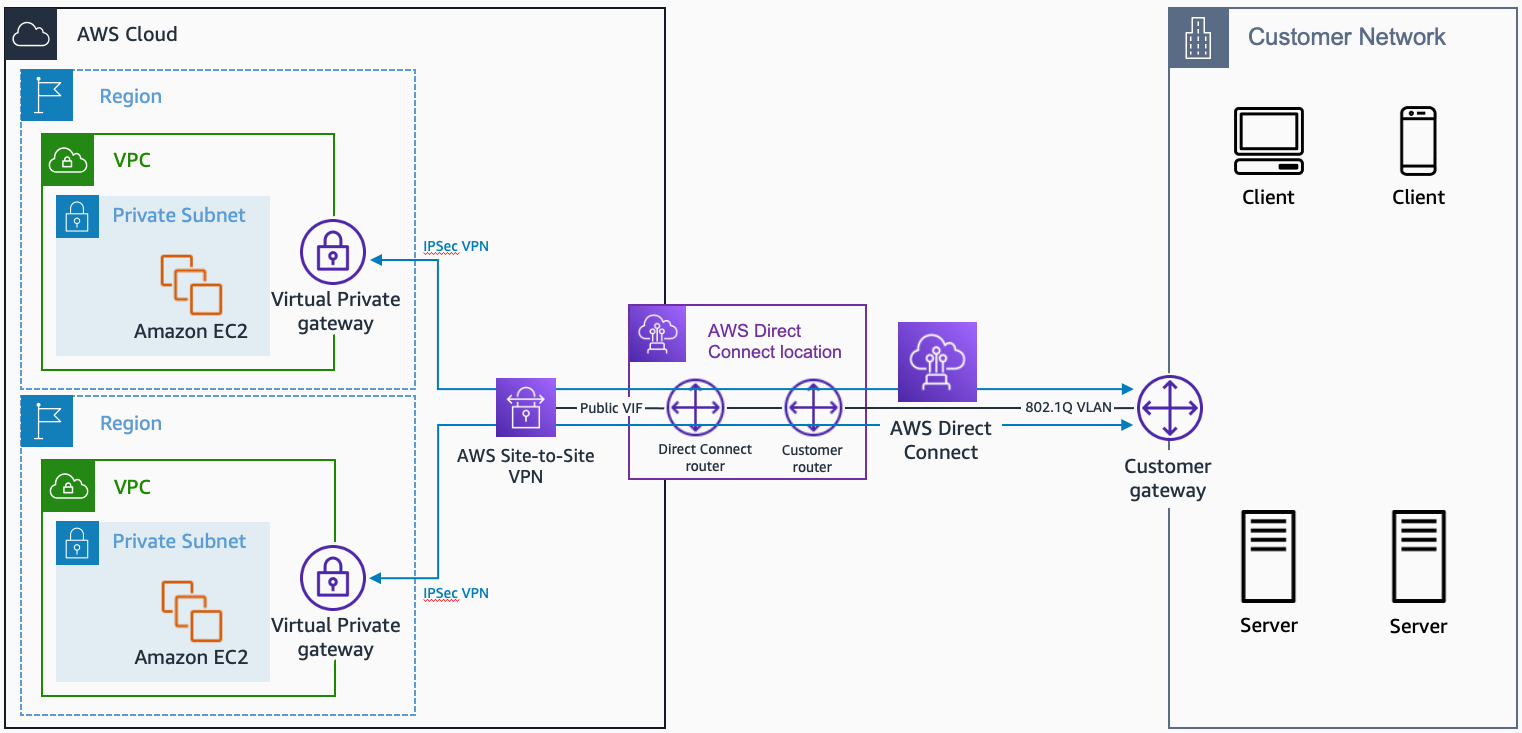

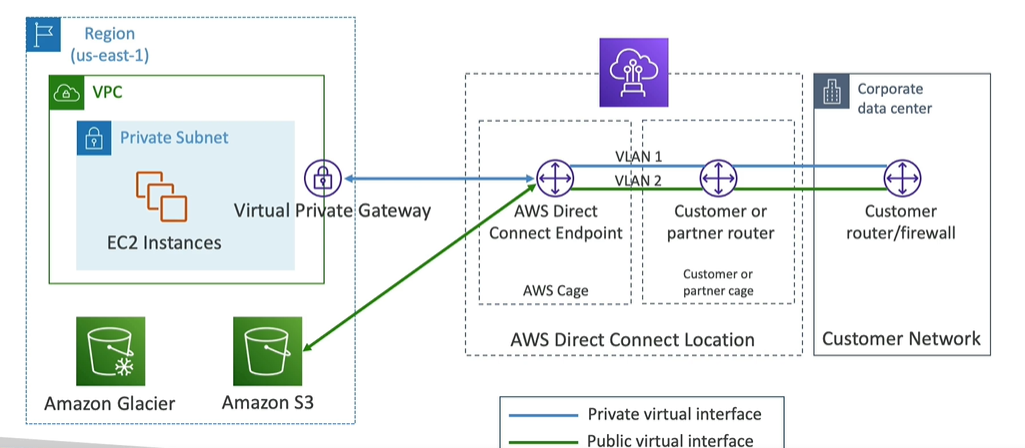

 AWS VPC-1  (rtb-main:vgw-1) --> [ vgw-1 <--aws-direct-Location,DX::endpoint --> cgw-1 ] --> network:2(customer-1)

- AWS-Direct-location, between on-premises and AWS, Bypasses the public internet. - key-highlight - dedicated physical connection - private - high-bandwidth / fast - low-latency - consistent/stable connection. - no encryption by default, can add but bit complex - fact:there is lead/wait time to setup new connection, around a month

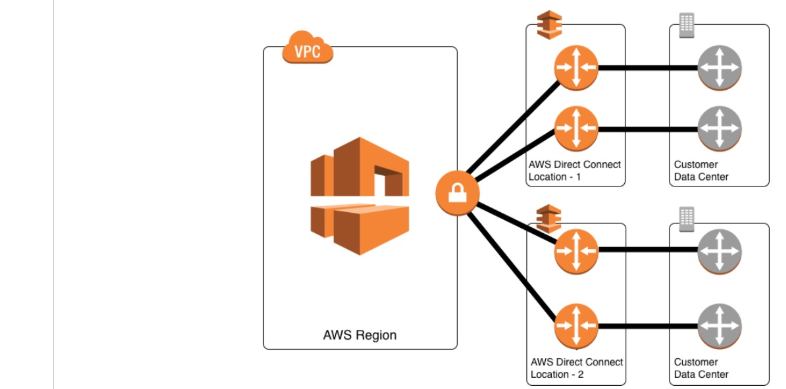

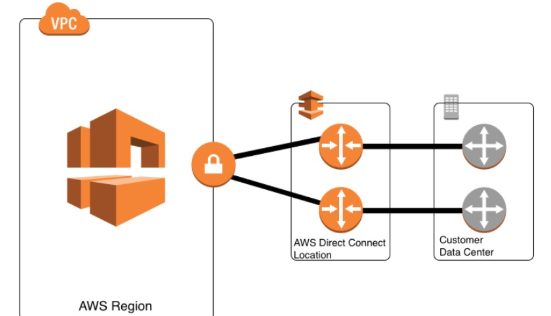

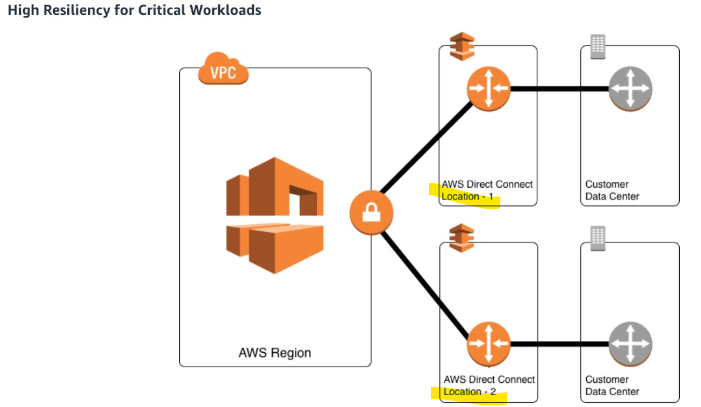

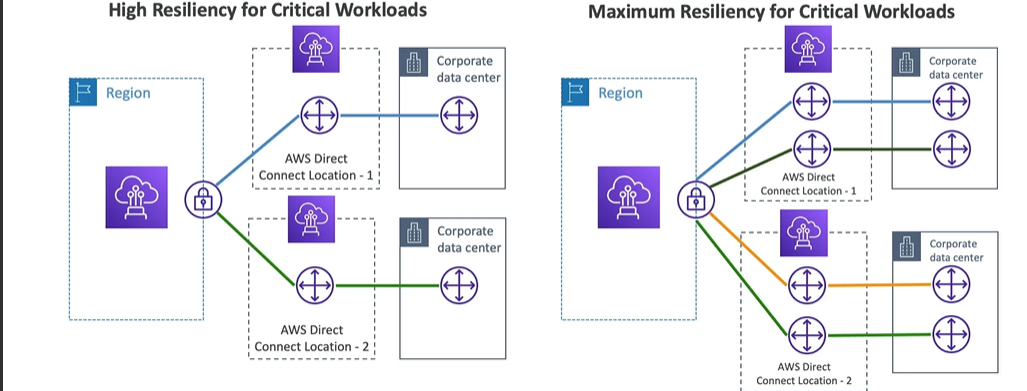

- Types: - Dedicated : wire ethernet, 1,10,100 Gbps, fastest - hosted : via DX-partner 50 500 Mbps, 1 2 5 10 Gbps, slow - resiliency : - add more connection/s. -

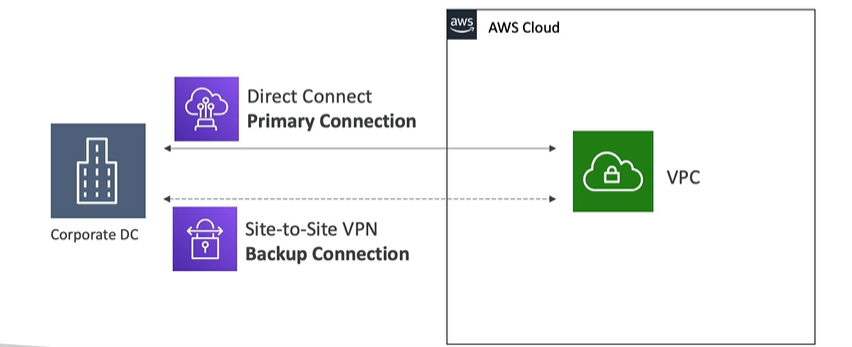

- or, create primary:DX + Secondary:Site2SiteVPN -

Steps:
Step-1: create vgw-1, and attached on AWS VPC-1
Step-2: create cgw-1, with customer details
Step-3: create DX-1::endpoint
- connect vgw-1 to DX-1::endpoint
- connect cgw-1 to DX-1::endpoint

C.2 DX gateway¶

# scenario
  - customer is connected to DX-1::endpoint
  - 2 or more AWS VPC wants to connect to same DX-1::endpoint
    - AWS::VPC-1 --> DX-1::endpoint
    - AWS::VPC-2 --> DX-1::endpoint
    - ...
    - ...

- way-1 - for AWS::VPC-1 - create vgw-1 - connect vgw-1to DX-1::endpoint - AWS::VPC-1 (update rtb:vgw-1) - for AWS::VPC-2 - create vgw-1 for AWS::VPC-1 - connect vgw-1to DX-1::endpoint - AWS::VPC-1 (update rtb:vgw-1) - ... - ...

way-2 :

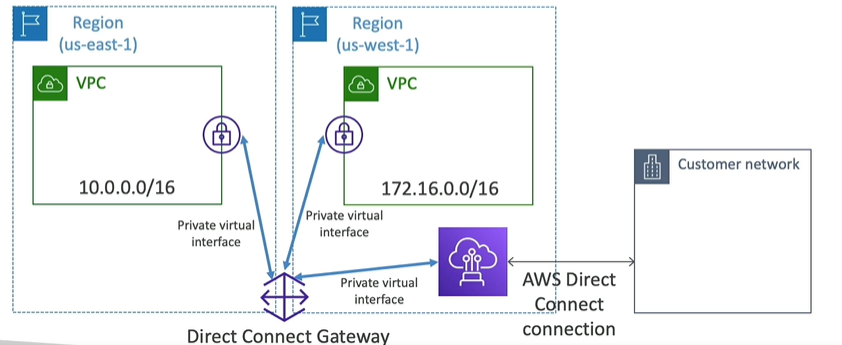

create DX-gateway dxg-1
connect dxg-1 to DX-1::endpoint
AWS::VPC-1(update rtb:dxg-1)
AWS::VPC-2(update rtb:dxg-1)
...
...

transient Gateway¶

NOT tied to a specific VPC, Account level services : point_left:

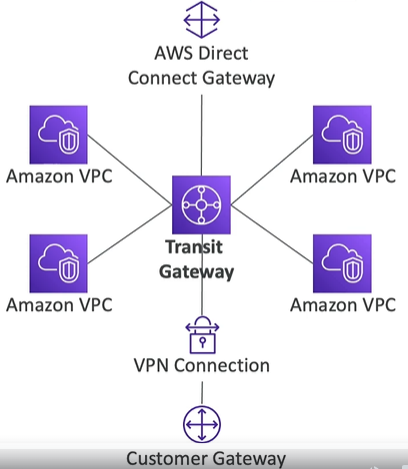

network topologies can be complicated, transient Gateway, simplify above topologies
define everything at single place : rtb of transient gateway
supports IP-multicast ?
create multiple tunnels in AWS Site-2-site VPN : ECMP routing
shared with multiple aws account **
AWS Transit Gateway with Resource Access Manager (RAM)
can scale the VPN throughput

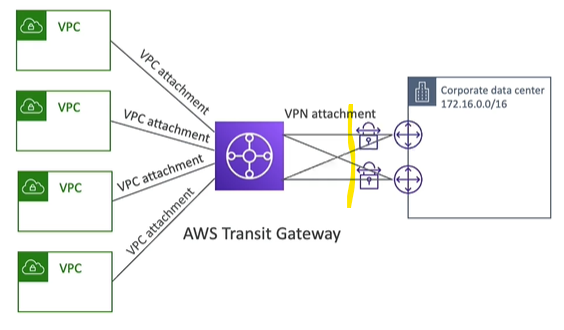

with equal cost multi-path (ECMP) routing support over multiple VPN tunnels.
A single VPN tunnel still has a maximum throughput of 1.25 Gbps.
If you establish multiple VPN tunnels to an ECMP-enabled transit gateway, it can scale beyond the default maximum limit of 1.25 Gbps.
You also must enable the dynamic routing option on your transit gateway to be able to take advantage of ECMP for scalability.
