AWS cloudFront (global)

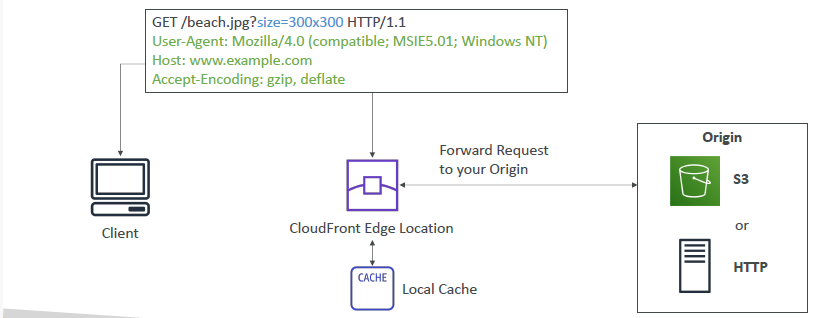

Pictorial description

  • img.png
  • img_2.png
  • img_3.png
  • 1-2-M
  • one distribution - multiple origins

key point

  • protocol : HTTP/RTMP 🎯

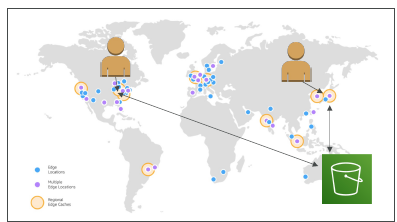

  • CDN content delivery network, cache data all around the world/countries
  • allow-list countries
  • black-list countries.
  • static-content cached for TTL (eg : a day), thus low latency.

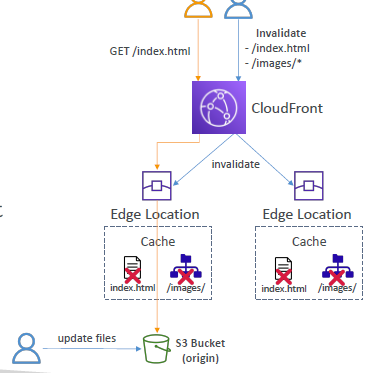

  • Also can invalidate cache at any time
  • security: 👈
  • can integrate with WAF 08_WAF+FirewallManager.md

  • integrated with AWS-shield (firewall) 09_sheild.md

  • bypass the regional edge cache, and go directly to the origin 🎯

  • Proxy methods PUT/POST/PATCH/OPTIONS/DELETE go
  • Dynamic content, as determined at request time

A. Distribution (regional cache)


1. origin

  • source (3):
  • s3 bucketors3(static Web),
  • Any http backend
  • ALB only (not other ELB)
  • remember : NO Lambda ❌ 🎯 exam confuse with lambda alot.
  • distribution(edge-location) ---> privatelink physical connection ---> origin(eg:alb on us-east-1)
    • cf also needs access-policy to access origin

2. origin access

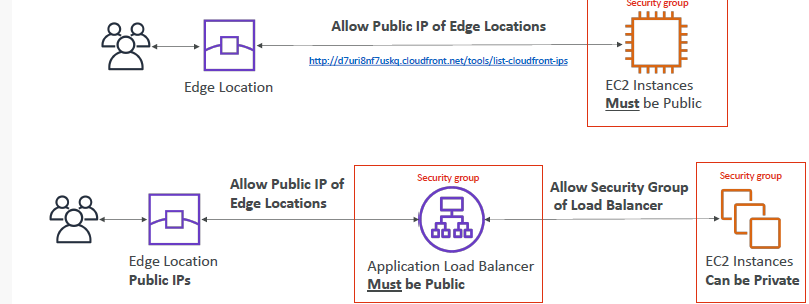

  • make origin publicly accessible.
  • get list of Public IPs of all 400+ edge location
  • add app level security to allow access only to above IPs.
  • update sg to allow traffic.

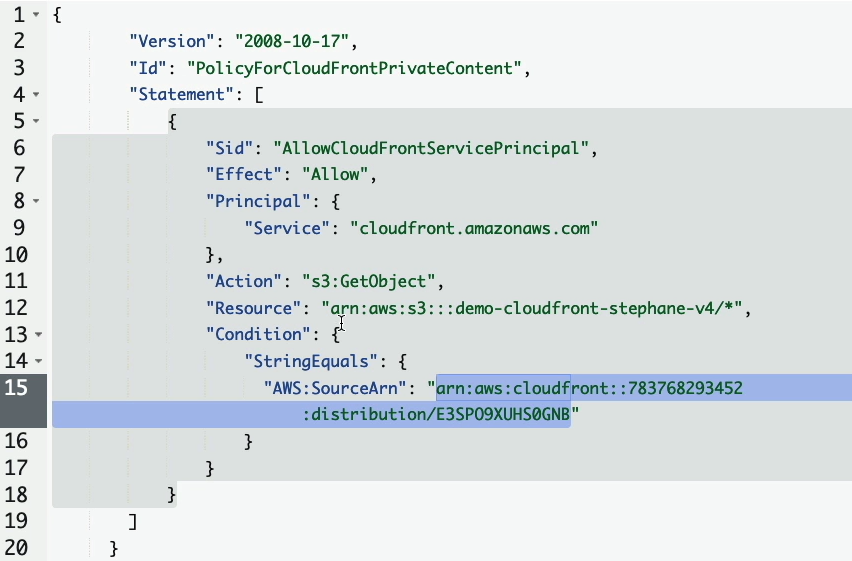

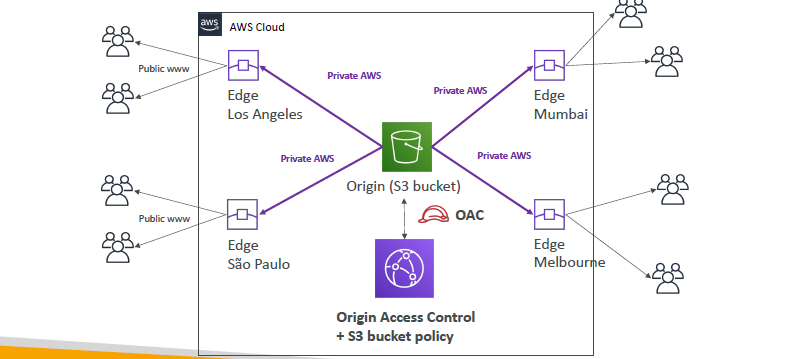

  • OAC - Origin access control
  • policy allow CF to connect/access origin.
  • img_3.png
1. OAI (Origin Access Identity) - Legacy Method
- A special CloudFront IAM identity used to access an S3 bucket.
- Requires updating the S3 bucket policy to allow access from CloudFront.
- Limitations: Works only for S3 origins and lacks fine-grained permissions.

2. OAC (Origin Access Control) - Newer & Recommended   <<<<<
- Uses IAM-based authorization instead of S3 bucket policies.
- Supports both S3 origins and custom origins (e.g., EC2, ALB).
- Provides granular permissions via IAM roles.
- More secure and flexible than OAI.

above example:
- principal : cf service
- condition : distribution arn

3. origin failover

  • to help support your data resiliency needs.
  • origin group with
  • primary and secondary origins
  • to configure Amazon CloudFront for high-availability and failover

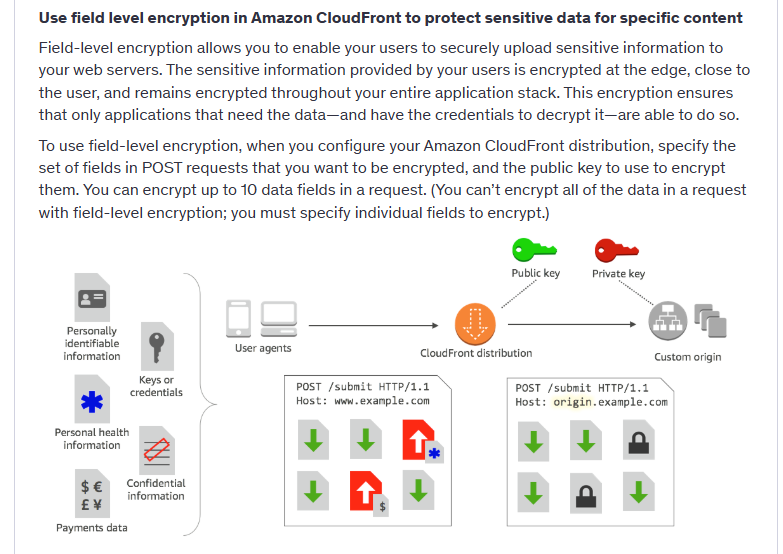

4. security: feild level encryption

  • img_2.png
  • distribute content only to its service-subscribers / bona fide end users 🎯
  • Use Amazon CloudFront signed cookies
  • Use Amazon CloudFront signed URLs

5. CloudFront Function

  • purpose:
  • Website Security and Privacy
  • Dynamic Web Application at the Edge
  • Search Engine Optimization (SEO)
  • Intelligently Route Across Origins and Data Centers
  • Bot Mitigation at the Edge
  • Real-time Image Transformation
  • A/B Testing
  • User Authentication and Authorization
  • User Prioritization
  • User Tracking and Analytics

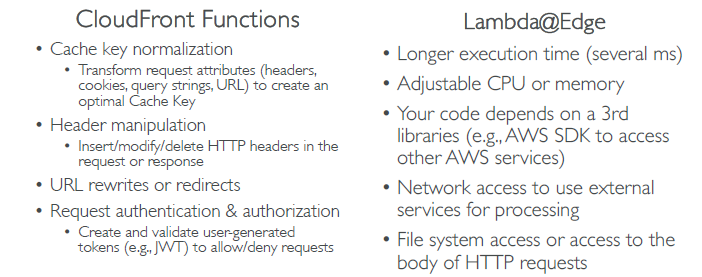

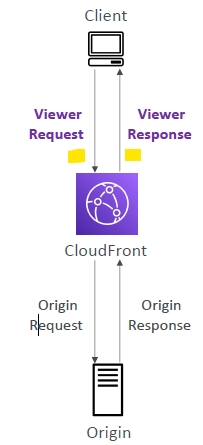

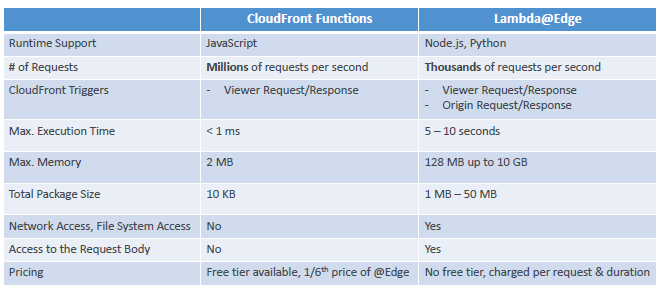

  • Type:
  • lambda@Edge
  • CloudFront-Function
  • img_2.png

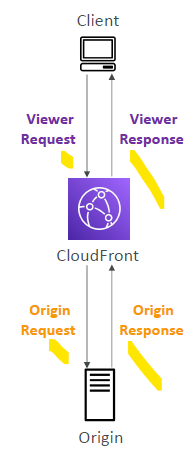

a. lambda@Edge

  • nodeJs or Py
  • lambda is heavy
  • scale to 1000s of request/sec
  • execution time : 5-10 sec
  • globally service. 👈
  • author: us-east-1
  • replicated to edge location from author.
  • img_1.png

b. CloudFront-Function

  • js
  • very light weight
  • 10 KB pkg
  • Max 2Mb ram
  • scale to million of Req/sec
  • pricing: 1/6 time cheaper than lambda.
  • img.png

- img_1.png

B. Demo

1. s3 as origin

  - create CF > distribution-1
    - choose default object (optional) : index.html
    - choose `origin` : add s3-bucket-1 + upload index.html
        - choose `origin-access` (s3 access ways) :
            - public, or
            - OAC **
                - create OAC-1 and attach to distribution-1
                - Copy OAC-1:policy
                - so we don't need to make s3-bucket-1 public

  - update s3-bucket-1 policy with `OAC-1:policy`.
    - this will allow distribution-1 to access s3.

  - Copy public-url and hit it
    - public-url --> redirect to --> public-url/index.html.

  - Now upload abc.png in bucket
  - hit - blic-url/abc.hit
  - this comes from distributio, not directly from s3.

   - Now upload sub-folder/abc.png in bucket
  - hit - public-url/sub-folder/abc.hit
  - ...
  - so on

2. ALB as origin

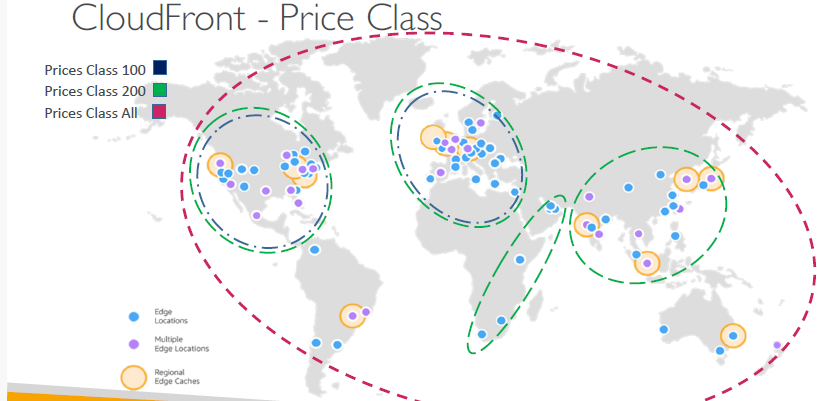

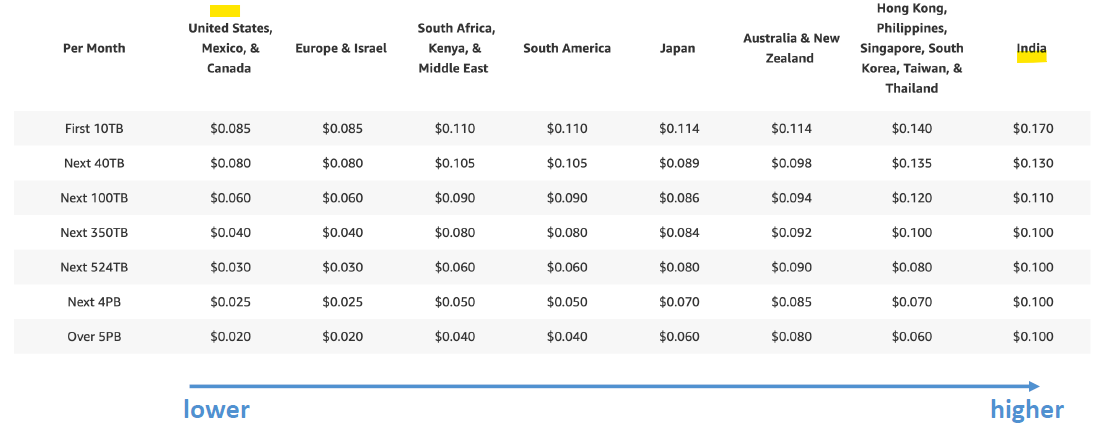

C. Pricing

img_1.png - price class - 100 - usa, europe, etc - 200 - africa, asia, etc - ALL - img_2.png

D. signed URl / cookies

  • CloudFront supports two types of signers for creating signed URLs or cookies:
  • Trusted AWS Account Signers
  • Key Pair Signers (deprecated) ❌
    • key pairs associated with the root AWS account
  • CloudFront key groups
    • public key is added to the key group in the CloudFront distribution settings
    • The corresponding private key is securely stored by the developer or application creating signed URLs.

exam 🎯

1

  • Choosing Between ElastiCache and CloudFront
  • If your goal is (ElastiCache)
    • to improve the performance of database queries
    • store session data in memory, use Amazon .
  • If your goal is (CloudFront)
    • to deliver content quickly to users across the globe,
    • reduce latency for static and dynamic content

2

  • cannot directly integrate Cognito User Pools with CloudFront distribution
  • via AWS Lambda@Edge function can accomplish
  • but requires additional development

3

  • If you have objects that are smaller than 1GB,
  • you should consider using Amazon CloudFront's PUT/POST commands for optimal performance.

4

  • send custom error if origin server is down.
  • upload/host error on s3
  • configure 4xx and 5xx
  • under error-page tab on console.
