API gateway (Serverless)

A. Intro

• API ( REST API** , http API ,websocket API), with other benefit:
• caching
• API versioning : enable
• API documentation : enable SDK/doc generation
• interceptor : mapping template to transform req/resp (json/xml only)
• more:
  • No infrastructure to manage. :)

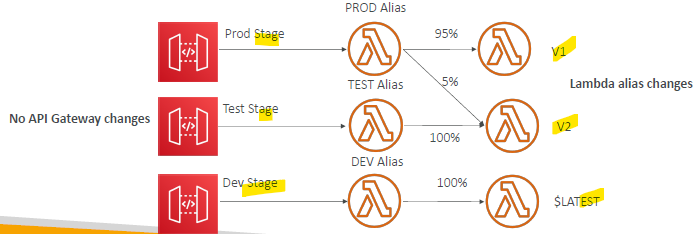

  • create environment - dev,qa,prod
  • throttling - rate limiting
  • has default setting to prevent from DDoS
  • security - check below.
  • import
  • already have pre-define API
  • from Swagger/OpenAPI
  • req/resp body schema validation

---

B. API gateway: integration

B.1. Backend

• can have multiple backend and create forwarding/transformation rule at api-gateway level as well.
• use it gateway for microservice

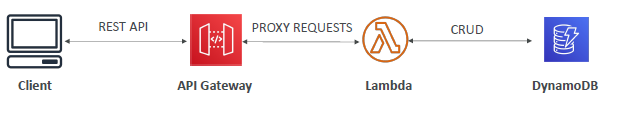

• API-g >> PROXY >>lambda (event,context)
• pure serverless
• most common
• default/max timeout : 29 sec

• use AWS_PROXY

• API-g >> PROXY >> Any HTTP backend

• API-g >> on-prem-API
  • DX or S2S connection.

• API-g >> ALB

  • expose ALB public directly. happening in ccgg.
  • expose API-g >> ALB > tg [ecs/eks - container - ec2/fargate]

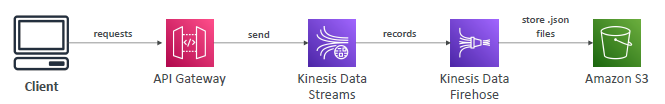

• API-g >> PROXY >> Any AWS service API call.

• s3:*
• sqs:getMessage
• kds:*
• ...
• note: setup mapping template

---

B.2. Proxy

• there are 3 proxy options. choose either.

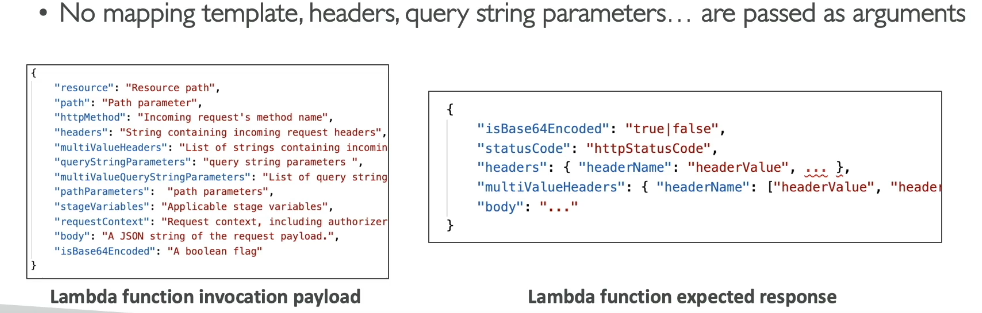

B.2.1. AWS_PROXY

• NO mapping template
• request/response object uses inbuilt aws-template
• eg: API-g <> AWS_PROXY <> lambda
•
• Note:
• ALB <> AWS_PROXY <> tg:lambda
• use same template, remember
• 01_ELB_ASG.md

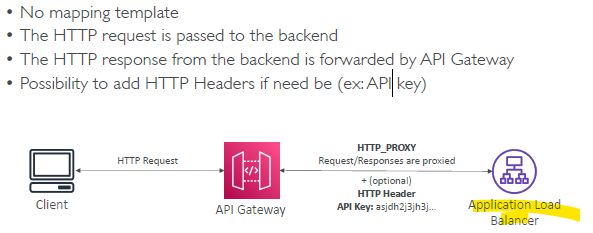

B.2.2. HTTP_PROXY

• NO mapping template
• eg: API-g <> AWS_PROXY <> http-backend (ALB)
•

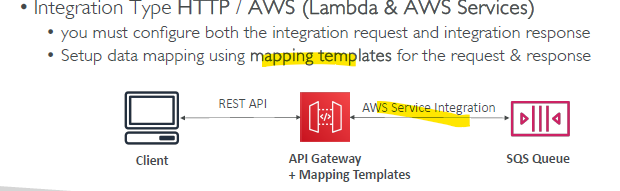

B.2.3. NO PROXY for (HTTP / AWS)

• set up mapping template
• Content-Type must be == application/json/xml
•

B.2.4. MOCK

• for dev/testing purpose

---

B.3. Mapping Template

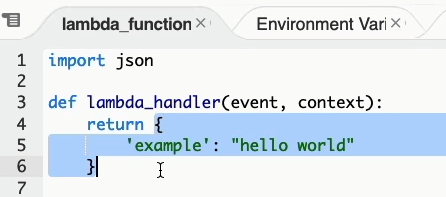

• response from lambda
•

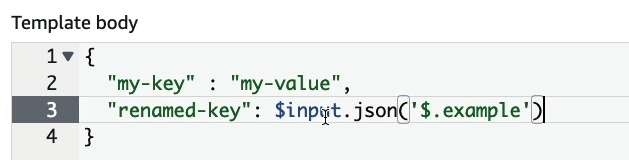

• create template
•

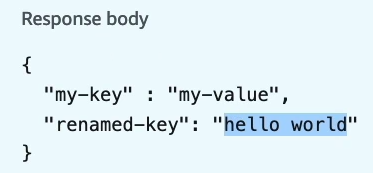

• check final response
•

Use-cases

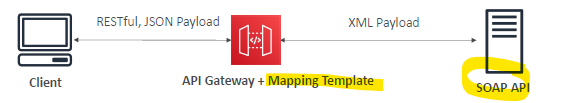

• use-case-1: transform SOAP response
•
• use-case-2: tranform query param
•

---

C. Endpoint type

• by Deployment model

1 regional

• deployed in single region eg: us-west-1
• for users in one region
• can have regional with CloudFont eg:
• set-1: for us-west-1
• UNION
• Set-2 : create CF distribution-1 (CF) : whiteList - europe user + india user

2 edge-optimized (default)

• deployed/lives in one region, but configure to
• route request through CF many edge location/s
• backed by : cloudFront distribution
• for global user

3 private

• with private VPC
• API-g >> VPC endPoint

---

B. Security : REST API-gateway

• no native support for openIDConnect/OAuth - REST API-gateway
• but Http API-gateway has it.

1. Authentication

1.1. API keys

• Authentication
• passx-api-key header

---

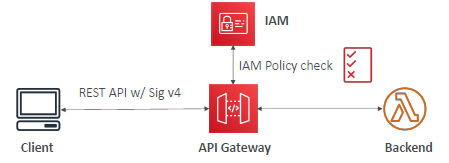

1.2 IAM

•
• for IAM user / roles
• IAM-based SigV4 signing
• AWS SDKs and AWS CLI handle SignatureV4 signing automatically.

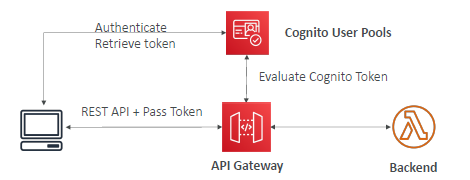

1.3 Cognito

• for global user
• integrate with 3rd party ID provider.
•

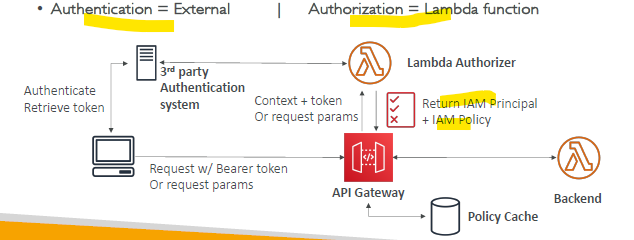

1.4 Lambda Authorizer

- Great for 3rd party tokens - Handle Authentication verification + Authorization in the Lambda function

2 SSL

• export certificate to ACM
• create R53 entry (cname/alias)
• integrated with ACM
• keep certificate it us-east-1 for edge-optimized endpoint.
• certificate with backend server domain name.

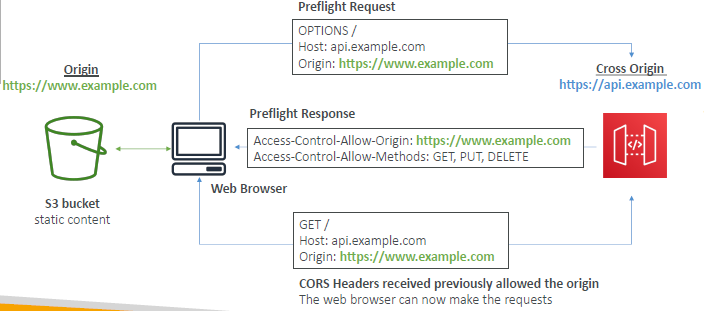

3 CORS

• CORS can be enabled on api gateway
•

4 Authorization

• API-gateway resource iam policy,
  • not exist by default. have to create one
• principle/who:
  • use for cross account id
  • ...

5 throttle setting for stage

• set rate (no.of req per seconds make be made)
• 10000 rpsacross all APIs
• set limit for stage.
• else one api/stage will consume all and impact other
• set burst (no of concurrent request)

6 firewall setting for stage

• set WAF
• set certificate

7. create usage plan

• first create API key

---

C. pricing

REST API
    $3.50 per million requests (first 300M, then $1.51 per million).
    Data transfer & caching costs extra.

HTTP API (Cheaper than REST API)
    $1.00 per million requests for first 300M,
    then $0.90 per million

WebSocket API
    $1.00 per million messages
     connection minutes cost.

---

Y. hands on

- create (4 Type) : api-gateway-1
    - HTTP API  >> lambda, http backend
    - REST API | REST API (Private,vpc-1) >> lambda, http backend, awsServices
    - Web-scoketAPI  >> lambda, http backend, + awsServices

  - choose - REST API
  - API details:
        - create new **
        - import frpm OPen/AI swagger
        - clone API
  - deplomnet model : regional
        - region : us-east-1
  - integration Type: lambda
        - choose method: lambda-fn-1

  - set timeout : default 30 s

  - check lambda > permission > "resource based policy statemnet"
    - allow invoke for agi-g          <<<<

  - proxy integration : enabled       <<<<
    - if not enabled
    - then create mapping template

  - invoke from aws webcosole

  - Deploy API
      - choose stage - dev,qa, prod
      - will get invoke URL
      - try on BROWSER

---

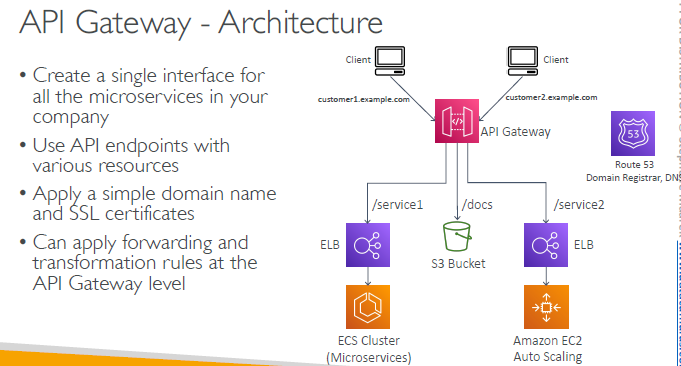

Z. Architecture Example

•
•
•

microservice (gateway)
