SQS¶

oldest & Fully managed
auto-scale
unlimited throughput,
low latency (< 10ms),
max msg size : 256KB

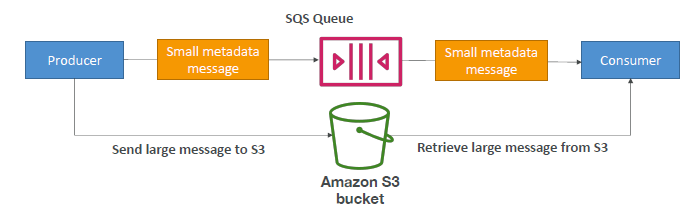

use extended-SQS, backed by s3.

A. De-couple Models in AWS¶

queue : SQS
- coupled app (sync)
- de-couple app (Async)
pub/sub : SNS
real time data-stream : kinese Firehose

B. Types¶

1. Standard¶

multiple producer p1,p2,p3, ... ---> [queue:message-1(with Attribites)] ---> multiple consumers (C1,C2,C3, lambda-Consumer, ... )
can purge
at least once delivery
multiple consumer can receive same message.
consumer handle duplicate message, has to delete message.
idempotent consumer, if needed.
best effect ordering : order not guaranteed.
msg retention:
max : 14 days
default : 4 days

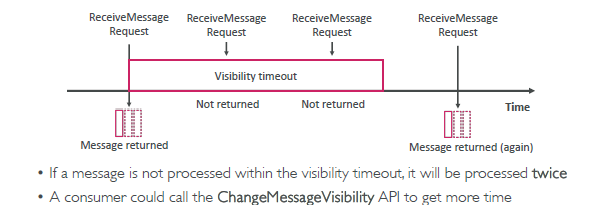

visibility timeout
0-12 hr
consumer could call this api to get more time.
if too low, then may get duplicate.
Polling Type (2)
short polling (default)
- SQS sends the response right away, even if the query found no messages
Long polling
- Consumer can optionally “wait” for messages to arrive, if there are none in the queue
- set message receive wait time : (1-20 sec)
- pattern : poll-1 API -- wait 10 sec -- poll-1 API -- wait 10 sec ...
- long poll preferred :
- more gap in poll api calls, but increase latency
- Amazon SQS sends an empty response only, if the polling wait time expires
- save cpu cycle, save money $$
DLQ must also be a standard queue
Delivery delay
Throughput : virtually unlimited messages per second. :point-left:

2. FIFO¶

DLQ must also be a FIFO queue
S3:event notification target --> only standard, not fifo
Exactly-once processing
name : has suffix .fifo
no duplicate.
content-based-de-duplication : enable it
de-duplication interval : say 5 min
- duplicate messages are for 5 min, will get refused.

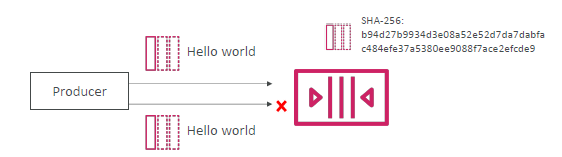

how to check duplicate:
- de-duplication_ID along with message
- SHA-246 hash of message body
Limited throughput:
default (batch size = 1) : 300 msg/s
batch size = 2, 600 msg/s
...
max batch size = 10, this max 3000 msg/s
ordered
within group.
not across groups
multiple consumer

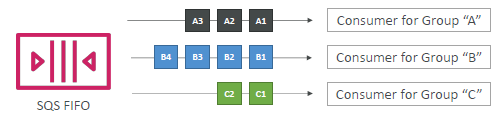

use grouped messages: MessageGroupingId (like in kafka)
group-1 ( msg1, msg-2, ...) --> consumer-1 (ordered in group-1)
group-2 ( msg1, msg-2, ...) --> consumer-2 (ordered in group-1)

3. Ephemeral queue¶

Amazon SQS Temporary Queues
cannot be created directly from the AWS Management Console.
They must be created programmatically using the AWS SDK or CLI.
CreateQueue API , attributes:
- FifoQueue
- ExpiresAfter
short-lived, designed for temporary message passing
Auto-delete after inactivity.

B. DLQ¶

If a consumer fails to process a message within the Visibility Timeout or Exception from Consumer code.
then. message goes back to the queue and consume received again.
After the MaximumReceives threshold (say 3) is exceeded,
message goes into a Dead Letter Queue(DLQ)
Good to set a retention of 14 days in the DLQ
re-drive
push messages from the DLQ back into the source queue / any other queue

C. Security¶

general¶

attach iam:sqs-policy.
cross account access
allow other service:
- eg: S3 Event Notifications To SQS Queue
In-flight encryption
HTTPS (with TLS)
At-rest encryption
KMS keys (sse-sqs, sse-kms, sse-c)
Client-side encryption : if the client wants to perform encryption/decryption itself.

D. price (cheap)¶

number of requests
Standard Queue : $0.40 / million requests.
FIFO Queue : $0.50 / million requests.
data transfer
inbound data is free
outbound traffic paid. ?
Long Polling: No extra cost for long polling.
save cost, because it reduces the number of empty receives

E. hands on¶

- create queue : queue-1
- Type : standard ** + FIFO
- configuration:
  - `visibility timeout` : 30
  - `delivery delay`
  - `receive message weight time`
-  encrytion : sse-sqs
- policies:
    - SQS access policy : json
    - Redrive allow policy : pending
- Dead-letter queue
- tags

// READY
- send : hellow world
- receive : poll messages + delete
- purge : delete all message.

-

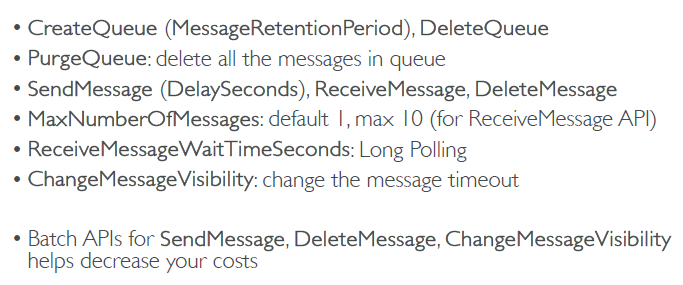

F. API must know (for DVA) ¶

G. use-case / arch eg¶

flow
frontend request going to sqs

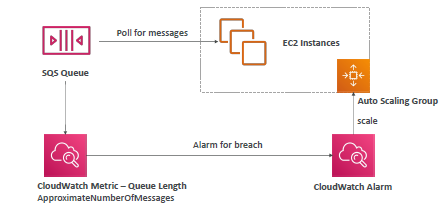

SQS logs >> CW >> custom-metric::ApproximateNumberOfmessageVisible >> alarm
SQS:inbuilt-metric::ApproximateNumberOfmessageVisible >> alarm
ASG [ ... multiple consumers ec2-i... ] --> in/out

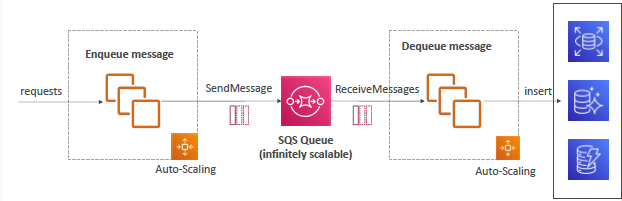

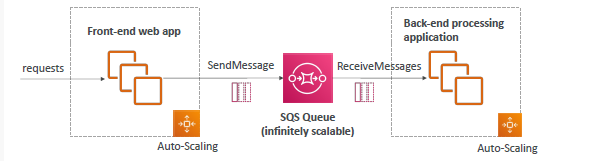

ASG [ FE-1, FE-2, ... ] ---> stage all request in Queue --- > ASG [ BE-1, BE-2, ...]

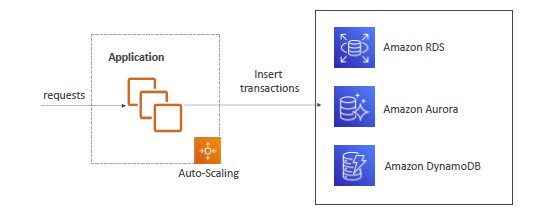

Overloaded DB request:
ASG [ FE-1,...] --> Queue-1(Stage client request) --> ASG [BE-1,...] --> store to DB, OVERR-LOADED --> lose some insert
ASG [ FE-1,...] --> Queue-1(Stage client request) --> ASG [BE-1,...] --> Queue-2(stage-DB-request) --> ASG [BE-repo-1,...]
