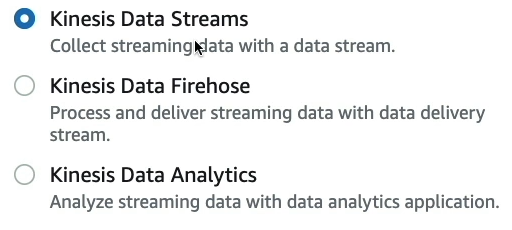

  • img_4.png
  • real-time stream. eg:
  • app log
  • CW metric
  • web activity

A. Kinesis Data Stream KDS (serverless)

  • think of kakfa

  • serverless

  • manages the infrastructure
  • storage
  • networking,
  • configuration needed to stream data.

1. key feature

  • RealTime (~200 ms latency)
  • ingest data at scale
  • processing
  • supports replay

2. Capacity planning (stream>shard)

provisioned

  • choose shard count needed.
  • cost - hourly /shard : 0.015

on-demand new

  • default capacity of stream : 4000 record/sec + 4 MB/sec
  • meaning - 4 shards
  • auto-scale shards based on last 30 throughput peek history
  • max: 200k record/sec + 200 MB/sec
  • cost
  • hourly /stream 👈
  • data in/out GB

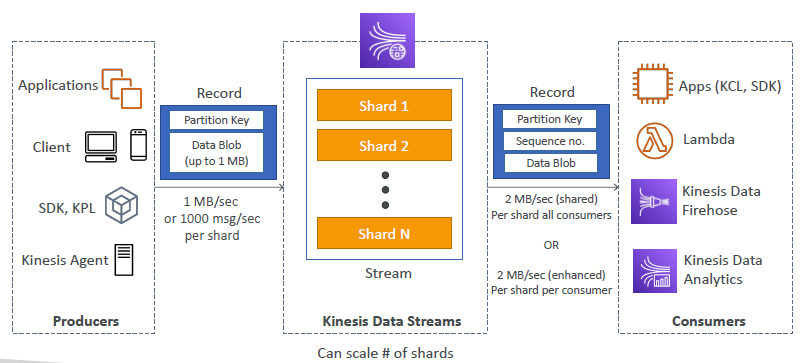

3. component

  • img_4.png
  • img.png

A kineses stream === topic

  • retention : 1(24 hrs) - 365 days (8760 hrs) 👈
  • default retention : 24 hours 🎯
  • immutable
  • can replay

B shards === partition

  • shard-1, shard-2, ...
  • shard count decides. write eg:
  • message/record throughput :1000 record/sec/shard : if 6 shards => 6000 message/sec
  • produce speed : 1 MB/sec/shard : if 6 shards => 6MB/s
  • consume speed : 2 MB/sec/shard : if 6 shards => 12MB/s
  • order : data in each shared is ordered.

C record === message

  • shard#,
  • Blob(data) 1MB-max

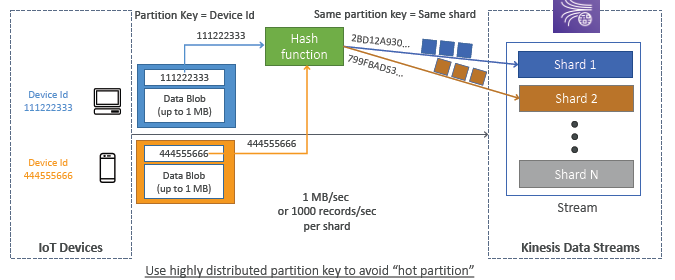

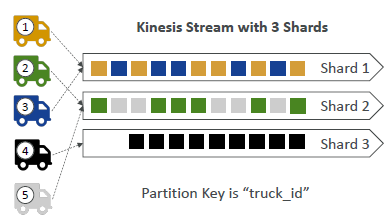

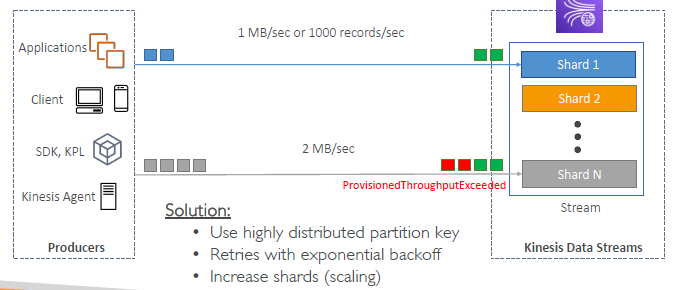

  • partition-key : msg with same key goes to same shard.
    • use highly distribute key, else imbalance and ProvisionThroughputExceeded error 👈
    • fixes:
    • a. do retry with exponential backoff. (short term + as soon as the request rate increases, again issue)
    • b. scale out shards. (short term + increase cost)
    • c. batch messages 🎯
      • PutRecord API action in a loop is inadequate.
      • application must batch records, optimally using the shards in long term.
    • img.png
    • img_1.png

- img_2.png

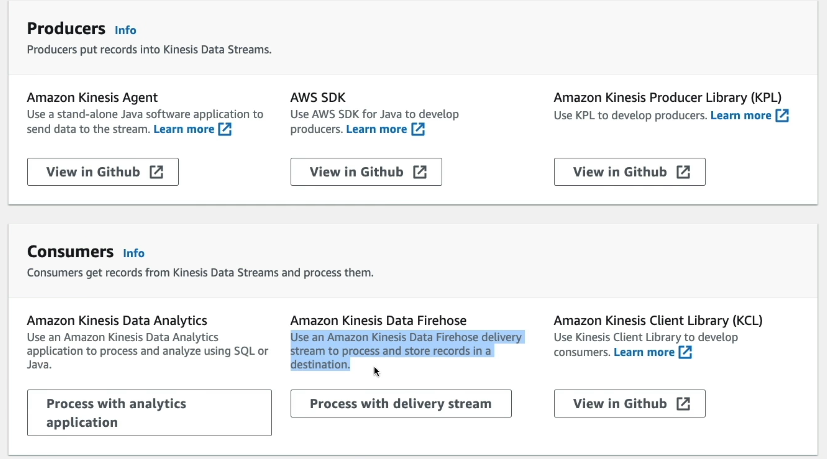

D producer

- DynamoDb stream --> k-agent --> KDS
- s3 --> DMS --> KDS

producer-1: app

  • aws SDK (for simple producer)
  • KPL - kineses producer lib
    • for adv usecase : compression, batch, etc.

producer-2: kineses-Agent

  • stand-alone java programs

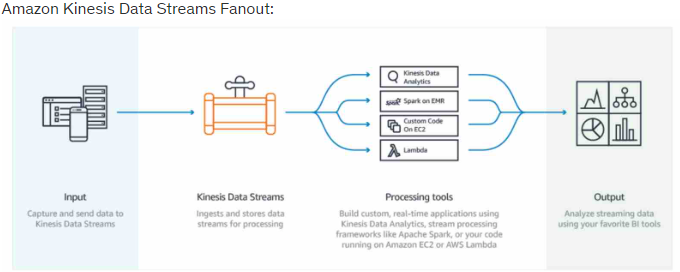

E consumer 📚

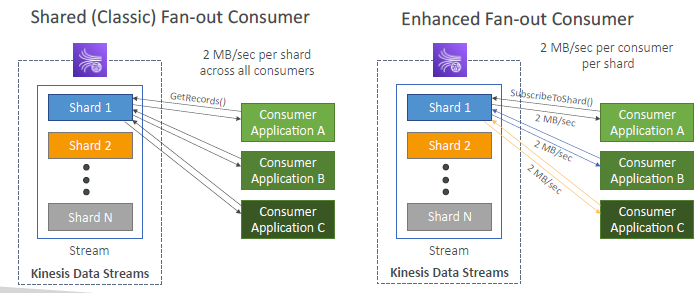

  • fanout consumer/s - ( multiple ) 👈
  • classic fan out consumer/s (pull):
    • 3 consumer on shard-1, then throughput will 2MB/sec/3 == 666KB/sec each
    • getRecord API
  • enhanced fanout consumer/s (push using HTTP/2)
    • subscribe API
    • sift limit of 5 consumer per stream.
  • img_2.png
  • img_2.png

consumer-1: app(aws-sdk)

  • support shared + enhanced

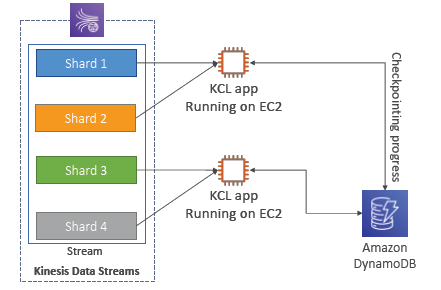

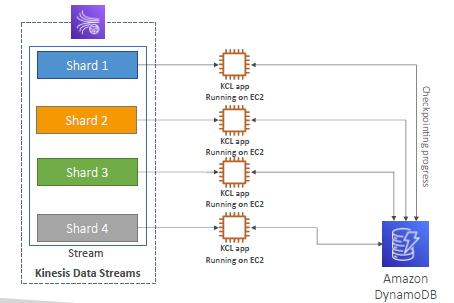

consumer-2: app(KCL)

  • Kineses Client libray, (java lib)
  • read progress is tracked in dynamoDB. so add IAM role. 👈
  • max one KCL consumer per shard only 👈
  • img_5.png
  • img_6.png

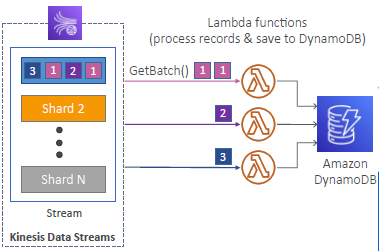

consumer-3: lambda

  • supports both mode
  • classic
  • enhanced
  • configure these : batch size and batch window.
  • eg: serverless flow
  • img_3.png

consumer-4: kDF (firehose) 👈

consumer-5: KDA (analytics) 👈

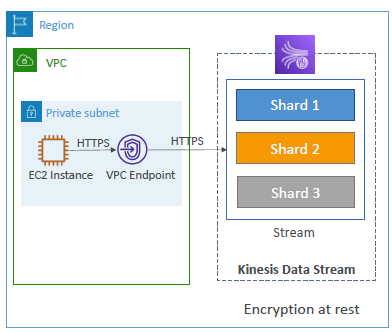

4. security

  • authorization: IAM polices
  • encryption : at fly and at rest
  • monitor API call with cloudTrail
  • vpc endpoint for private connection.
  • img_1.png

6. scaling

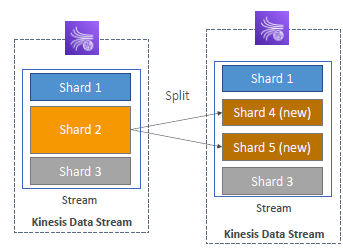

6.1 shard splitting

  • img.png
  • The old shard is closed and will be deleted once the data is expired
  • use new shard/s
  • split into 2 only in single operation.
  • so more recursive splitting for more.
  • increase cost.

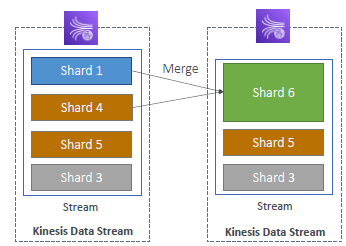

6.2 shard merging

  • img_1.png
  • low traffic on shard-1 and shard-2.
  • merge them, saves cost.
  • merge only 2 in single operation.

7. more

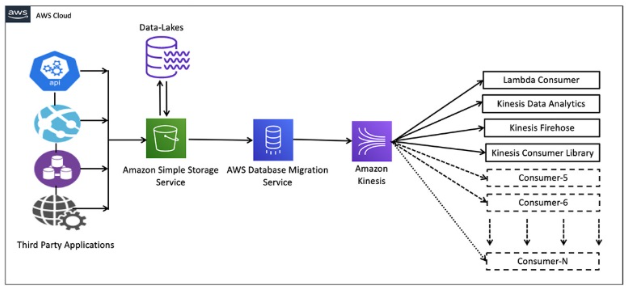

  • S3 --> DMS --> kinesis
  • img_1.png

8 hands on

  • https://www.udemy.com/course/aws-certified-developer-associate-dva-c01/learn/lecture/26101790#overview
    aws kinesis create-stream \
    --stream-name <stream_name> \
    --shard-count <number_of_shards>

aws kinesis list-streams

aws kinesis describe-stream \
    --stream-name <stream_name>

aws kinesis delete-stream \
    --stream-name <stream_name>

aws kinesis put-record \
    --stream-name <stream_name> \
    --partition-key <partition_key> \
    --data <base64_encoded_data>

aws kinesis put-records \
    --stream-name <stream_name> \
    --records '[{"Data":"<base64_encoded_data>","PartitionKey":"<partition_key>"}, {...}]'

aws kinesis get-shard-iterator \
    --stream-name <stream_name> \
    --shard-id <shard_id> \
    --shard-iterator-type <type>

LATEST                : Most recent data.                         <<<<
TRIM_HORIZON          : Oldest data.
AT_TIMESTAMP          : Specific time.
AFTER_SEQUENCE_NUMBER : After a sequence number.

aws kinesis get-records \
    --shard-iterator <shard_iterator>
