Encryption

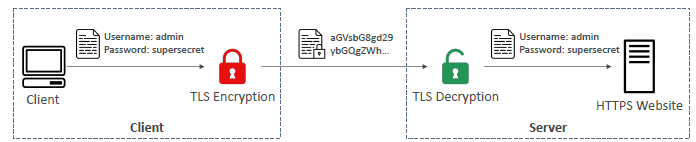

1. Encryption at Fly

• TLS / SSL certificate / HTTPS
• prevent from MITM

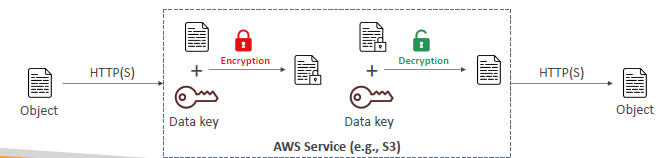

2. Encryption at Rest

• encryption/decryption happens at server.

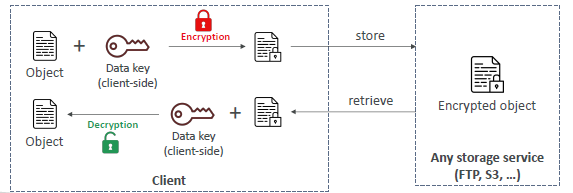

3. Client side encryption

• Don't trust server
• cant make KMS api call

# --- symmetric(AES-256) ---
- generate single key
  - private

- aws-service integrated with kms, uses it.   <<<

# ---  A-symmetric (RSA) ---
- generate 2 keys
  - public ( for encrypt)
     - access it, download it.
     - share with client
  - private ( for decrypt)

- for client-server comm                       <<<
- used for digital signature.

KMS

A. KMS: key types

1. AWS owned

• keys already created for services.
• key is FREE + API call is FREE
• eg
• sse-s3
• sse-sns
• ...
• sse-s3
• Fully managed by S3
  • Key rotation is not applicable for us.
  • Minimal key management overhead
• access control via S3 bucket policies
• No specific key tracking (basic S3 logs)
• No additional cost for encryption

---

2. AWS managed key

• request key from kms (sse-kms), CMK
• has kms-key alias
• provides you with an audit trail that shows when your CMK was used and by whom.
• pending deletion state for 7 - 30 days

  - key looks like - aws/serviceName/**** . eg
    - aws/rds/...
    - aws/ebs/...


• key is FREE + pay for API call

• needs to be rotated

• default : 365 days
• range : 90 - 2650 days
• have od rotation, at any time.

• automatic yearly

• scope: region

• for cross region copy will need 2 separate keys, once for each region
• eg: copy from region-1 to region-2
  • aws will decrypt using region-1-key
  • aws will re-encrypt using region-2-key

Integration

• IAM
• cloudTrail, check log for KMS usage/audit.
• secret manager : encrypt password with kms-key
• EC2: encrypt AMI with kms
• ebs, rds, s3-key, sqs-keys, etc
• lambda: encrypt env var
• ...
• all other service which requires encryption.

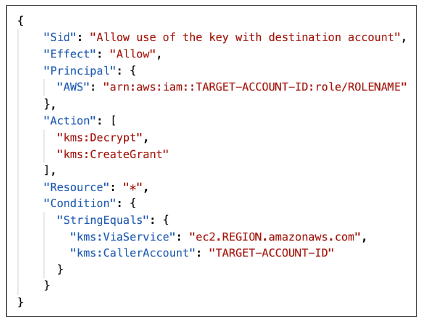

key Policy

• like s3 policy
• define who can access key.
• default policy
• already exists
• allows everyone in account
• custom policy
• eg:
  • for cross account access, restricted access with in acct, etc
  •
  • give access to specific services (lambda-fn)

    lambda-1 copy ebs snapshot from one region to another region
      - only lambda-1 must have access below 2 keys, no one else.
        - region-1-key (to decrypt)
        - region-2-key (to re-encrypt)


Regionality

single regional

• same key cannot be present in 2 diff regions.
• requires additional api call (for cross region)
• decrypt call

• re-encrypt call

• fact

• CANNOT convert an existing single-Region key to a multi-Region key.
• CANNOT share an AWS KMS key to another region
  • alternative : use multi-region key

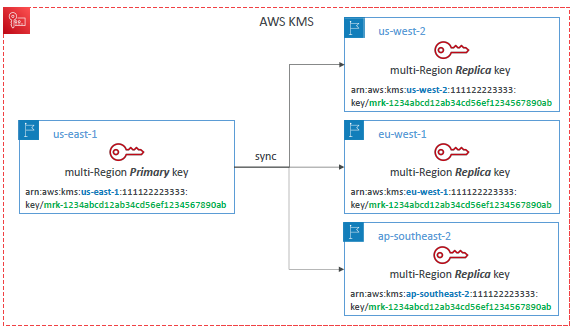

multi regional

• simplify but not recommended
• same key replicated in multiple region
• primary (policy-1)
• replicated key (policy-2, in another region)
• purpose
• encrypt in one region and use/decrypt in another region, seamlessly
• don't need to re-encrypt again with another region key

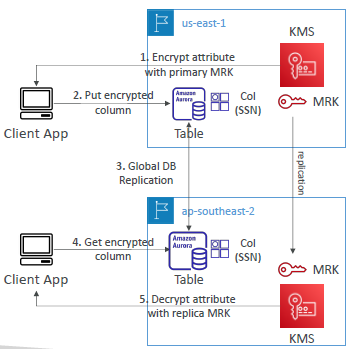

• use-case
• global Aurora DB
• global Dynamo DB

---

3. Customer managed key PAID

• customer upload its own key.
• import key into kms, which generated outside aws
• rotation: must enable it
• pricing
• 1$/month / key
• API calls : 0.03/10,000
• Dont support digital signature.

---

B. hands on

Compliance and regulatory requirements  SSE-KMS
High-performance applications           SSE-S3
Tracking key usage for audit logs       SSE-KMS
Minimal key management overhead         SSE-S3

- create key-1
    - symetric
        - type: aws owned
- choose : regionality
    - single region
- key policy
    - add json
    - or use console to define multiple options.
- rotation yearly : y/n

// READY

- action:
    - disable
    - schedule for deletion

- use aws-cli : encypti failtext with above key-1

C. Examples

1.1 S3 - CRR replication

• here

1.2 S3 - SRR replication

• bucket-1(key-1) --> replicate(decrypt with key-1 > encrypt with key-2) --> bucket-2(key-2)
• add permission for both keys to ...

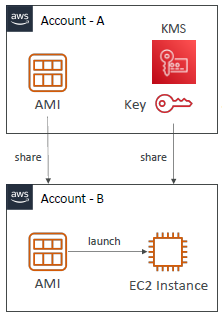

3. share AMI cross region

- share AMI : update launch-permission for AMI to allow access - share kms-key-1 : update kms-policy to allow access - Account-b >> decrypt with kms-key-1 >> re-encrypt with its kms-key-2(Account-b)

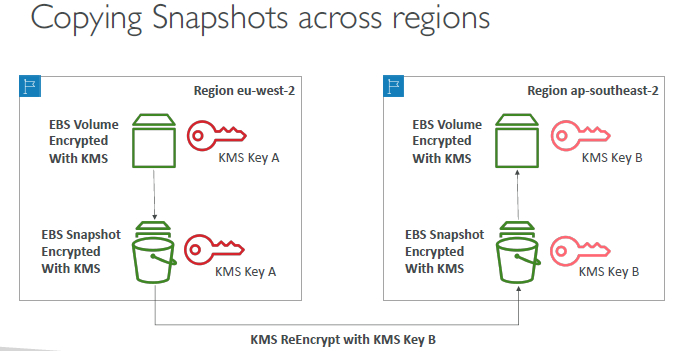

4. EBS volume (cross region)

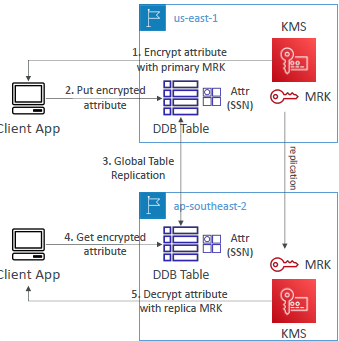

5 multi region key - Dynamo / RDS

---

Z. KMS: more ( for DVA)

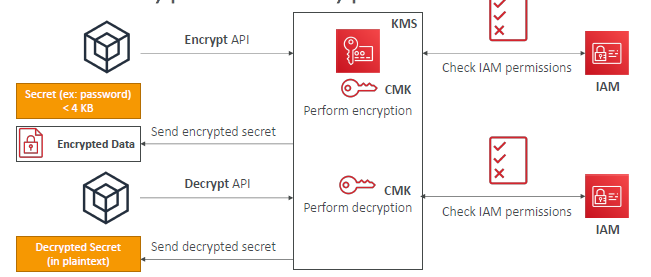

1. Encrypt/decrypt (< 4KB)

• straight forward, nothing new
•

---

2. Encrypt/decrypt (> 4KB) big files

• happens at client side
• generating data key: DEK
• using it for en/de
• can cache this and re-use
  • reduce the no of api call and save quota
• CLI/SDK simplifies it, so use it.

## === way-1 ===
## Step-1 generate DEK
- aws kms generateDatakey
  - plaintext DEK

- aws kms generateDatakey --CMK-1
  - plaintext DEK
  - plaintext DEK + CMK-1 ==> encrypted DEK (ciphertextBlob)

- aws kms generateDatakeyWithoutPlaintext --CMK-1
  - plaintext DEK + CMK-1 ==> encrypted DEK (ciphertextBlob)

## Step-2 perform encryption/decryption
...
...

# === way-2 ===
  pip i aws-encryption-sdk-cli

  aws-encryption-cli --encrypt \
  --input <input_file_or_directory> \
  --output <output_file_or_directory> \
  --wrapping-keys key=arn:aws:kms:region:account-id:key/key-id

  aws-encryption-cli --decrypt \
  --input <encrypted_file_or_directory> \
  --output <decrypted_file_or_directory>

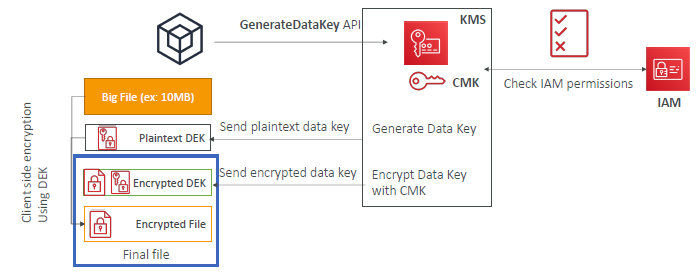

2.1 envelop encryption

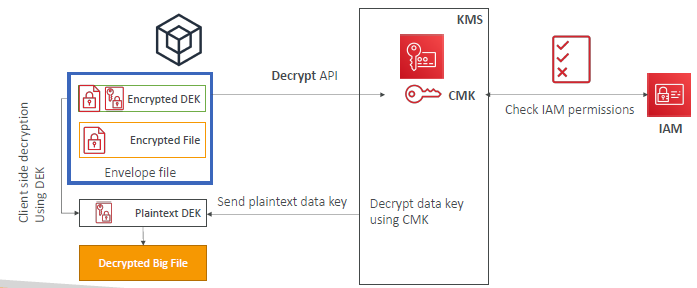

2.2 envelop de-cryption

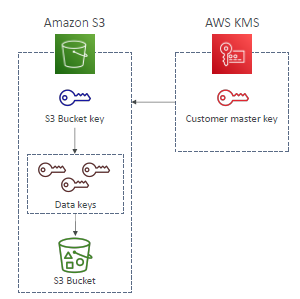

• eg with s3
•

---

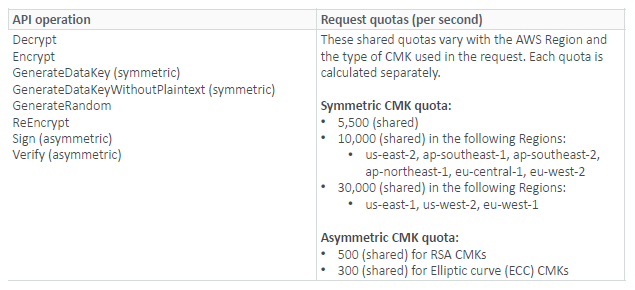

3. KMS request quota

• share quota across account.
• will get ThrottleException

---

EXAM

• 1

  on s3 bucket has to update object-1 and object-2.
  - encrypt object-1 with key-1
  - encrypt object-2 with key-2

  provison 2 sse-kms keys:

  aws s3 cp object-1 s3://your-bucket/ --sse aws:kms --sse-kms-key-id key-1
  aws s3 cp object-2 s3://your-bucket/ --sse aws:kms --sse-kms-key-id key-2


• 2 encryption context

• set of key-value pairs that contain additional contextual information about the data.
• encryption context offers another level of security for the encryption key.
• However, it is not useful for generating unique keys.
