  • IAM_01 https://chatgpt.com/c/3bfd592e-3ccc-403f-a61c-8e6ab72eacf5

A. IAM

1. intro

  • AWS CLI / SDK
  • signed API call with SigV4
  • Access keys ID + secret Access key

User / group

  • IAM user
  • federated user
  • outside AWS user
  • authenticated by an external identity provider (okta,google,fb) using SAML,OIDC, OAUTH2.0
  • external identity provider, is register with AWS account
  • IAM Group

policies

  • permission, JSON document
  • leverage special policy variable eg: ${aws:username}
  • attach to many principle: IAM user, IAM group, IAM role
  • Type:
  • AWS managed policies (fullSQSaccess, fulls3access, etc)
  • customer managed polices
    • Version Controlled
    • rollback
    • attach to many principle: IAM user, IAM group, IAM role
  • inline polices **
    • attach to single principle: IAM user, IAM group, IAM role
    • 1-2-1
    • delete principle, also delete inline policy.

Iam:PassRole and iam:GetRole

  • Broad-access-role / pipeline role has these action on all resource(role type)
  • that's why Broad-access-role, able to add any-role on lambda,ecs,etc

Audit

  • check below Reports
  • user level : access advisor, etc
  • account level : credential report, etc

good practice

  • Monitor API calls made by a user in CloudTrail
  • root user + MFA
  • Grant Least Privilege
  • don't store IAM key credentials on EC2
  • On premise server must call STS to obtain temporary security credentials.
  • dont reuse role, create separate.

2. IAM role :green_circle:

  • service role is pre-defined for AWS services 🎯 👈
  • AWS Lambda execution role, EC2 Auto Scaling role, RDS service role

  • so, automatically add current-service as trusted entity. no need to add again.

  • Designed to provide temporary security credentials by trusted entities/principle :

  • other aws-service - ec2, s3,etc
  • cross account service/user
  • has 2 things:
  • permission policy
    • [ effect, action, resource, condition ]
  • trusted entities (role trust policy)
    • which principals (trusted entities) are allowed to assume the role.
  • use case
  • service to service communication.
  • lambda role --> s3,sqs,ec2,etc
  • ecs/eks --> s3,sqs,etc
  • federated user, assumes role - Broad-access-role
  • service account in k8s assumes role (IRSA)
  • cross account access
    • create role for other account-2 to assume role and access rsource on account-1

3. Resource Policy :green_circle:

  • has principle
  • who amd what are allowed to access 👈
  • eg:
  • s3 policy
  • sqs policy
  • API gateway policy
  • ...

4. Permission Boundary :green_circle:

  • principle-1
  • attach IA-policy-1
  • attach Permission-Boundary-policy-1
  • intersection of both will be effective

  • img_1.png

  • apply on: 👈

  • IAM roles
  • IAM users
  • IAM groups - N0 ⭕️ 🎯
// example:
boundary-1 : allow  `ecs,lambda,s3` only
  - attach to iam-user-1
  - iam-user-1 --> attach iam-policy(`sqs` access)
  - iam-user-1 cannot access sqs, since its outside boundary.

5. STS : secure token service

sts:assumeRole

  • provides temporary security credentials(Access key + secret) + token(expiry)

sts:assumeRoleWithSAML

sts:getSessionToken

  • equivalent to gimme-aws-creds
  • get aws accessID,key,token,etc with MFA token
  • add condition -> aws:MultiFactorAuthPresent:true

6. scenarios

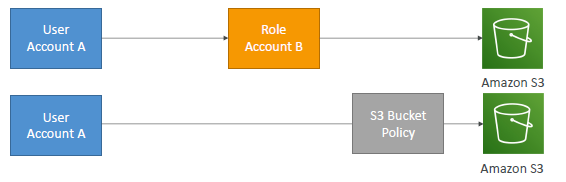

6.1. cross account access

  • AWS-1(user-11) --> has to access --> AWS-2(resource : R1)

  • option-1 : ResourceBasedPolicy)

  • R1:Policy > update/add > allow AWS-1(user-11)

  • 👉 For S3,SQS,SNS,Lambda - use resource-based-Policy

  • option-2 : IAM policy

  • First, inside AWS-2
    • create role-1 > allow AWS-1(user-11) to R1.
    • create policy-1 : allow user-11 to assume role-1
  • Next, user-11 assume role-1 and access it, but
    • user-11 will first give up all the original permission.
    • then assume/get role-1 permissions.
  • 👉for Kinesis Db - use iam role

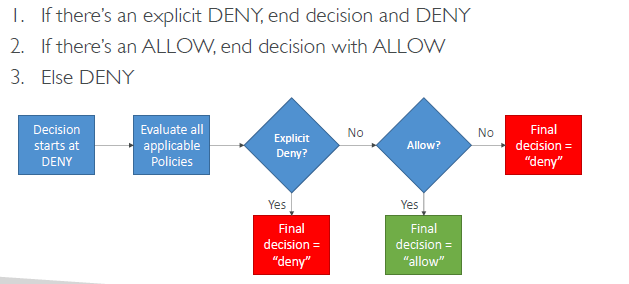

7. Evaluation logic :yellow_circle:

  • img.png

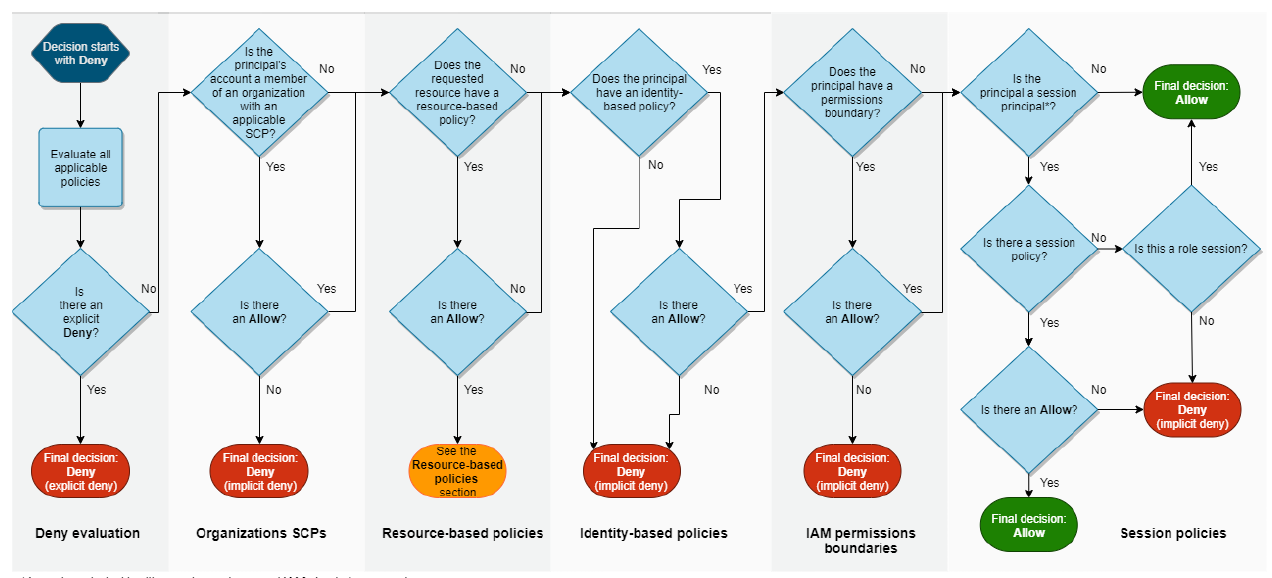

  • img_2.png
  • order: 👈
    • explicit deny
    • allow
    • SCP
    • resource policy
    • principal's IAM policy
    • permission boundary
    • AWS CloudFormation a global service (temp access)

8. Advance Polices example

Conditions

  • eg-1 Allow Access Based on IP Address

            {
            "Effect": "Allow",
            "Action": "s3:*",
            "Resource": "arn:aws:s3:::example-bucket/*",
            "Condition": {
                "IpAddress": {
                    "aws:SourceIp": "203.0.113.0/24"
                },
                // always AND
                "StringEquals": {
                        "aws:SourceVpc": "vpc-12345678"
                }
            }
        }

  • eg-2 Allow Access During Specific Time Period

                "Condition": {
                "DateGreaterThan": {
                    "aws:CurrentTime": "2024-07-19T09:00:00Z"
                },
                "DateLessThan": {
                    "aws:CurrentTime": "2024-07-19T17:00:00Z"
                }
            }

  • eg-3 Allow Access Based on MFA Authentication

                "Condition": {
                "Bool" / "BoolIfExist": {
                    "aws:MultiFactorAuthPresent": "true"
                }
            }

  • eg-4 tag

    "Condition": {
                "StringNotEquals" / "StringEquals": {
                    "ec2:ResourceTag/Environment": "Production",
                    "aws:principleTag/Departmnet": "d1"
                }
            }

  • eg-5
    #  Users belonging to the IAM user group can terminate an Amazon EC2 instance in the **us-west-1** region
#  when the user's source IP in 10.200.200.0/24
{
    "Version":"2012-10-17",
    "Id":"EC2TerminationPolicy",
    "Statement":[
        {
            "Effect":"Deny",
            "Action":"ec2:*",
            "Resource":"*",
            "Condition":{
                "StringNotEquals":{
                    "ec2:Region":"us-west-1"
                }
            }
        },
        {
            "Effect":"Allow",
            "Action":"ec2:TerminateInstances",
            "Resource":"*",
            "Condition":{
                "IpAddress":{
                    "aws:SourceIp":"10.200.200.0/24"
                }
            }
        }
    ]
}
  • more eg :
  • "aws:RequestedRegion": "eu-west-1" : allow running Amazon EC2 instances only in the eu-west-1 region 🎯

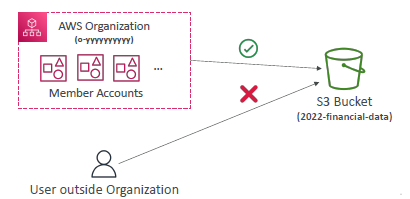

  • "aws:priciplaOrgId": "0-xxxxxxxxx"

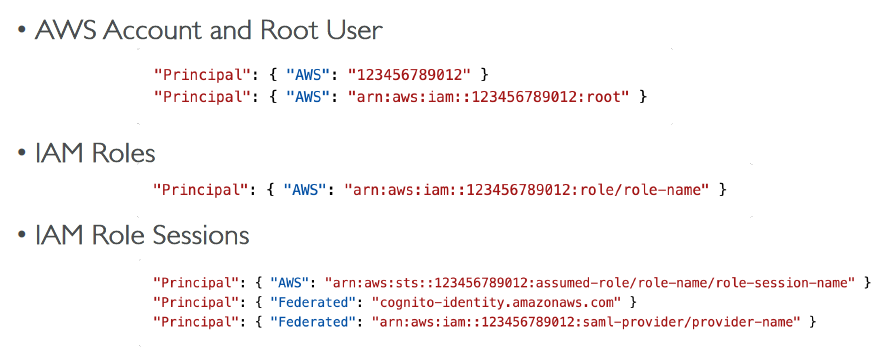

  • img.png

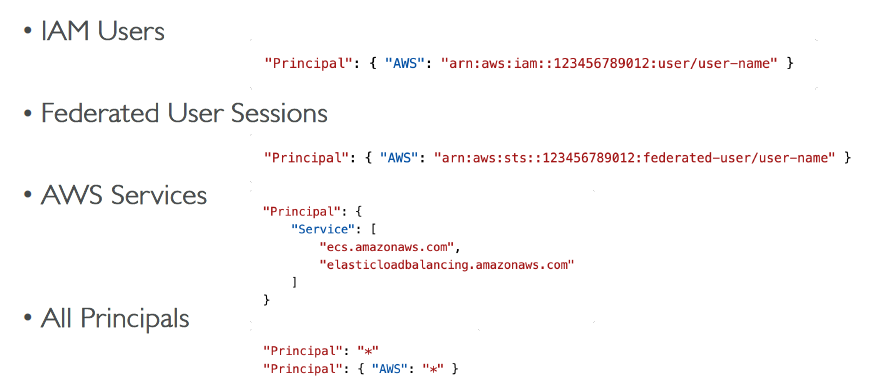

9. principals
