Cloudwatch : logs 📚

  • expiration policies (defined at log-group level)
  • never expire
  • set 1 day to 10 years
  • CloudWatch Logs do not expire unless a retention policy is set. 👈
  • logs are encrypted by KMS

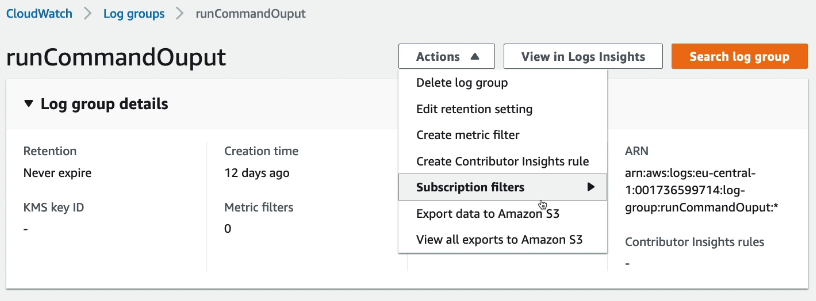

1 log group

  • for each application create a log group
  • img_3.png

2 Log streams

  • instance within log group
  • has log event

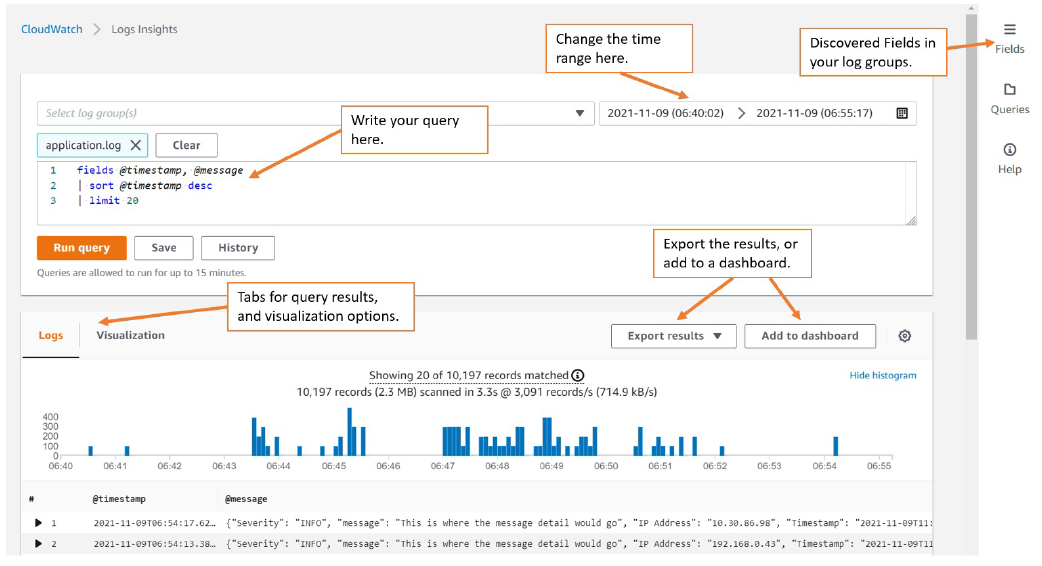

3 log insight

  • img.png
  • query engine
  • on historical logs-group on same/cross aws account
  • log query >>> get result >>> export / visualize on CW::dashboard
  • purpose built query language
  • find common query example on console itself.
  • fetch event, sort event, filter event, save and add to CW::dashboard.

4 log source

  • SDK
  • java/py app running on
  • ECS/EKS
  • container-agent : collect from containers
  • AWS Lambda
  • lambda-agent : collect from function logs
  • VPC Flow Logs
  • Route53
  • more:
  • API Gateway
  • Elastic Beanstalk : internal-app-agent
  • CloudTrail
  • EC2 / on-prem server
  • but install agent

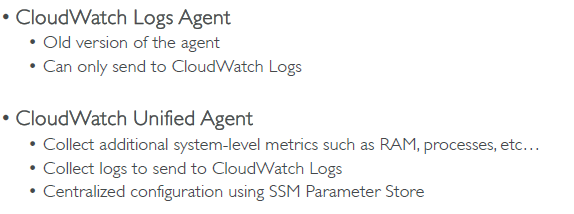

    • CloudWatch Unified Agent : new
    • CloudWatch log Agent : old
    • img_1.png
    • img.png

5 export logs

via CreateExportTask

  • destination: Amazon S3
  • not real time
  • batch export
  • takes up to 12 hrs

via log-group subscription-filter

  • KDS Kinesis Data Streams
  • KDF Kinesis Data Firehose
  • Lambda
  • OpenSearch
  • img_2.png

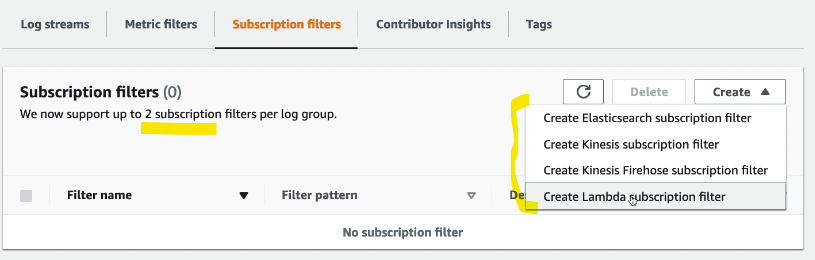

6 log subscription-filter

  • can create max=2
  • subscribe to log group
  • also, can also to listen/subscribe to multiple same/cross account's log group

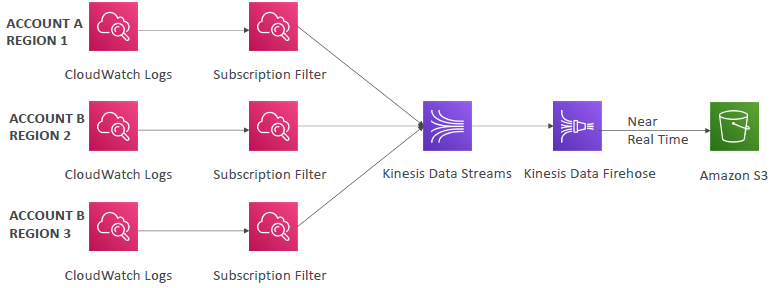

  • and perform log aggregation:
  • img_2.png

  • ignore above action, check below.

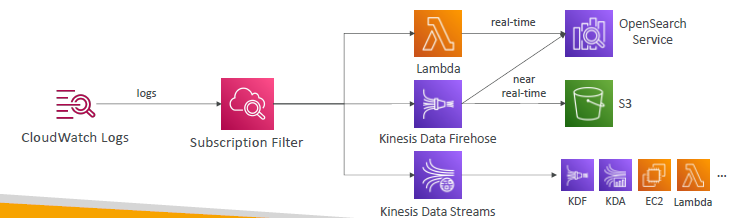

  • listener action/s:

  • do some processing with Lambda
  • deliver (KDF)
  • stream (KFS)
  • img_1.png

7 live trail

  • for debugging
  • select log-group > log-instance (optional) > start trail
  • 1 hr free every day
  • close after done.

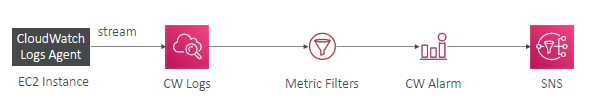

8 metric filter

  • log-group > create metric on pattern-1
  • max=3 dimension
  • later on create alarm around this metric. 03_CW-Alarms.md
  • img.png

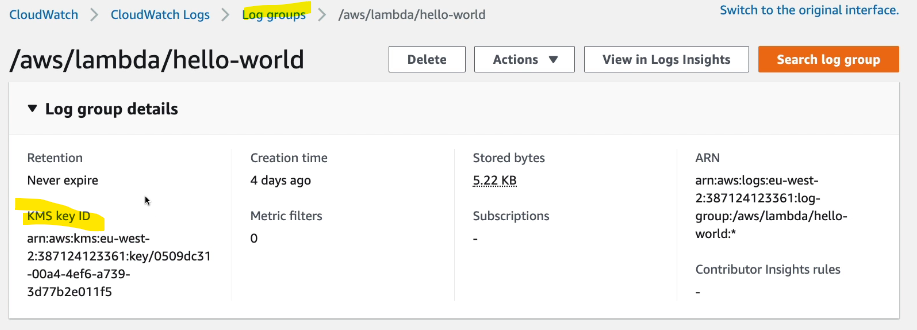

9 encrypt log

  • at log-group level
  • can create loggroup with KMS encryption
  • can also associate existing loggroup with kms key 👈
  • using CLI
    • aws logs associate-kms-keys --log-group-name --kms-key-id --region
  • not from console.
  • Dont forgget to update key policy as well, to allow loggroup.
  • img.png

??

  • dashboard
  • insight-rule-1 to ingest dashboard data
  • insight-rule-2
  • ...
  • powered by sagemaker
  • eg:
  • lambda-insight,
  • CW-container-insight
  • app-insight
  • cw-contributor-insight
    • build from VPC logs. etc
    • find heaviest n/w user, urlWithMostError, IPs,

99. hands on

- create lambda
- run multiple time
- lambda "log-group-1" created :
    - log instance-1
    - log instance-2

// actions on  log-group-1 :
// 1. export to s3

// 2. create subscription-filter (max=2)
action: KDF > S3

// 4 . create log-stream-1 from log-group-1 > start live tail
...
