AWS X-ray 📚

A. Intro

  • analyze traces visually

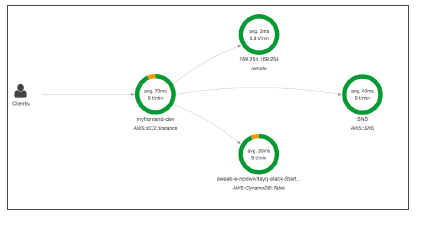

  • img_1.png
  • Understand dependencies in a microservice architecture
  • compatible services
  • AWS Lambda, API Gateway
  • Elastic Beanstalkok
  • ELB
  • ECS, EC2

  • on-prem server with daemon installed

  • concepts

  • request > has component/s (each adds its traces) > has segments and/or sub-segments
    • Segments: each component (application / service) will send traces having segment/s
    • Subsegments: if need to more details in your segment
    • Trace: segments collected together to form an end-to-end trace
    • Sampling: decrease the amount of requests sent to X-Ray, reduce cost
    • Annotations: Key Value pairs used to index traces and use with filters
    • Metadata: Key Value pairs, not indexed, not used for searching

B. SDK and daemon

  • SDK

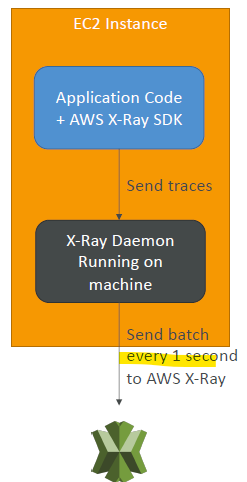

  • img.png
  • SDK will capture:
    • Calls to AWS services
    • HTTP / HTTPS requests
    • Database Calls (MySQL, PostgreSQL, DynamoDB)
    • Queue calls (SQS)
  • X-Ray daemon
  • low level UDP packet interceptor
  • AWS Lambda / other AWS services already run the X-Ray daemon 👈
  • can send traces in cross account

C. Sampling rule

  • control the amount of data that we record.
  • no code changes, just configure it for deamon. 👈

  • https://www.udemy.com/course/aws-certified-developer-associate-dva-c01/learn/lecture/19730096#overview

  • Reservoir (Reservoir-based sampling)

  • Defines the number of requests to sample per second, before the fixed-rate sampling is applied.
  • Rate (Fixed-rate sampling):
  • Specifies the percentage of requests to sample.
  • 0.05 === 5 %
  • 1 == 100 %

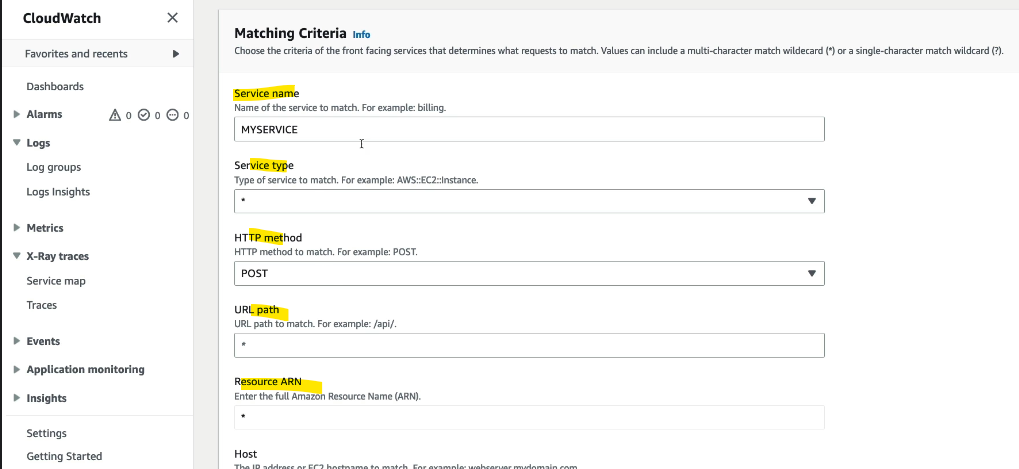

  • define matching criteria

  • img.png

  • default : [ Reservoir=1/sec, rate=5%, criteria=* ]

  • sample-rule-1 (priority 1), sample-rule-2 (priority 9999), ...
  • rule-2 will be applied

B. X-Ray Security:

  • IAM for authorization
  • KMS for encryption at rest

C. X-Ray with:

C.0 Ec2/on-prem server

  • Ensure the EC2 IAM Role has the proper permissions
  • Ensure the EC2 instance is running the X-Ray Daemon
  • application code is instrumented with the X-Ray SDK

C.1 AWS lambda

  • Ensure IAM execution AWSX-RayWriteOnlyAccess role
  • Enable X-Ray Active Tracing
  • application code is instrumented with the X-Ray SDK

C.2 beanStalk

  • includes the x-ray deamon, just enable it.
  • .ebextensions/xray.config
  • Upload this file as part of your application source bundle
    option_settings:
  aws:elasticbeanstalk:xray:
    XRayEnabled: true
  • from console:

  • Enable X-Ray Daemon checkbox

  • next, ec2 instance role:

  • attach AWSXRayDaemonWriteAccess role

  • application code is instrumented with the X-Ray SDK

  • attach permission/role

C.3 ECS

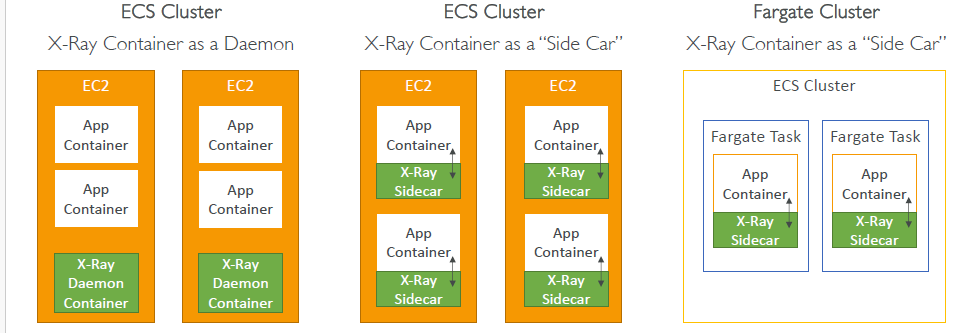

  • daemon img_2.png

  • task definition

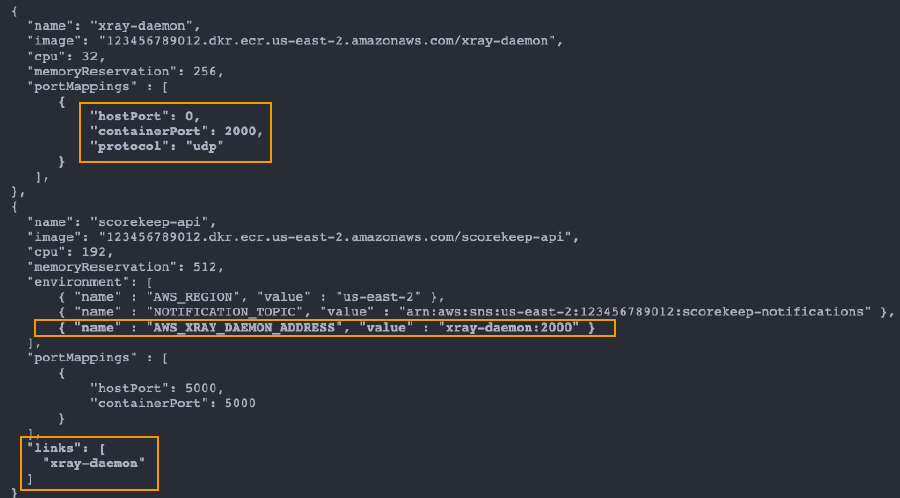

  • container-1 : deamon (2000:udp)
  • container-2 : app itself
  • link both container from n/w standpoint using link
  • img_3.png

D. X-Ray IAM permission

Put

- `PutTraceSegments`: Uploads segment documents to AWS X-Ray

- `PutTelemetryRecords`: Used by the AWS X-Ray daemon to upload telemetry.
  - SegmentsReceivedCount
  - SegmentsRejectedCounts
  - BackendConnectionErrors…

- `GetSamplingRules`: Retrieve all sampling rules (to know what/when to send)

- `GetSamplingTargets & GetSamplingStatisticSummaries`: advanced

Get

- GetServiceGraph: main graph

- BatchGetTraces:
  Retrieves a list of  traces specified by ID. Each trace is a
  collection of segment documents that  originates from a single request.

- GetTraceSummaries:
  Retrieves IDs  and annotations for traces available for
  a specified time frame using an  optional filter. To get the full traces,
  pass the trace IDs to BatchGetTraces.

- GetTraceGraph:
  Retrieves a service  graph for one or more specific trace  IDs.
