Cloudtrail

1. Intro

  • enabled by default
  • history of events / API calls made within your AWS Account
  • Provides governance, compliance and audit for your AWS Account.
  • captures all Account logs and Cloudtrail:events
    • 90 days default retention
    • for further analysis/investigation,
    • log/event >> s3 >> athena

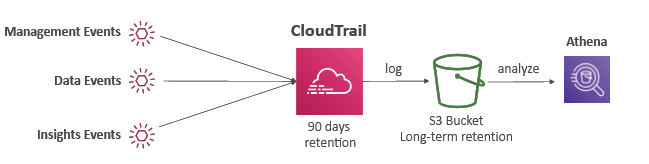

    • img.png
  • eg:
  • DynamoDB table create API called --> logged in CT + event sent to eventBridge,

  • similar endless API calls.

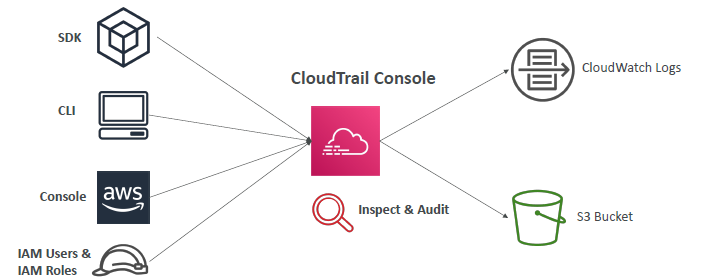

  • img_1.png

2. Cloudtrail : events

Data Events

  • (on/off)
  • Operations on resources data
  • eg:
  • Amazon S3 object-level activity (GetObject, DeleteObject, PutObject,etc)
  • lambda invoke

Management Events

  • (on) : cannot disable 👈
  • Operations on resources
  • eg:
  • Configuring security (IAM AttachRolePolicy)
  • Configuring rules for routing data (Amazon EC2 CreateSubnet)
  • Setting up logging (AWS CloudTrail CreateTrail)
  • Management Read Events
  • Management Write Events

insight Events

  • (on/off)
  • Management-Events --> CT:Insight > (analyze write event, find anamolies and generate) --> insight-Events
  • event for unusual activity
  • eg:
  • inaccurate resource provisioning
  • hitting service limits
  • Bursts of AWS IAM actions
  • Gaps in periodic maintenance activity

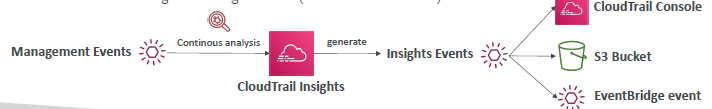

  • img_2.png

3. CloudTrail Lake service 🎯

  • fully managed, quick option.
  • CloudTrail Lake is a managed data lake solution specifically designed for capturing, storing, and analyzing CloudTrail events.
  • can store event/s for many years. set retention-period like 2years
  • built-in query functionality (via SQL) to perform audits and analysis.
  • Alternatively, integrate with
    • Amazon Athena or other analytics tools for more advanced queries.

Scenario: whizlab #2.37
- capture api call for resource access and changes in an aws acocunt
- store then 2 years
- perform audit and analysis
need quick solution

option-1 : cloudtrail lake ***
option-2 : cloudtrail:event --> S3 --> athena

4. Architecture Example

integration with EventBridge

  • already integrated

  • all events end up going to default bus

  • eg: get notified when user assuming role

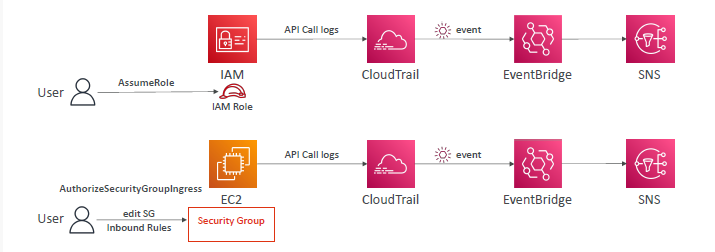

  • img_4.png

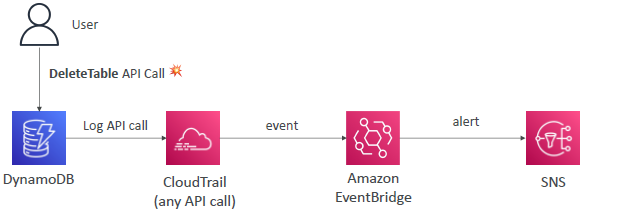

  • img_3.png
