AWS config (regional)

1. Intro

  • Records: aws-resource auditing and Compliance using config-rules.

  • On event of changes/modification on AWS resources => evaluate these rule, then:

  • take remediation action

  • and/or, send notification

  • cannot not deny from evaluating. 👈

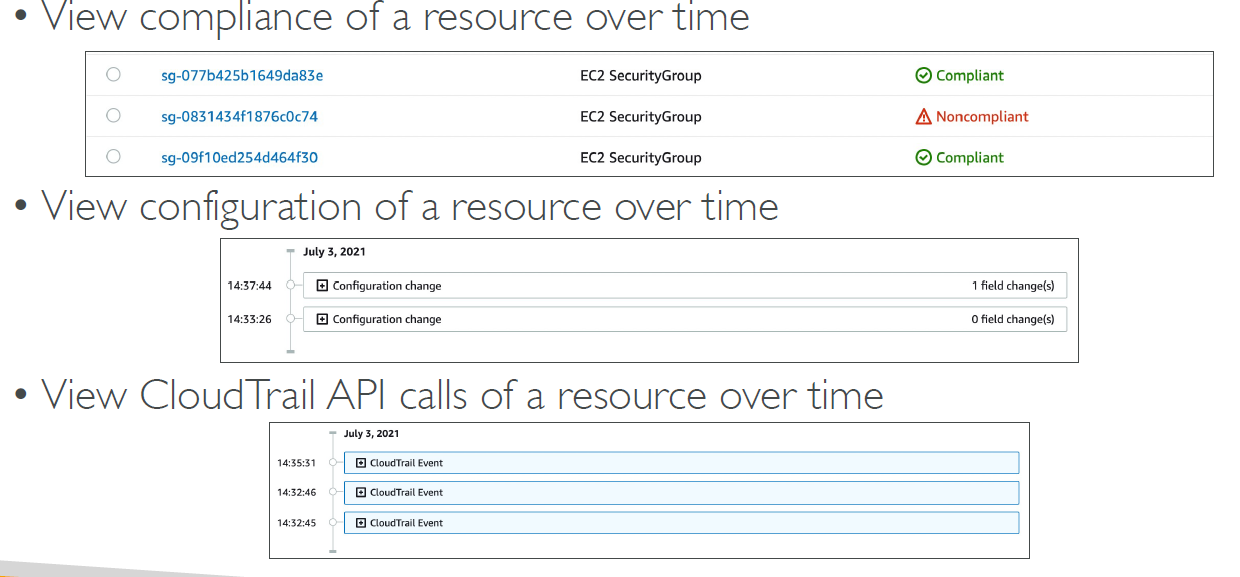

  • for each aws-resource, on console can view :
  • configured rules
  • compliance status
  • CloudTrail api call
  • event table :
    • timeline of changes and other event.
  • img.png

2. Config Rule

  • Json configuration

2.1 AWS managed

  • already defined, 75+
  • eg:
  • Check unrestricted SSH access to sg
  • Do we have publicly accessed s3 buckets
  • Any changes made on ALB

2.2 Custom rules

  • define using Lambda function
  • eg:
  • evaluate :: EBS disk == type gp2
  • evaluate :: EC2 instance == t2.micro
    • all instance
    • by instance.id

3 Action on compliance failure

3.1. remediation action

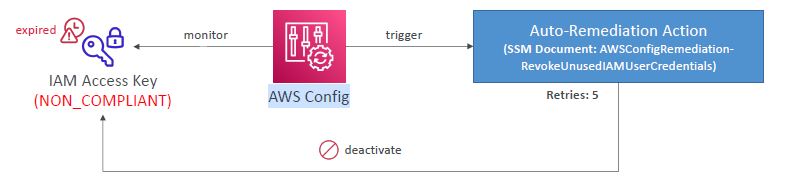

  • SSM Automation Document
  • custom Automation Document, eg:
  • img_1.png

3.2 notification

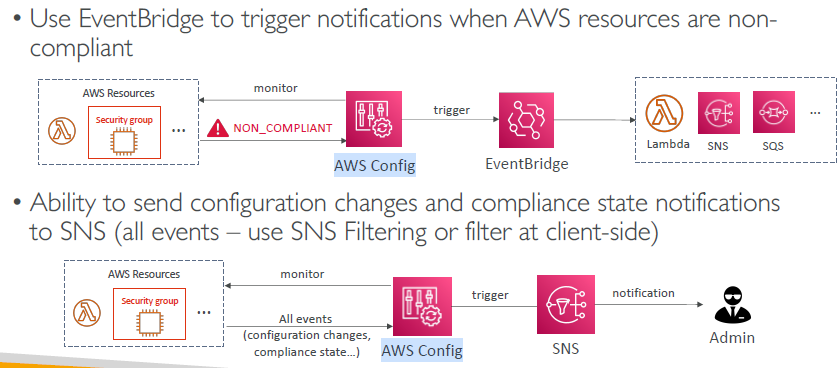

  • use Event-Bridge Event
  • use SNS -> filter -> subscriber
  • img_2.png

4. Pricing:

  • not free tier.
  • $0.003per configuration item/rule recorded per region,
  • $0.001 per config rule evaluation per region

5. hands on

- AWS config, option:
    - Record for all resource **
    - Record for specfic resource
- create role-1
- choose delivery method: S3 bucket ** / cross acct bucket
- stream config change to SNS : T/F
- Rules (75 + ) : checkbox
    - approved amis by Id > enter parameter/s : ami id
    - approved amis by tag
    - restricted-ssh > no parameter
        - play around > add/remove inbound rule for port 22/ssh
        - and check compliance status
