Architecture

key points

  • container/s not completed isolated and share host kernal/os, but isolated based namespaces.
  • all the process run by container/s, runs on the host but in their own Namespaces.
  • process isolation : a container cannot see anything out of its namespace.
  • ps aux show all process
  • a - all user
  • u - user-oriented format
  • u - includes daemon process
  • same process has diff pid in diff namespace.
  • by default, docker runs container with root user on host (with less Linux capability)
  • dockerfile > USER < userID >
  • docker run --user option
  • Docker host : on host machine install docker
  • eg: docker desktop on out laptops.
  • all containers runs on this docker host.
  • .dockerignore :
  • Specifies files/directories that should be excluded when building a Docker image.
  • Reduces build context size
  • Prevents sensitive files (e.g., .env, credentials.json) from accidentally being copied into the image.

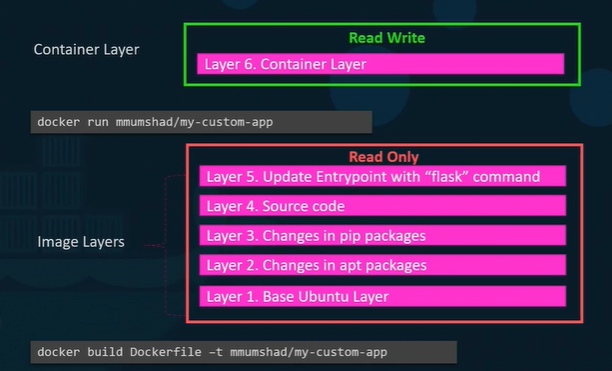

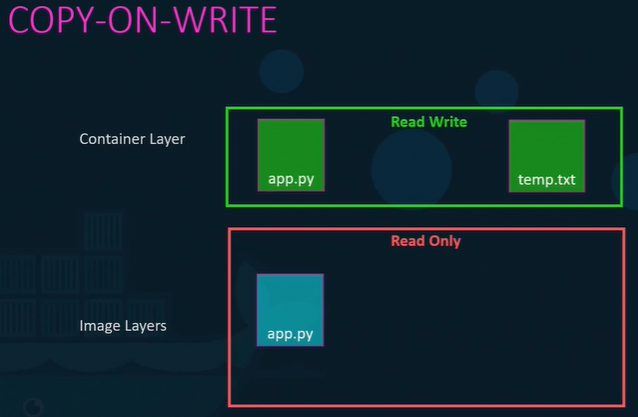

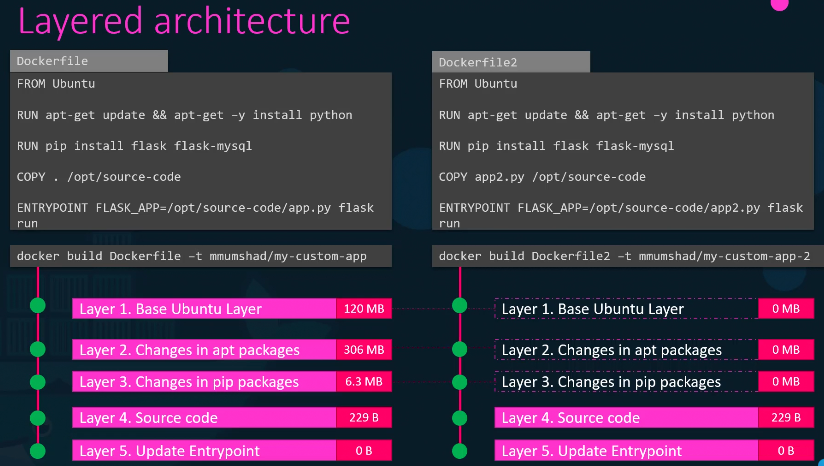

Layered Arch

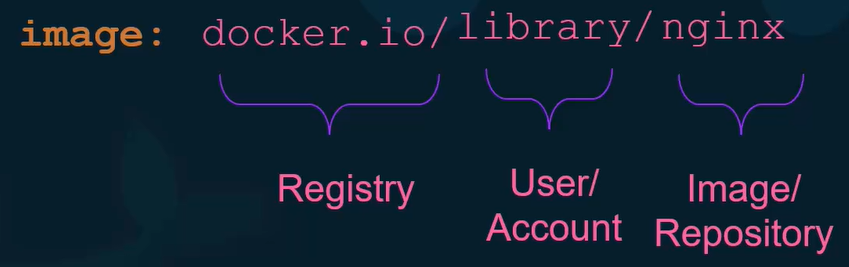

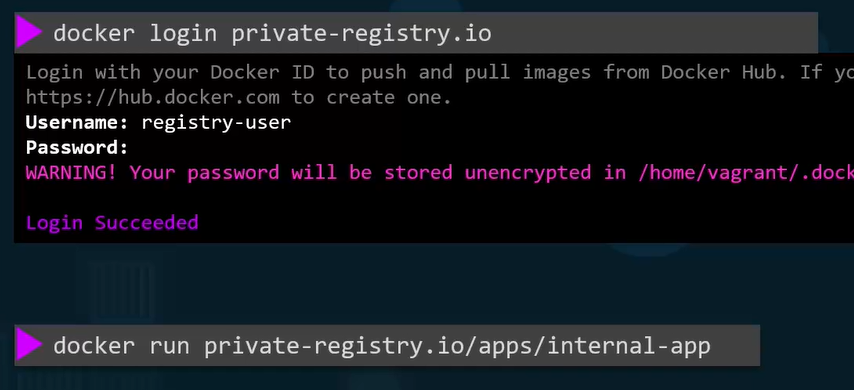

Registry



Container Security:

  • --user < userID >
  • --cap-add/drop < CAPABILITY >
  • Add these at:
  • container level : img.png
  • pod level : img_1.png
  • both present, container will override.
  • pod-1
  • c1
    • process-1: port-1
    • process-2 : port-2
    • ...
  • c2
    • process-11 : port-11
    • process-22 : port-22
    • ...

Docker's architecture

  • Docker Engine / container-d
  • core runtime that powers Docker.
  • It is a lightweight, modular application consisting of:
    • Docker Daemon (docker-d) 👈
    • A background service
    • manages Docker objects (containers, images, networks, volumes).
    • Handles container lifecycle
    • Pulls/pushes images from/to registries.
    • create layers
    • REST API – Allows interaction with the daemon programmatically (e.g., via CLI or SDKs).
    • CLI (optional)
    • container-d
  • Docker Images
  • read-only template used to create containers
  • each instruction in a Dockerfile creates a new layer
  • Application code + dependencies (libraries, runtime)
  • Metadata (environment variables, default commands)
  • Container
  • runnable instance of an image
  • Isolated process running on the host OS via namespace.
  • Shares the host kernel
  • but has its own filesystem
    Docker Client (CLI)
       ↓ (REST API)
Docker Daemon (dockerd) → Manages → Images → Containers
       ↑
Registry (Docker Hub, ECR, etc.)
