StatefulSet

  • additional points:
  • pod come up sequentially / ordered by default.
    • spec > podManagemnetPolicy : OrderedReady (default)
    • change to Parallel, if needed.
  • no random pod name, each pod has ordinal-index at end.
  • first pod is always MASTER
  • same like Deployment. Replace Deployment with StatefulSet.

headless service ( optional )

  • scenario: mysql-pod-0 MASTER (R/W), mysql-pod-1 (R), mysql-pod-2 (R) - write happen only from MASTER.
  • create regular service with ClusterIP: None + ( selector and ports ). eg: mysql-h
  • headless service, creates DNS a-record to access pod directly only if:
  • add subdomain and hostname for pod are present., adding manually bad. All ns will be same.
  • rather add serviceName in StatefulSet, it automatically assigns subdomain(mysql-h) and hostname(mysql-index) for pod/s (better).

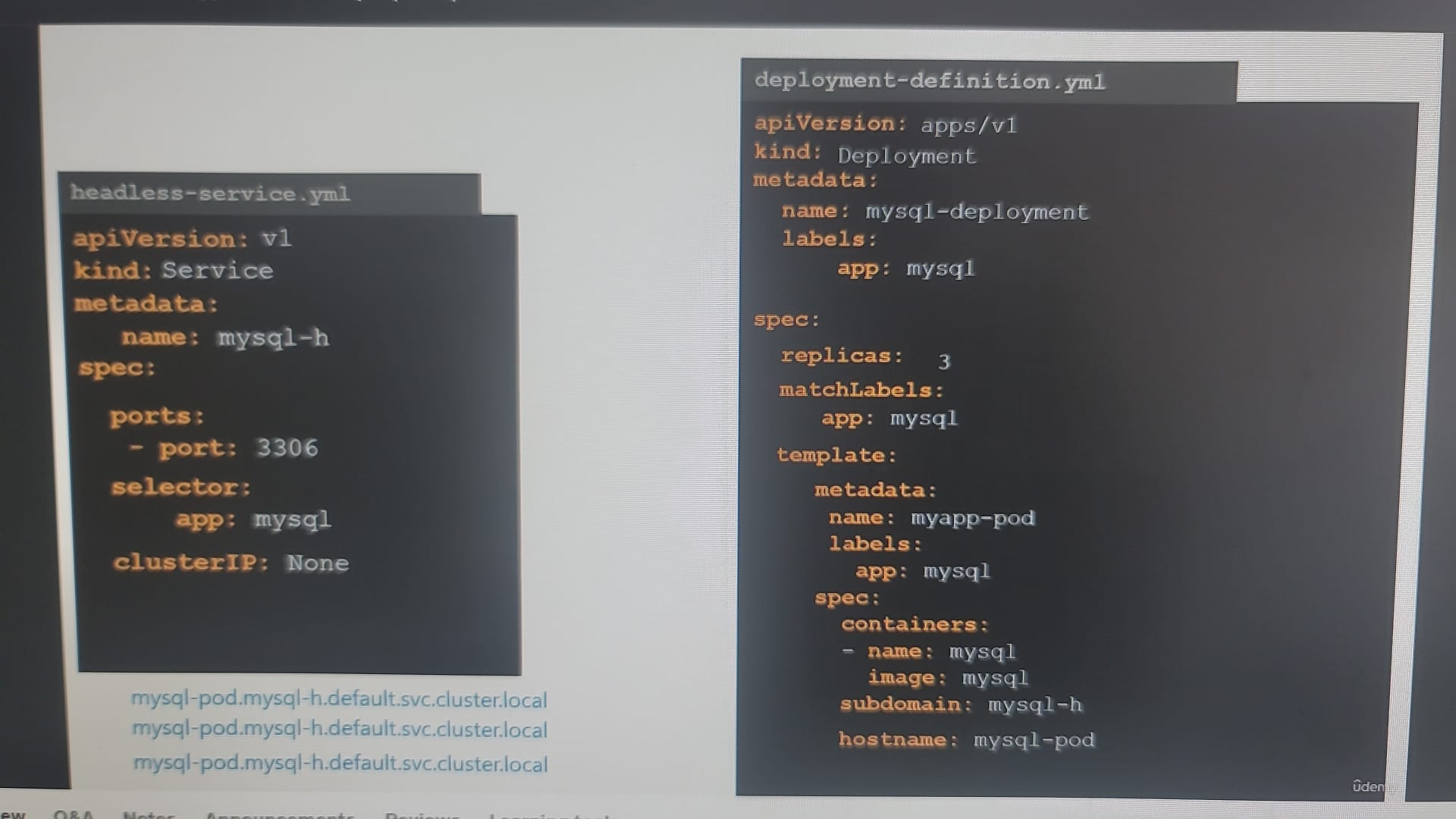

  • img_1.png

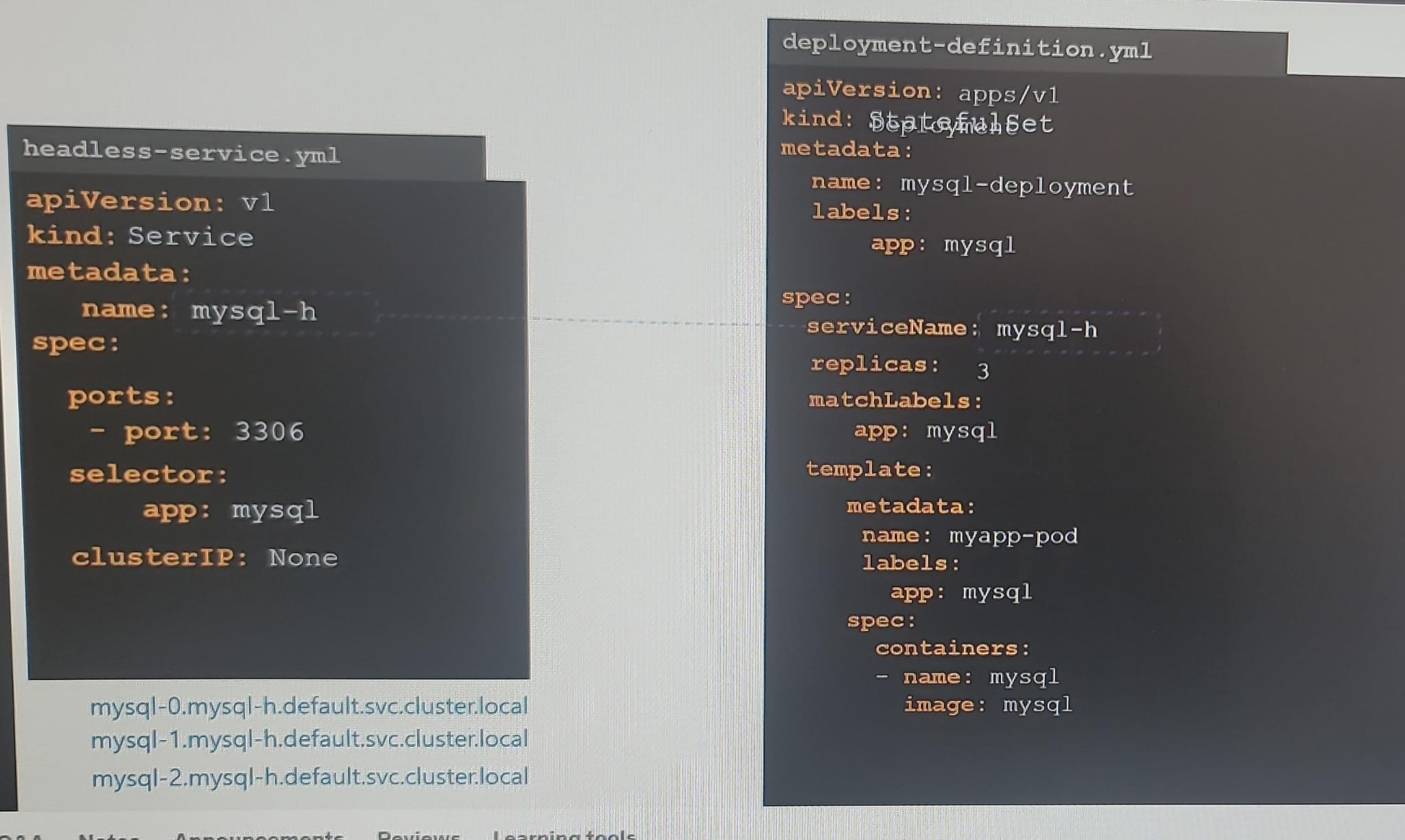

  • img.png
  • dns
  • headless-service (No ClusterIP): pod-1.service-1.namespace-1.svc.cluster.local
  • service (clusterIP): service-1.namespace-1.svc.cluster.local

  • example : mysql-pod (DB replica)

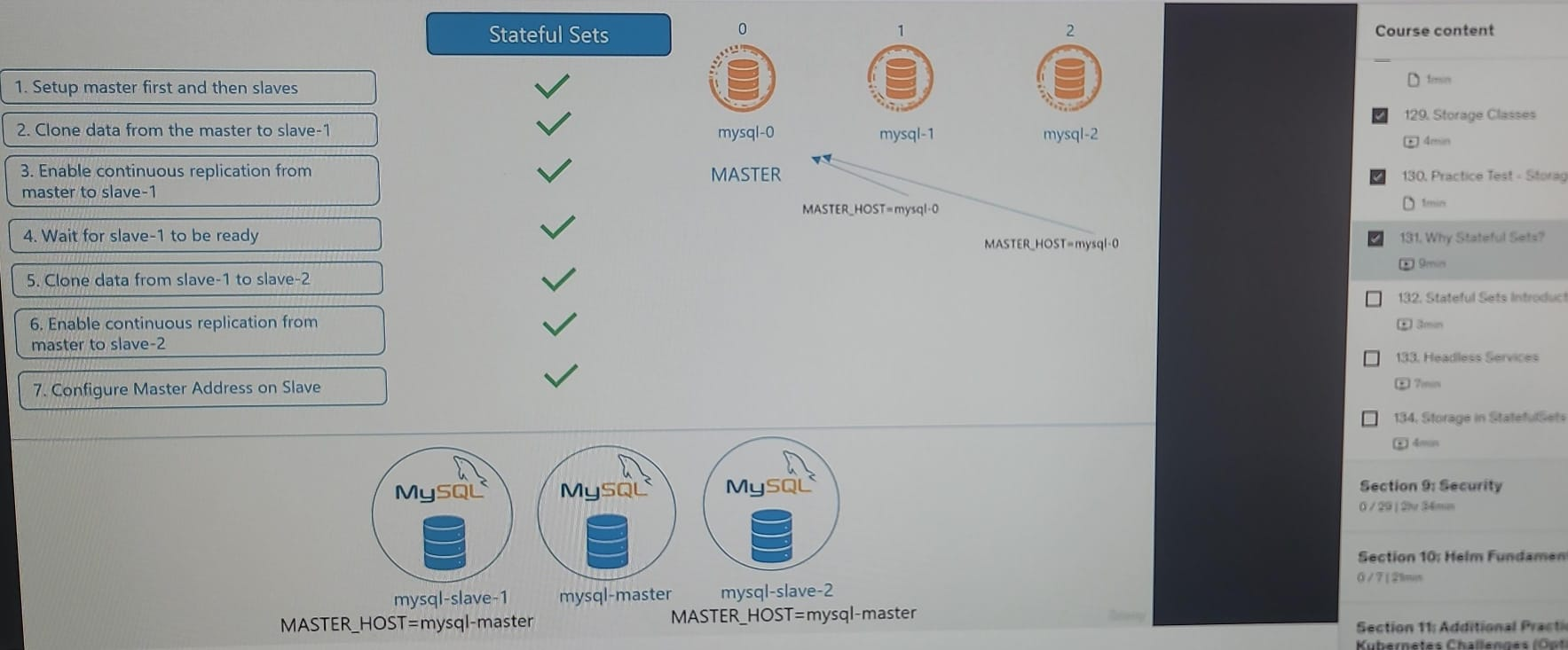

  • img.png

volume

all pod needs common

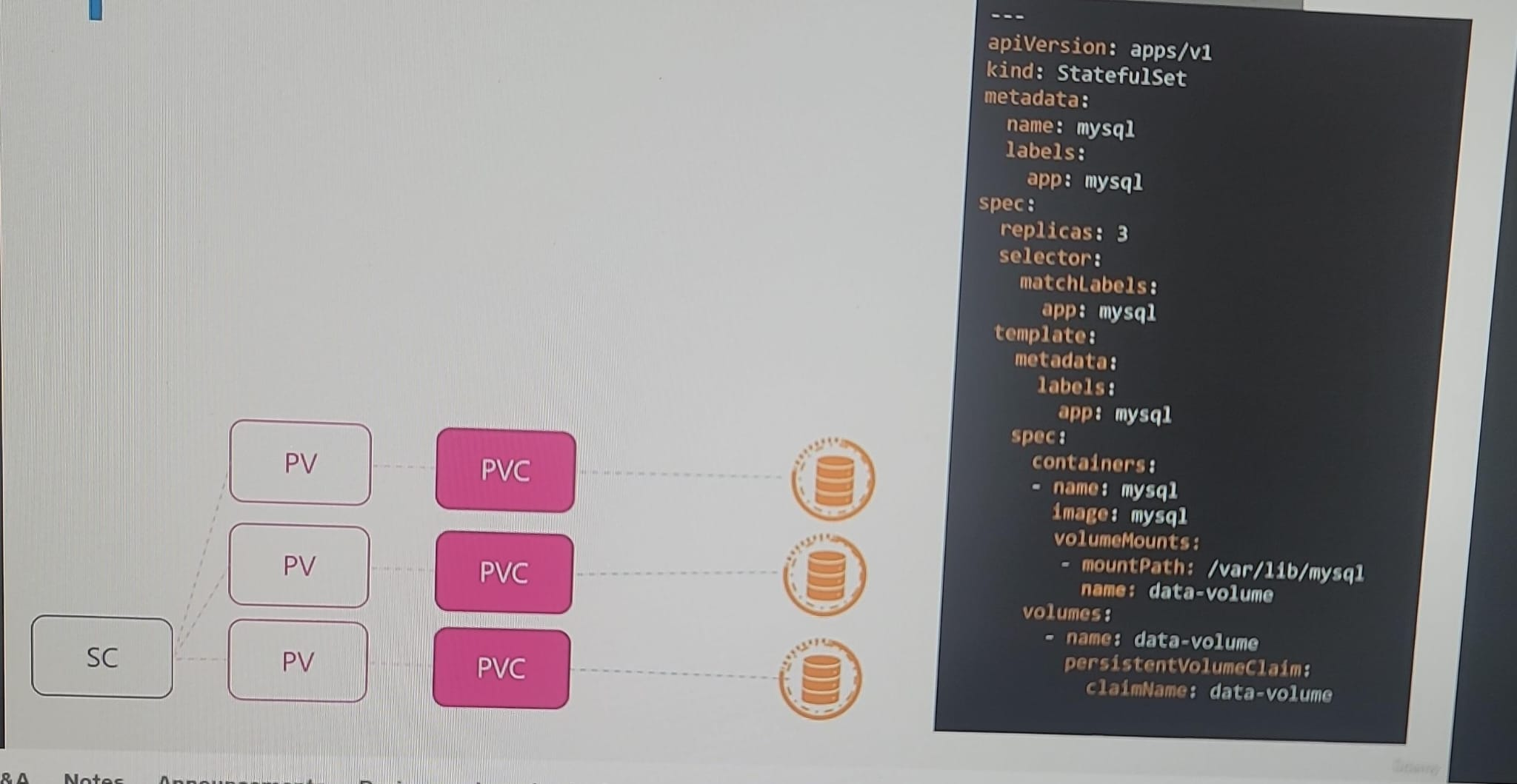

  • img_3.png

separate volume for each pod.

  • add volumeClaimTemplate in statefulSet. (outside spec)
  • inside section is PVC only.
  • if pod goes down, new pod will be attached to same PVC. thus stable storage.

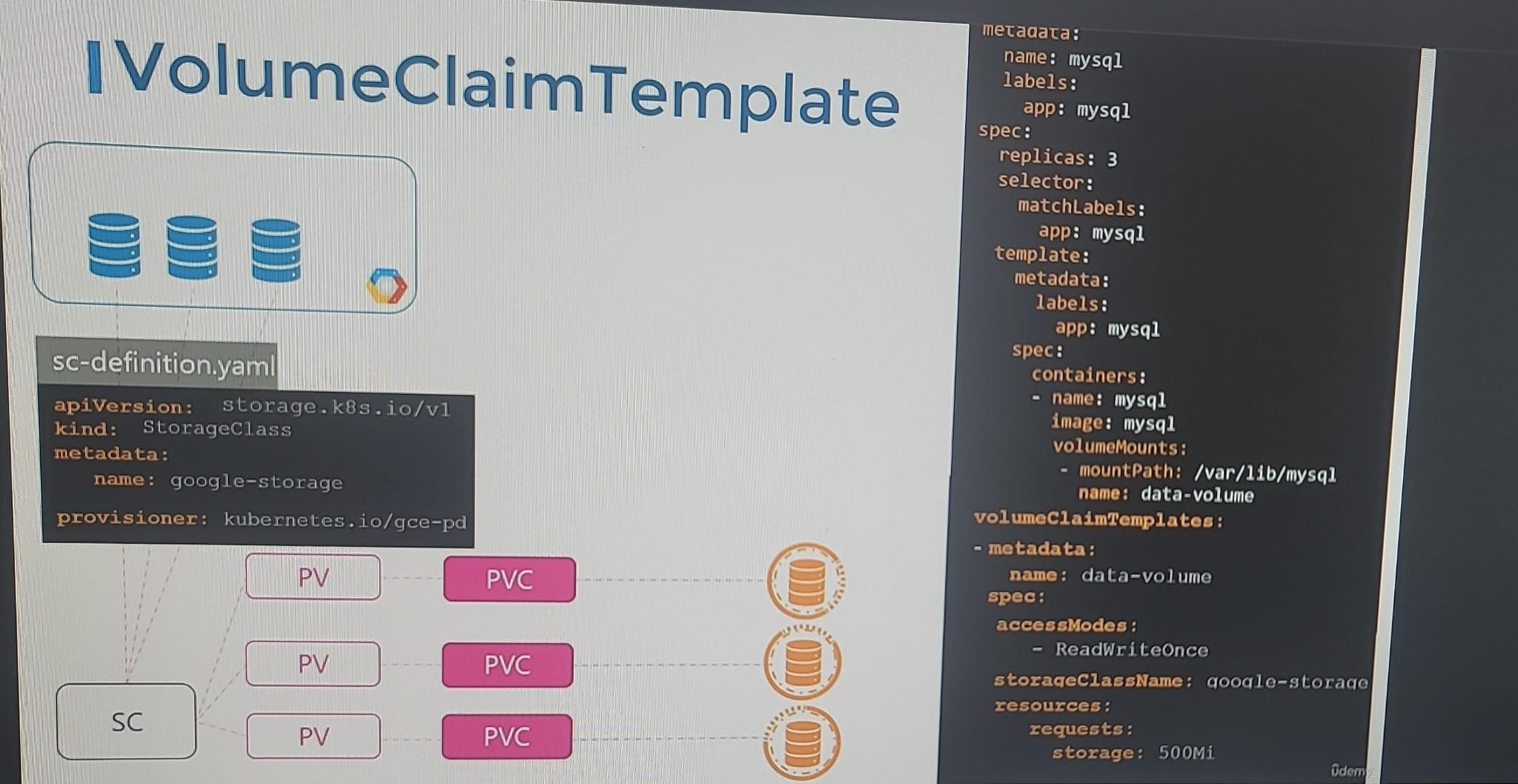

  • img_2.png
