ReplicaSet

A. replication Controller

  • replicationController is a older way
  • ReplicaSet is a new way, with some diff.
  • makes sure specified number of pods running all the time.
  • span across node/s

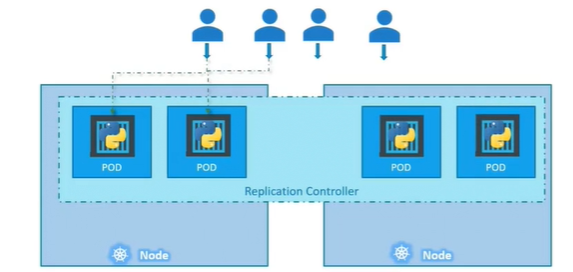

  • img.png
  • yml (spec)
  • replicas : 3
  • nest the pod file in template section
  • it manages only pod defined in template

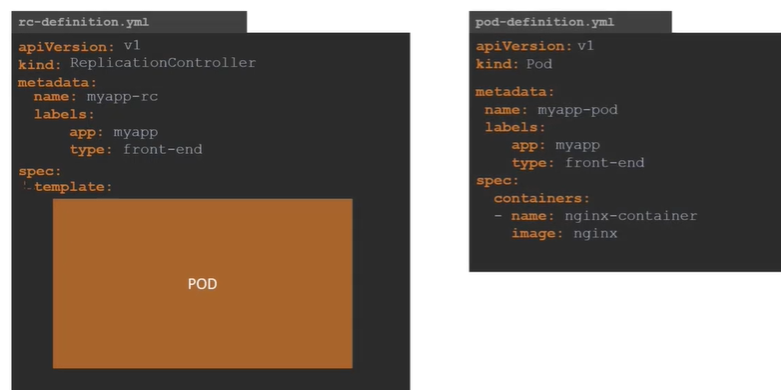

  • img_1.png

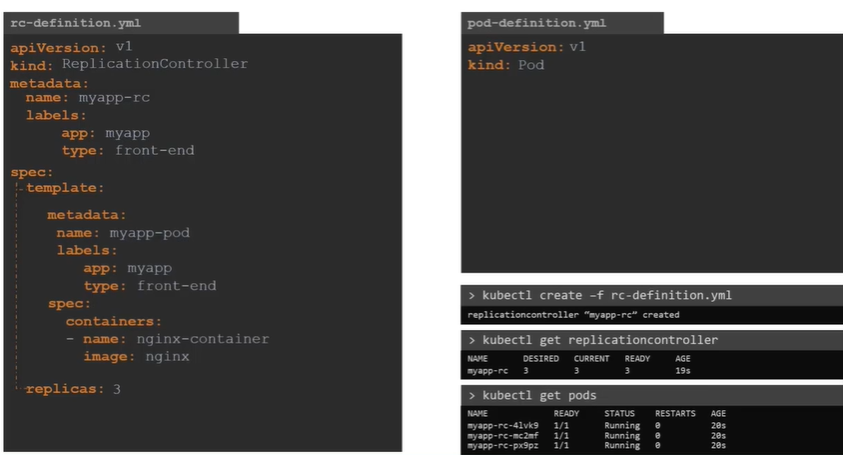

  • img_2.png

B. Replica Set

  • concept and yml --> almost same.
  • it also manages pods, not defined in template section.
  • thus having spec.selector (mandatory)
...
...
spec:
    ...
    ...
    selector:
        matchLabels:
            type: front-end

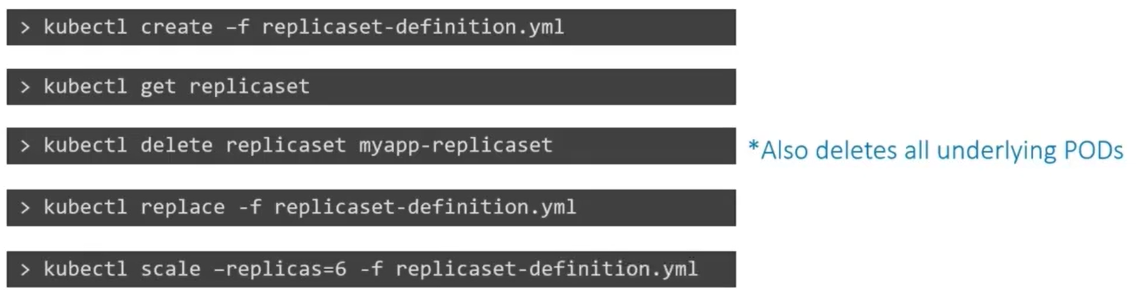

## Some commands:
- kubectl get replicaset
- kubectl create -f <yaml>
- kubectl scale --replicas=6 -f replicaSet-definition.yaml
- kubectl scale --replicas=6 replicaset replicaset-1
- kubectl delete replicaset rs-1
    - all linked pods will be deleted.
-  kubectl get replicaset -o yaml > sample.yaml

Note: use rs

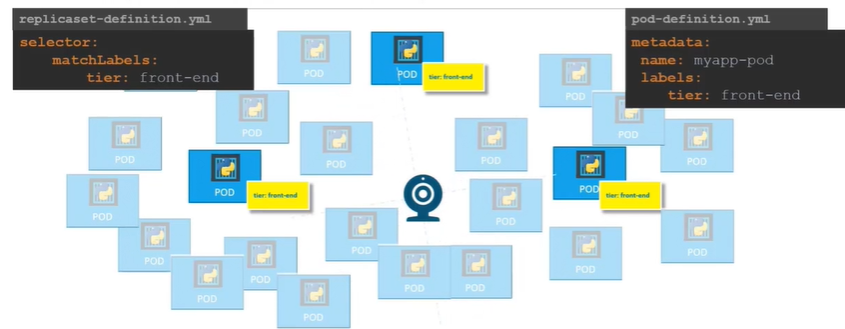

label and selector
