Authentication

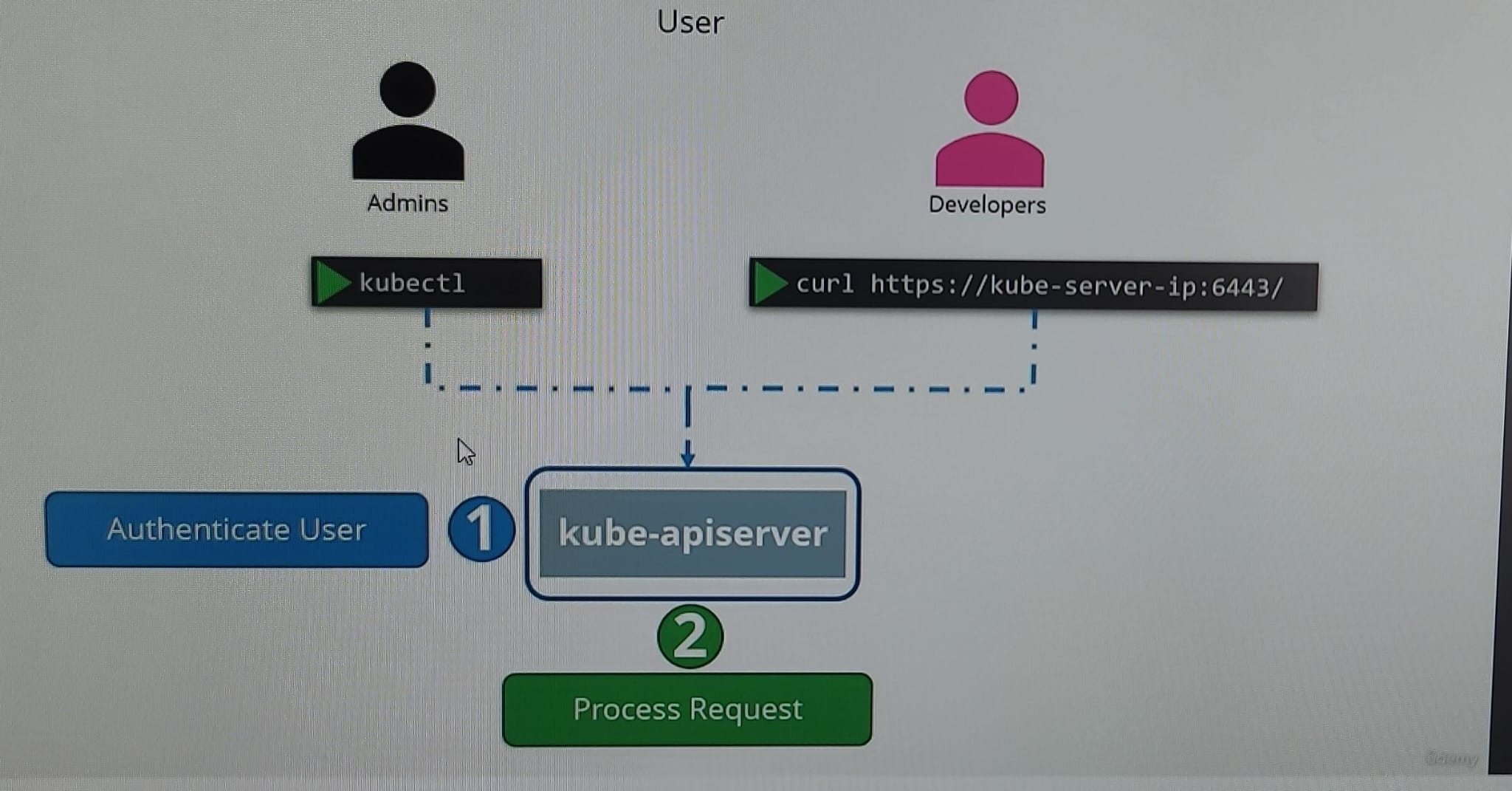

  • img.png
  • K8s cluster (kube-apiserver, running as system pod), will be accessed by :
  • users (Admin / developer) - we don't create them in k8s
  • SA : we create these in k8s.

  • end user : out of scope. will be handled inside application deployed on k8s pod.

  • NOTE : kube-apiserver is running as pod.

  • hence always update : /etc/kubernetes/manifests/kube-apiserver.yaml.
  • ps -ef | grep kube-apiserver

Authentication mechanism

1. Static password file (basic Auth)

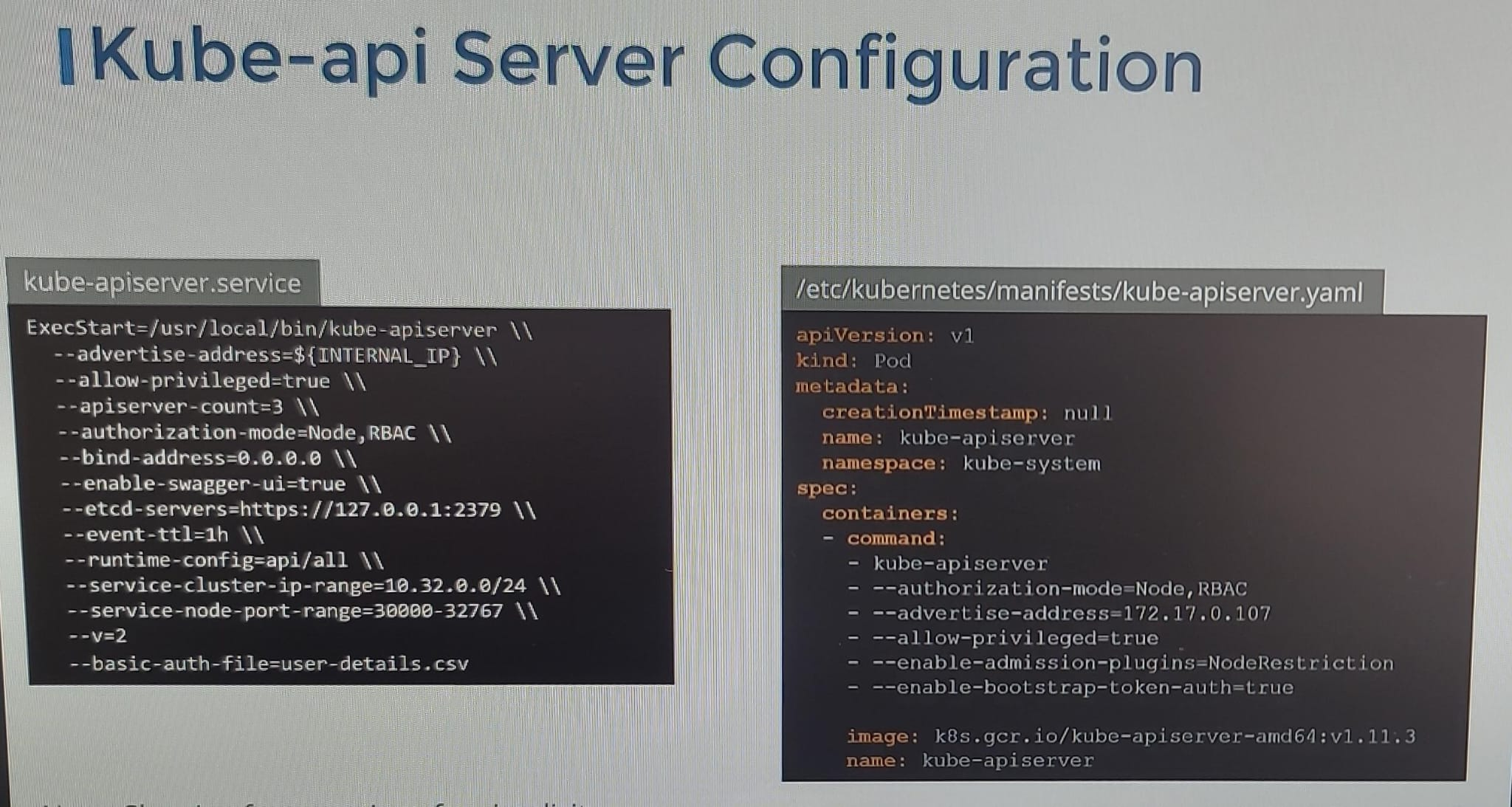

  • img_2.png
  • Modify the kube-apiserver startup options -
    • command section : add --basic-auth-file=user-details.csv
  • usage: curl -v -k https://master-node-ip:6443/api/v1/pods -u "u1:p1"
  • user-detail.csv --> pwd_1, username_1, userId, groupId
  • plain text file , hence not recommended. deprecated in Kubernetes version 1.19

2. Static token file

  • add --token-auth-file=user-token-detail.csv
  • token_1, username_1, userId, groupId
  • usage: curl -v -k https://master-node-ip:6443/api/v1/pods --header "Authorization: Bearer token_1"
  • plain text file , hence not recommended. deprecated in Kubernetes version 1.19

3. Certificate

  • Note : generate certificates for different Kubernetes components and for a user and use them in the Kubernetes cluster is not in the scope of the official CKAD exam
  • we don't create them in k8s
  • first generate certificate for user.
  • All users certificates are stored at --> /etc/kubernetes/pki/users
  • check : 02-kubeconfig.md
    1. Generate a Private Key for the User:
- openssl genrsa -out newuser.key 2048

2. Create a Certificate Signing Request (CSR):
- openssl req -new -key newuser.key -out newuser.csr -subj "/CN=newuser/O=your-organization"

3. Sign the Certificate with Minikube’s CA
- openssl x509 -req -in newuser.csr -CA ~/.minikube/ca.crt -CAkey ~/.minikube/ca.key -CAcreateserial -out newuser.crt -days 365 -extensions v3_req

4. Add the New User to kubeconfig
- kubectl config set-credentials newuser --client-certificate=newuser.crt --client-key=newuser.key
- kubectl config set-context newuser-context --cluster=minikube --user=newuser
# minikube cluster a;lready exist.

5. Switch to the New User Context
kubectl config use-context newuser-context

4. External ID service - okta,LDAP.

  • not in scope.
