API Group

  • so far, we were using kubectl utility. can also achieve same using REST api.
  • First, get master-node-address and port .
  • minikube ip
  • kubectl config view --minify -o jsonpath='{.clusters[0].cluster.server}'

  • API groups / categories --> all k8s resources are grouped under:

  • /metrics
  • /healthz
  • /version --> cluster version. ?
  • /api * --> core functionalities.
  • /apis * --> named. more organized. future functionalities.
  • /logs --> integrating with 3rd part logging server.

  • so, not all user can call all api. will authorize user, will give granular permission. check here

  • try:

  • curl http://localhost:6443 -k
  • curl https://master-node-address:6443/version
  • curl https://master-node-address:6443/api/v1/pods

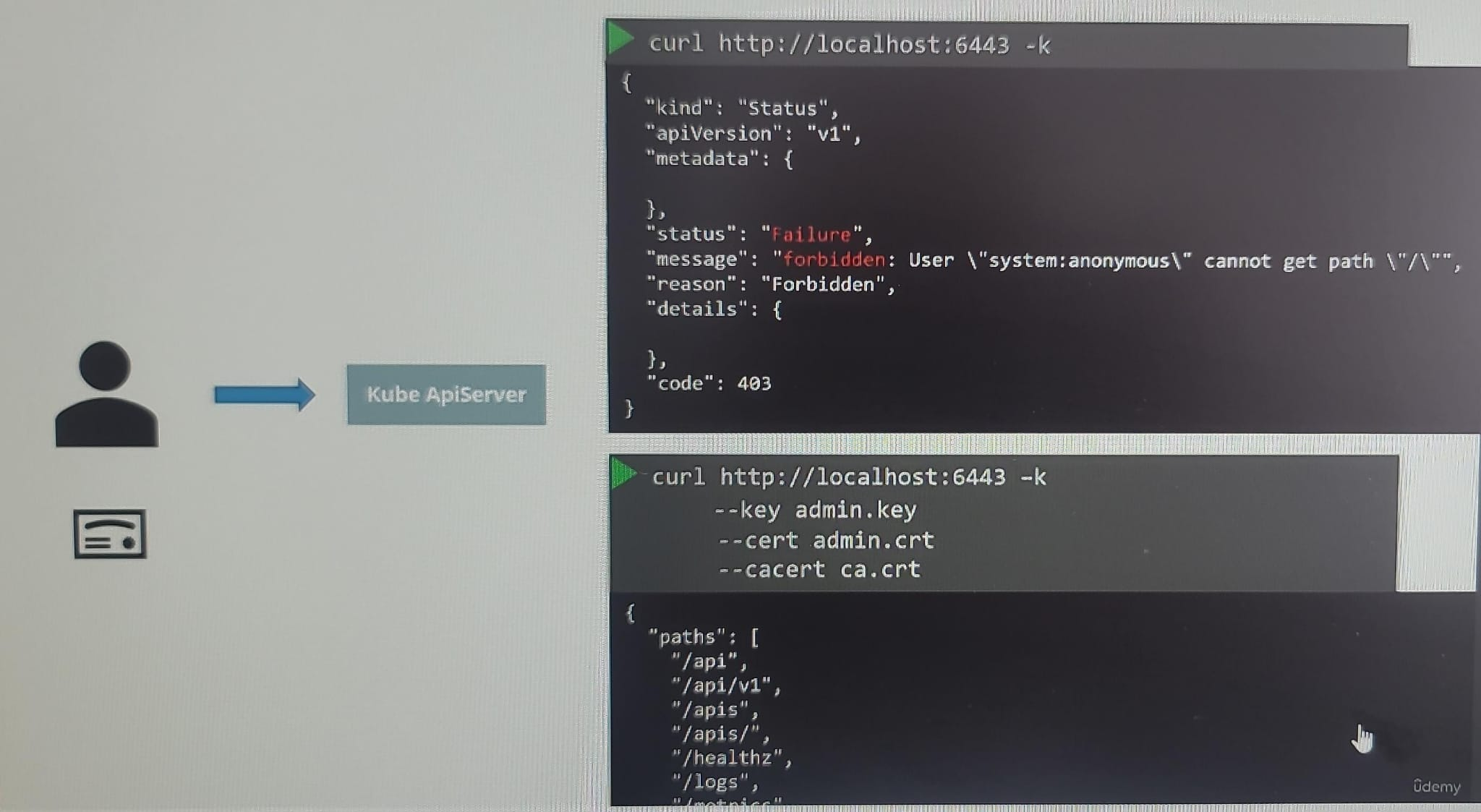

  • img.png
  • fixes authentication issue:
    • Fix-1 :: passing--> --key --cert --cacert
    • fix-2 :: use kubectl proxy server.
    • It forwards the request to kubeapi server with key,cacert,and cert.
    • run on port 8001.
    • curl http://localhost:8001/api
    • Note: kube proxy and kubectl proxy, are different. check later.

1. /api

  • curl http://localhost:6443/api -k | grep "name"

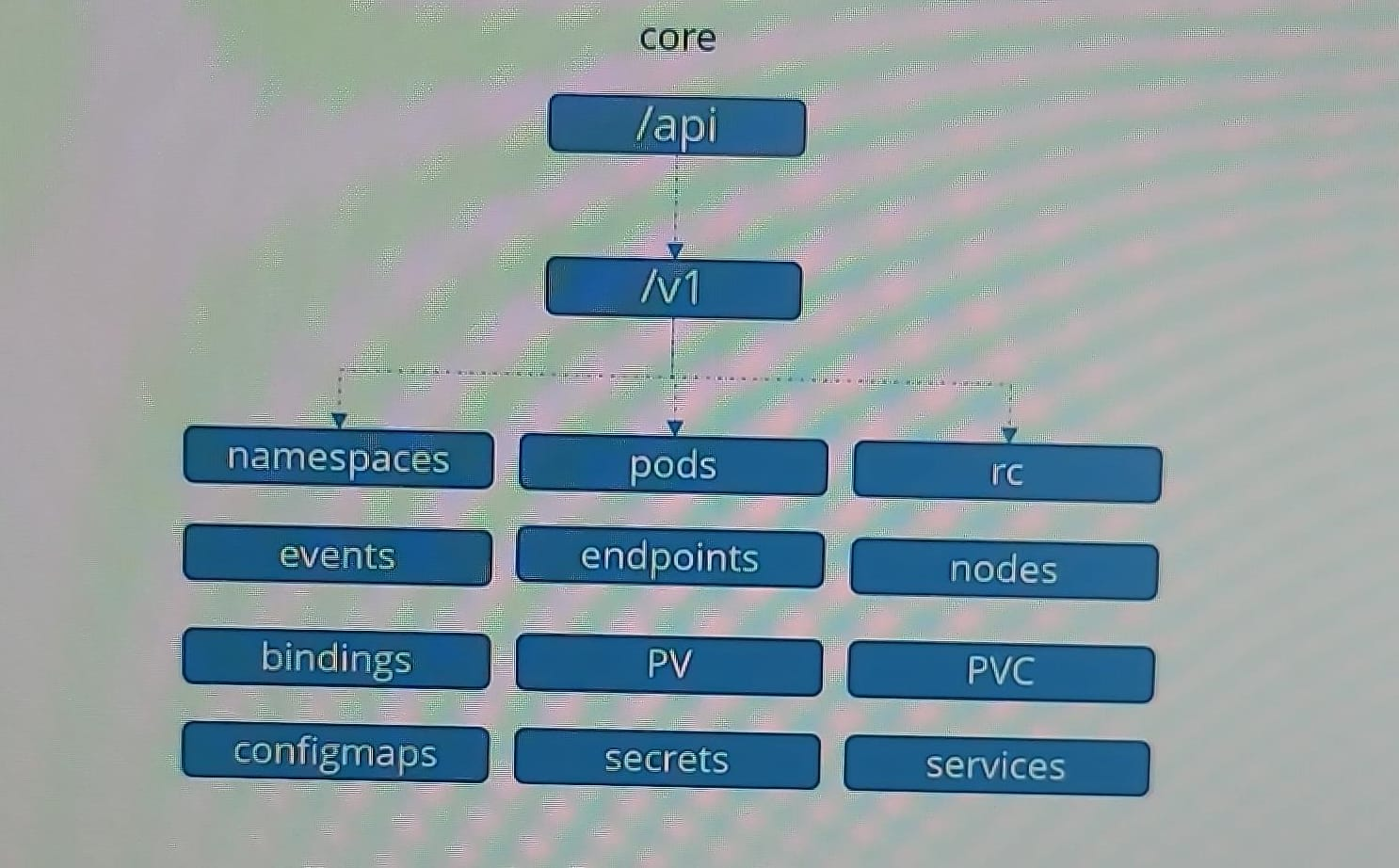

  • img_1.png

2. /apis

  • curl http://localhost:6443/apis -k | grep "name"

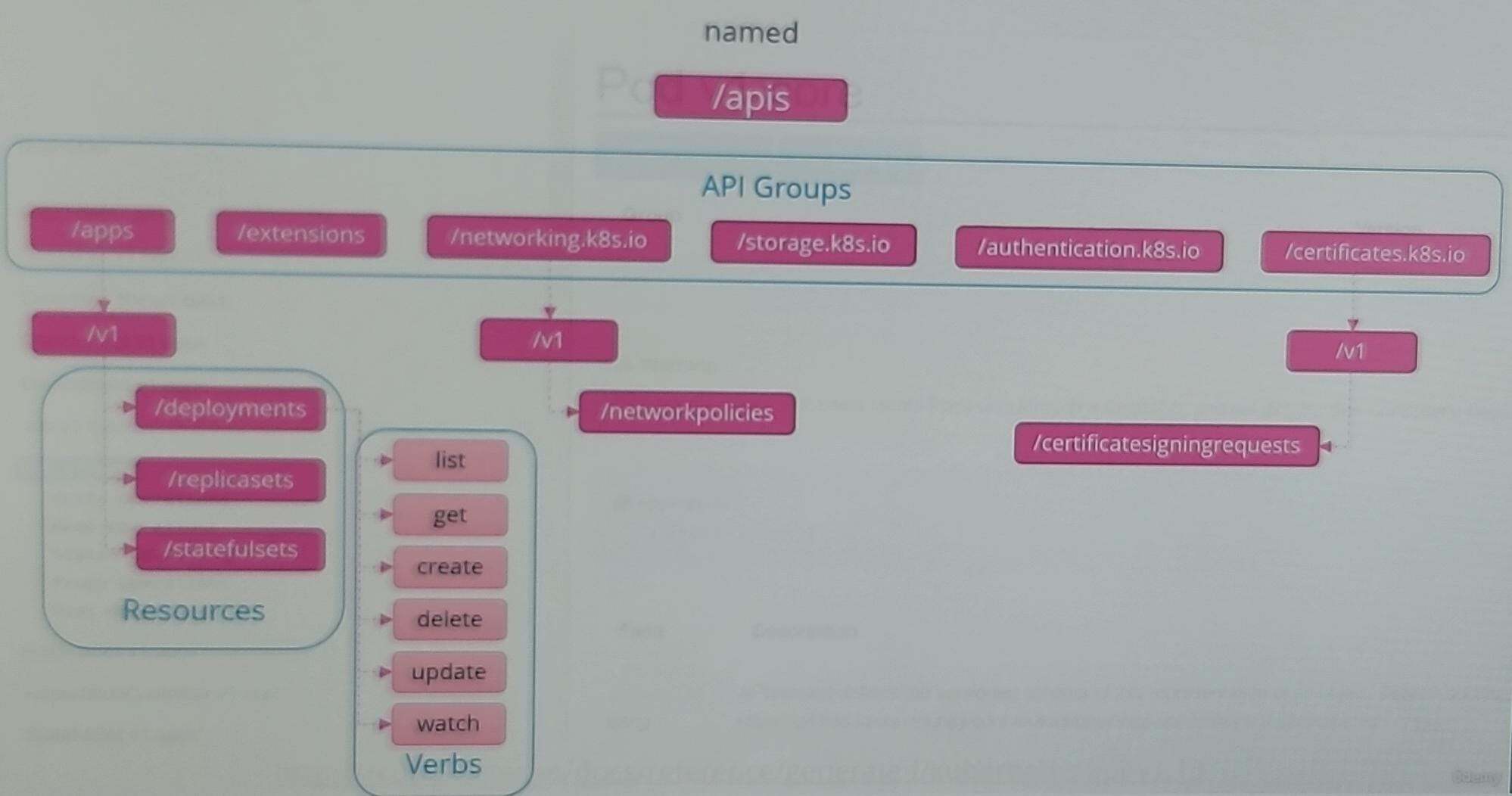

  • img_2.png
