Admission Controller

concept

• kubectl --> kube-apiserver --> ? > ? > ? > create pod

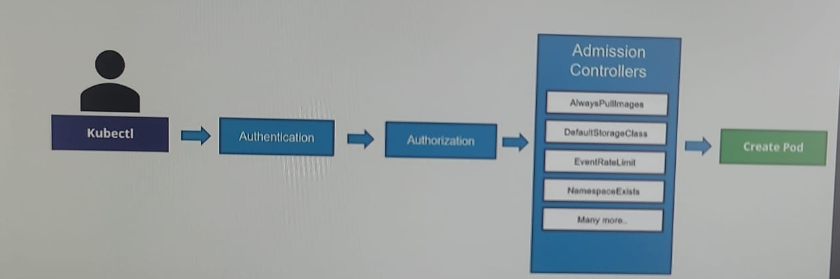

• kubectl --> kube-apiserver --> authentication --> Authorization --> additional actions --> create pod
• use Admission controller for more security measures.
• use built in or create your own.
• additional actions:
• allow/deny request
• validate configuration
• perform operations

• can change can the request itself.

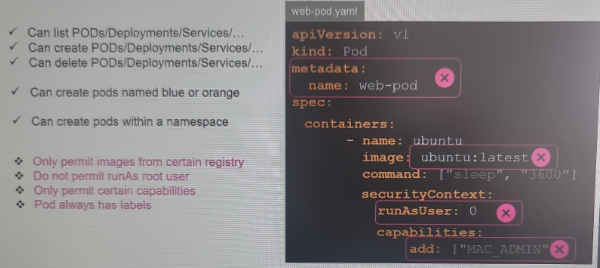

• example for additional task:

•

---

A. enabled or disabled

• enabled or disabled on the API server, via the --enable-admission-plugins flag
• kube-apiserver -h | grep enable-admission-plugins : wont work, try below.
• k exec kube-apiserver-controlplane -n kube-system -- kube-apiserver -h | grep enable-admission-plugins *
• ps -ef | grep kube-apiserver | grep admission-plugins

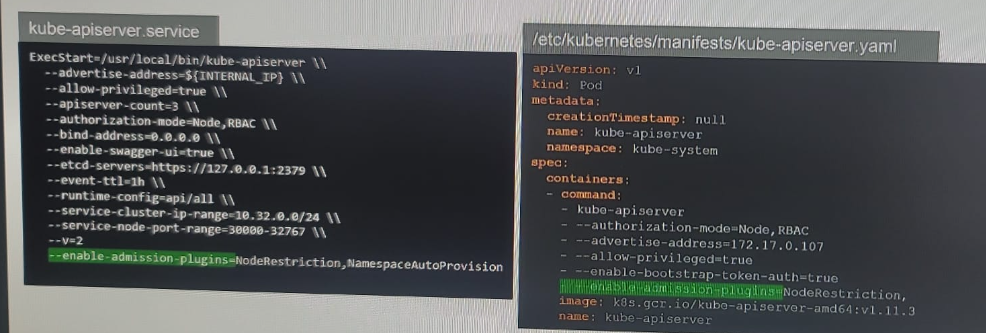

• edit:
  • kube-apiserver.service
  • /etc/kubernetes/mainifests/kube-apiserver.yaml * --> when we update this file, it take few to restart.so wait.
  •

---

B. some built-in Admission Controller

- NamespaceLifecycle :
- preventing creation of resources in non-existent - make sure ns - default, kube-system and kube-public cannot be deleted. - NamespaceAutoProvision deprecated : creates ns if not exists. - NamespaceExists deprecated - LimitRanger : Enforces limits and resource requests on Pods and Containers within a namespace - ResourceQuota: - ServiceAccount : Automatically assigns a default service account to Pods that do not specify one. - DefaultStorageClass : Assigns a default StorageClass to PersistentVolumeClaims (PVCs) - NodeRestriction : restricting kubelets to modifying resources associated with their own node. - usually disabled - EventRateLimit : Limits the number of event objects a single source can generate in a given timeframe

---

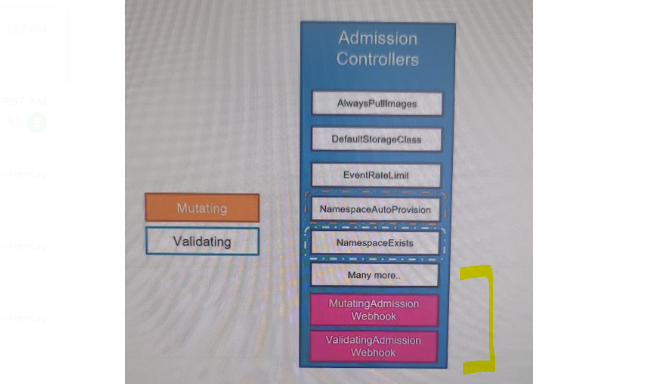

C. Types

C.1 updating/mutating Admission Controller

• runs first, (before validation Admission Controller )
• change/update object yaml/description before creating.

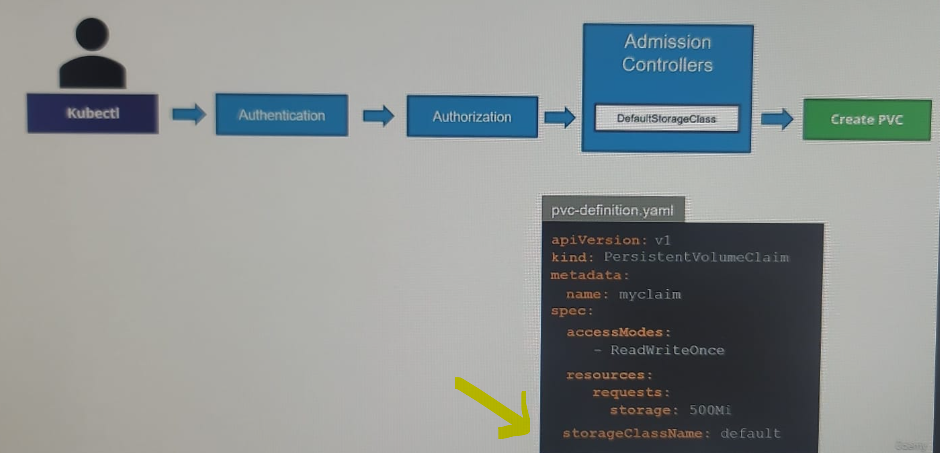

• eg: DefaultstorageClass, NamespaceAutoProvision
• it updates PVC object : add storageClassName: default. was initially not present.
•
• inspect after creation, k describe pvc myclaim | grep StorageClass

C.2 validating Admission Controller

• allow or deny create|edit|delete requests.
• eg: NamespaceExists, NamespaceLifecycle

---

D. external Admission Controller / AdmissionHook

• custom-built, with own validating and mutating logic.
• 2 in-built Admission Controller present to support this.
• MutatingAdmissionHook
• ValidatingAdmissionHook

•

• Steps:

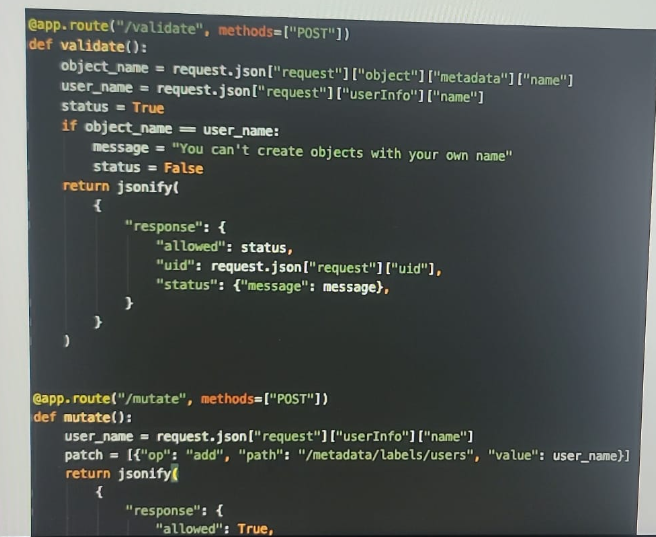

• 1 create webhook app
  • with 2 POST REST api /validate and /mutate.
  • create in any language. py,java, node

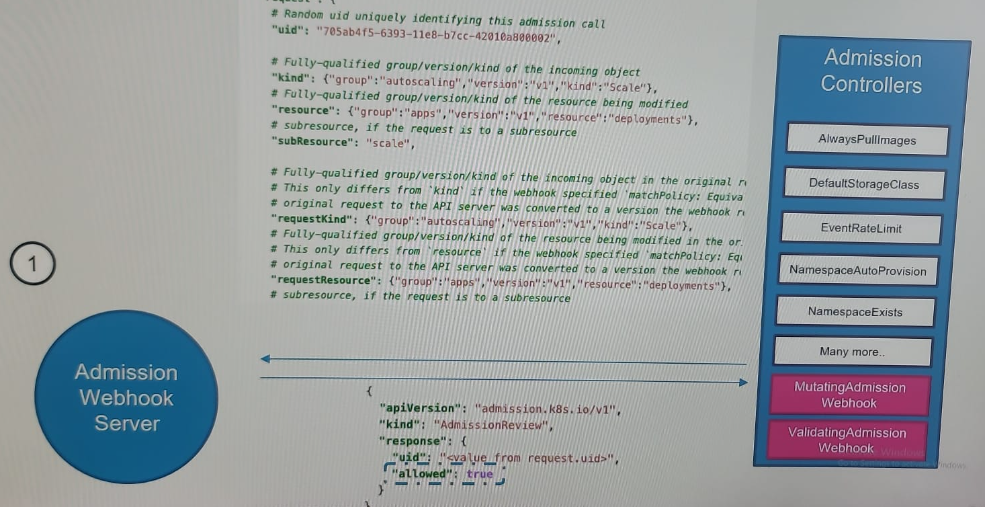

  • follow request / response json format. check official doc.

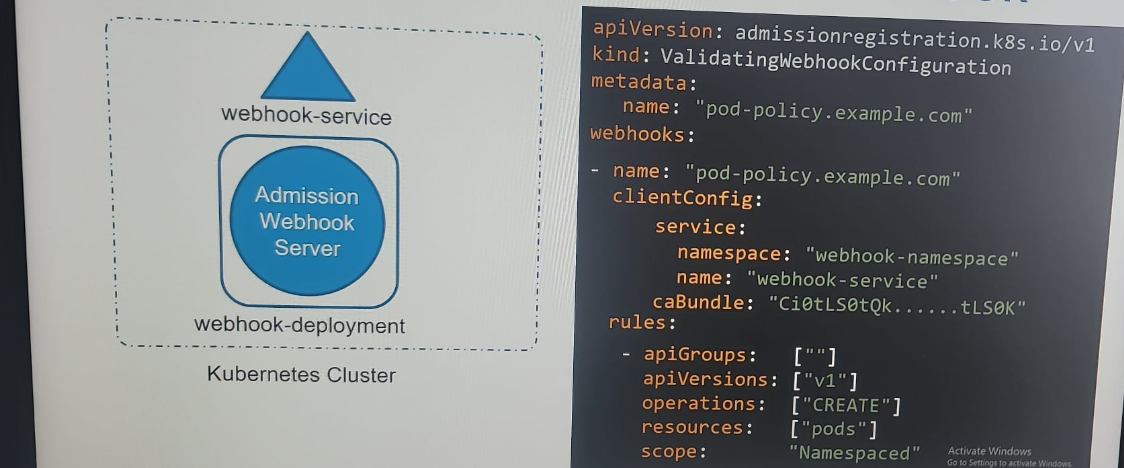

• 2 Next, deploy this webhook app
  • inside k8s cluster as pod and svc.
  • Or, external server.

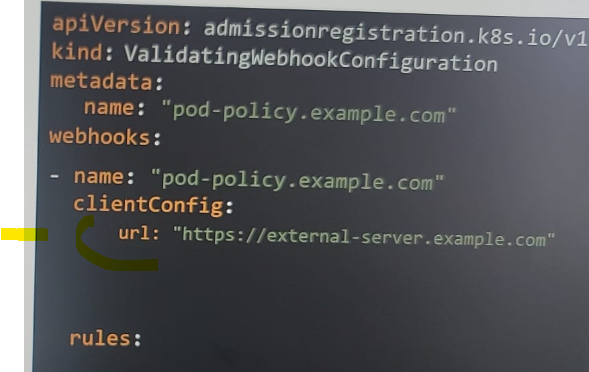

• 3 next, create configuration objects

  • validationWebhookConfiguration / MutatingWebhookConfiguration object.
  • has connection detail to webhook app.
  • has rule/s, when to call these webhook api.

• screenshots for more understaning:

•
•
•
•
