Cluster Setup
Reference/chatgpt¶
- cluster setup
- https://chat.deepseek.com/a/chat/s/1125c5bb-48e4-4aff-9e3e-4720011cfd45
- https://chat.deepseek.com/a/chat/s/da139fc5-e06f-42e3-8419-a2c17a94a9cf
- create first user
- https://chatgpt.com/c/673940a9-d1cc-800d-a117-847107be2e53
- https://chatgpt.com/c/67371203-d934-800d-94f1-3c996d9584dd
- Authentication + IRSA : https://chatgpt.com/c/67342f43-7220-800d-8831-68fe91ea7a87
- aws-auth : https://chatgpt.com/c/6734280e-7d48-800d-b410-280da79926fe
- pipeline
- https://chatgpt.com/c/67346f23-ce58-800d-9b35-a0ccf088f920
- https://chatgpt.com/c/67352892-e094-800d-a053-9a51c1074097
- https://chatgpt.com/c/67358116-3f1c-800d-96c6-c6d447f1b283
A. kubernetes Architecture¶
B EKS cluster¶
B.1 master node / control panel¶
- kube-apiserver
- coreDNS
- controllers
- add ons:
- metric server
- logging server
- datadog agent
- splunk agent
- ingress-controller / ALB controller (gateway)
B.2 worker node¶
- kubelet
- kube proxy
- docker / container-d
B.3 setup network¶
- awsvpc
- none
- host
- bridge
B.4 cloud service¶
- ALB (alb-controller, install with helm)
- EBS / EFS
- Aws Secrets manager -> externalSecret -> k8s:Secret
D. EKS cluster Setup (platform team) :: terraform/HCL :yellow_circle:¶
options¶
- AWS managed service (EKS - fargate)
- AWS managed service (EKS - ec2 launch type)
- Node
- Nodegroup
- https://www.udemy.com/course/docker-kubernetes-the-practical-guide/learn/lecture/22628019#overview
- https://www.udemy.com/course/docker-kubernetes-the-practical-guide/learn/lecture/22628021#overview
- AWS :: EC2
- spin up EC2 machine
- set up VPC
- software installation manually
artifacts¶
- HCP workspace: https://app.terraform.io/app/lekhrajdinkar-org/workspaces/aws-config-maps-outbound-dev2-eks/runs
- HCL configuration : terraforn config
- aws provider using
role-1(will become admin user)=== attach on role-1 ==== - AmazonEKSClusterPolicy - AmazonEKSWorkerNodePolicy - AmazonEKSServicePolicy - inline - eks:AccessKubernetesApi, DescribeCluster, ListClusters, - iam:getRole,PassRole - command/s
- kubectl cluster-info
- aws eks update-kubeconfig --cluster cluster-1 --region r1
- `master`: https://C7467B80CEF6669327EE0493423B84A5.gr7.us-west-2.eks.amazonaws.com - `CoreDNS` : https://C7467B80CEF6669327EE0493423B84A5.gr7.us-west-2.eks.amazonaws.com/api/v1/namespaces/kube-system/services/kube-dns:dns/proxy
D.1 create :: 2 IAM-roles¶
- cluster-role-1 :
- standard policy
- node-group-role-1
- container registry policy
- worker node policy
- CNI policy
D.2 create :: VPC for EKS¶
- create vpc-1
- with standard cloudformation template.
- on your own
D.3 create :: cluster¶
- choose cluster type : public and private
- Configure AWS temp credential for role-1(become admin): getStsToken, gimme-aws-creds(okta)
- input :
- cluster name - cluster-1
- cluster-role-1
- vpc-1
D.4 Associate :: OIDC provider¶
- Associate identity provider (OIDC)
- used for IRSA
- an OIDC provider (oidc-1) is automatically associated with it.
-
if not found manually configured
- eksctl utils associate-iam-oidc-provider --cluster $cluster_name --approve
-
READY :green_circle:
- aws eks describe --cluster=cluster-1
- aws eks update-config --cluster=cluster-1
D.5 admin user (automatic created)¶
- Note: users === outside k8s user / federated === represent aws
IAM user/role - admin-user (role-1) auto created
- user-2 (eks-cluster-role-1-for-federated-user)
- created role : https://us-east-1.console.aws.amazon.com/iam/home?region=us-west-2#/roles/details/eks-cluster-role-1-for-federated-user?section=permissions
-
kubectl edit configmap aws-auth -n kube-system
aws-auth: (kube-system namespace) ======== ... mapRoles: | - rolearn: arn:aws:iam::123456789012:role/role-1 username: arn:aws:iam::123456789012:role/role-1 groups: - system:masters ...kubeconfig ============ ... users: - name: arn:aws:iam::123456789012:role/role-1 user: exec: apiVersion: client.authentication.k8s.io/v1beta1 args: - --region - us-west-2 - eks - get-token === sts:GetCallerIdentity with your IAM credentials (e.g., from ~/.aws/credentials or an IAM role). <<<< - --cluster-name - maps-outbound-us-west-2-dev2-eks-fargate-cluster - --output - json command: aws
-
Authentication flow

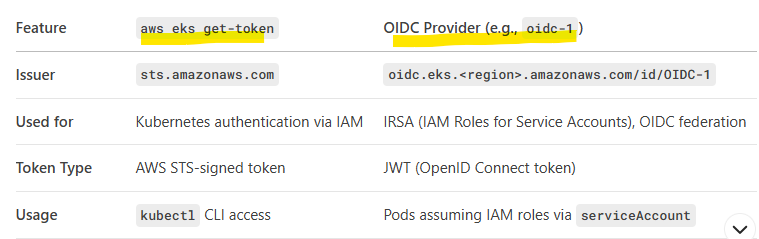

- aws eks get-token - sts:GetCallerIdentity with your IAM credentials (e.g., from ~/.aws/credentials or an IAM role). - AWS STS returns a presigned **URL** containing - user ID, account ID, roleArn - kubectl cli, converts to --> k8s-aws-v1.<base64-encoded-sts-**url**> - k8s-aws-v1.aHR0cHM6Ly9zdHMuYW1hem9uYXdzLmNvbS8... - send this token to the EKS cluster’s API server with Authorization header <<<< - API server decodes the token to extract the STS presigned URL - forwards the URL to **AWS IAM Authenticator** - The authenticator checks the **aws-auth** ConfigMap in the kube-system namespace
D.6 Create :: Nodegroup¶
- compute tab
- add
Nodegroup(ec2 machines) - input:
- node-group-role-1
- vpc-1
- instance-type
- scaling
- it will install k8s software needed for worker node.
- READY :green_circle:
D.7 volumes : EFS¶
- storageClass (CSI) + pvc
- integrate 3rd party storage on k8s -EFS
- https://github.com/kubernetes-sigs/aws-efs-csi-driver
- install this driver :: kubectl apply -k "github.com/kubernetes-sigs/aws-efs-csi-driver/deploy/kubernetes/overlays/stable/?ref=release-2.0"
- add EFS in same vpc-1
- add security-group to allow traffic with in VPC.
# PV ... ... volumnMode: Filesystem storageClassName: efs-sc-1 csi: driver: efs.csi.aws.com volumehandle: fs-1 # id of fs created above --- # SC ... ... name: efs-sc-1 spec: provisoner: efs.csi.aws.com --- # PVC ... ... name: efs-pvc-1 spec: storageClassName: efs-sc-1 resources: requests: storage: 5Gi --- # pod volumns: - name: pvc: claimname: efs-pvc-1 container: - ... ... volumnMounts: - name: mountpath: /app/abc
