kafka

A intro

  • real-time data streaming pipelines. (primary task)
  • data stream : unbounded/endless sequence of data, with data throughput can high or low. eg:
    • Log Analysis - Log stream from multiple ms.
    • Web Analytics - modern web app measure user activity.
  • open-source, managed by confluent(linkedIn)
  • distributed system
    • cluster + brokers/nodes (has TOPICS)
    • scalable and fault-tolerant to node loss.

B install

  • 1 curl -L https://releases.conduktor.io/quick-start -o docker-compose.yml && docker compose up -d --wait && echo "Conduktor started on http://localhost:8080"
  • 2 https://github.com/conduktor/kafka-beginners-course/tree/main/conduktor-platform - worked(old one)
  • next:
    • for new update: https://conduktor.io/get-started
    • check all container: https://releases.conduktor.io/quick-start -o docker-compose.yml
    • launch UI/conduktor : http://localhost:8080

C use cases

  • https://chatgpt.com/c/6748bff9-8df8-800d-8faa-ac5244853529

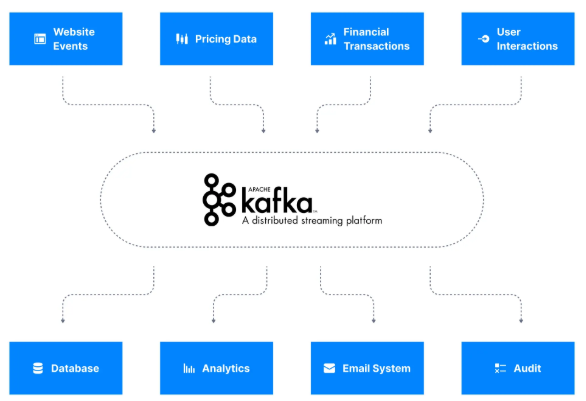

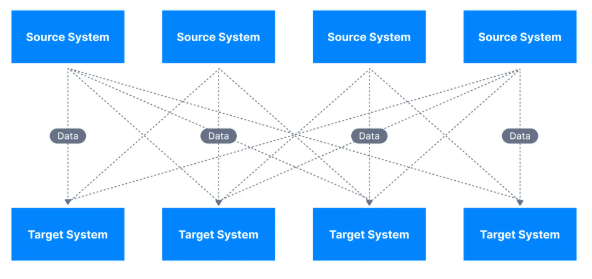

1 as a data integration layer

  • producer and consumer system/s, with diff data-format + schema, protocol

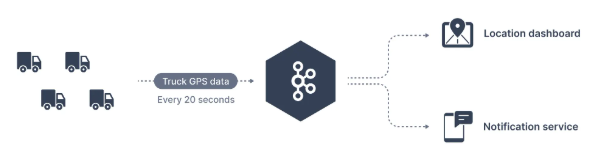

  • img.png
  • img.png

2 Decouple systems

3 Microservice communication

4 Integration with Big Data technologies

5 Event-sourcing store

6 Activity Tracker

  • Gather metrics from many different locations
  • collect logs
  • collect web user activity

  • img_1.png

  • img.png

D fundamental / component

  • https://chatgpt.com/c/6748c06d-048c-800d-996e-6ca852cd0329
  • producer --> kafka-Cluster [ broker > topic > partition ] --> consumer group/s [consumer-1,... ]

0 broker

  • single Kafka server
  • kakfa store data in a directory on the broker disk.
  • if we connect to any broker, then can discover and connect to other broker in the same cluster
    • Every broker in the cluster has metadata about all the other brokers
    • therefore any broker in the cluster is also called a bootstrap server.
    • img_5.png

1 topics

  • roughly analogous to SQL tables (not queryable)
  • data store in binary-format
  • data retention: 7 days (default) + offset.retention.min=24*60 (default) #broker level config 👈
  • partitions : topic is broken down into a number of partitions
    • to achieve high throughput and scalability + parallel consumer/s
    • Kafka does a good job of distributing partitions evenly among the available brokers.
    • up to 200,000 partition (with zookepeer)
    • without zoo kepeer - millions of partition.
  • offset - integer value that Kafka adds to each message as it is written into a partition. from 0.
    ## Consumer setting to commit offset:
    # a. Auto
    - enable.auto.commit=true
    - auto.commit.interval.ms=5000
    - offsets.retention.minutes --> once commited, offset will be availble for another 24 hr by default, to that consumer-group.

    # b. Manual
    - enable.auto.commit=false
    - KafkaConsumer.CommitSync()/CommitASync();

    # c Manaul advance
    - skip it
    - stores offset externally

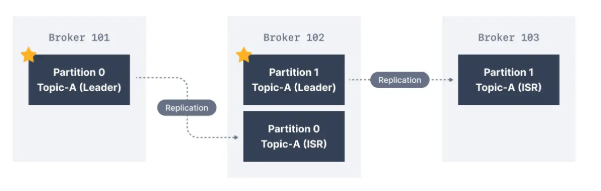

  • replicas / In-Sync Replicas (ISR)
    • to archive - resilience and availability
      cluster - broker-1,  broker-2 , broker-3 (3 brokers)
      Topic-1 - partition-1 , partition-2, partition-3

      # initial distribution (with RF=1)
      broker-1 : [ partition-1 ]
      broker-2 : [ partition-2 ]
      broker-3 : [ partition-3 ]

      # add replication: RF=?
      - RF=2
        broker-1 : [ partition-1, partition-3-isr1 ]
        broker-2 : [ partition-2, partition-1-isr1 ]
        broker-3 : [ partition-3, partition-2-isr1 ]

      - RF=3
        broker-1 : [ partition-1, partition-3-isr1, partition-2-isr2 ]
        broker-2 : [ partition-2, partition-1-isr1, partition-3-isr2 ]
        broker-3 : [ partition-3, partition-2-isr1, partition-1-isr2 ]

      - RF=4 (invalid) :  must be <= no of broker

  • img_6.png

2 producer

  • application - java/py with kafka client.
  • Kafka producers only write data to the leader broker for a partition
  • specify a level of acknowledgment acks
    • acks=0 : written successfully
    • acks=1 : written successfully + acknowledged by leader
    • acks=all : written successfully + acknowledged by leader + accepted by all ISR
  • if ack not received, the producer retries.
    • retries : 0 - 2^32
    • retry.backoff.ms = 100 ms (default) # retry delay
    • delivery.timeout.md= # max time for delivery, afterwards exception which developer has to handle.

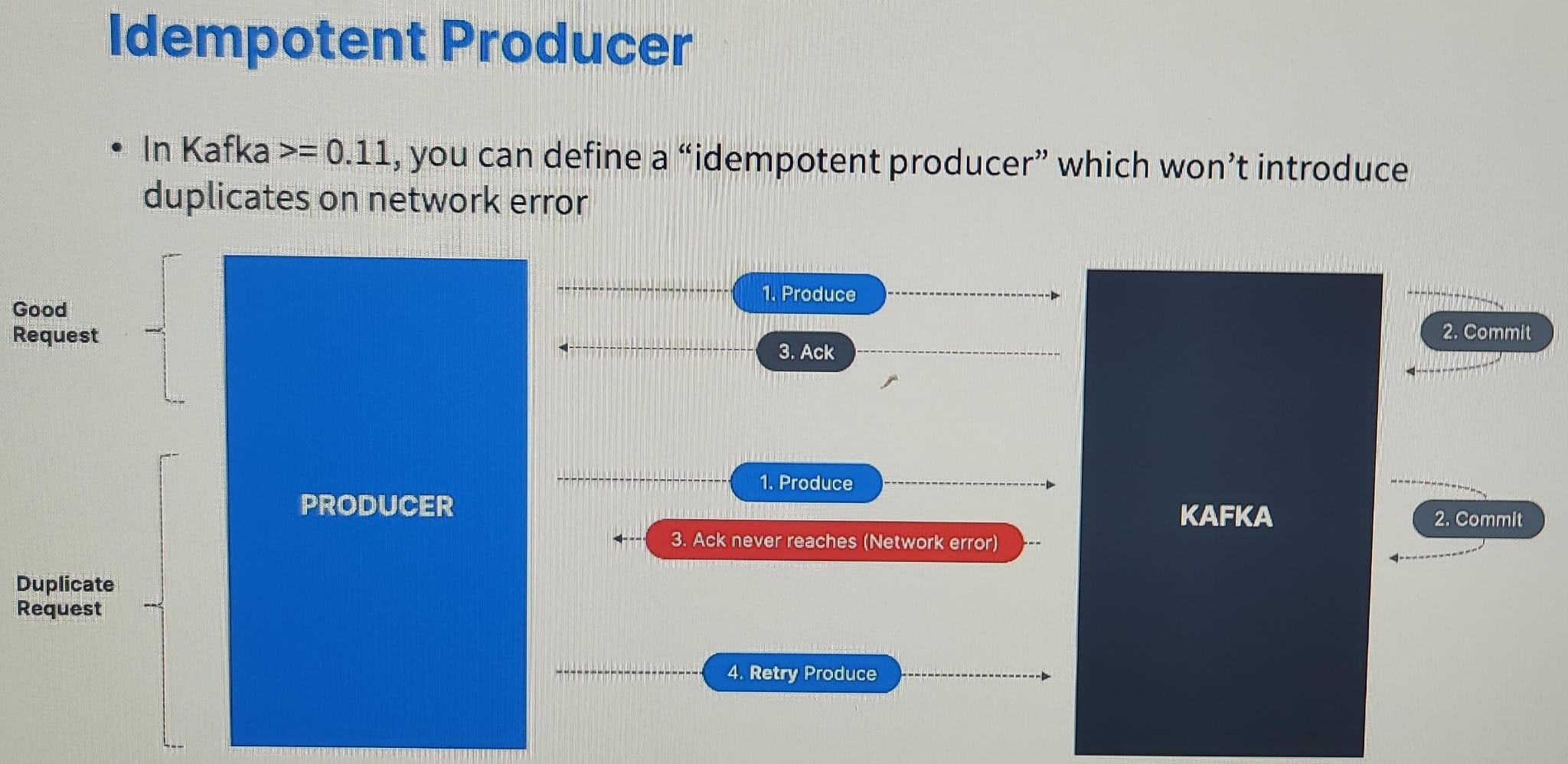

  • idempotent producer

    • use kafka 3+
    • detects duplicate and prevent it.
    • has retry ability with duplicate check.
    • img.png
  • kafka 3+ sets below 👈

      - producer.idempotence = true
      - acks=all
      - min.insync.replicas=2 # leader + at leat one replica.
      - reties= MAX_INT
      - delivery.timeout.ms = 120000 # 2 min
      - max.in.flight.request.oer.connection=5


  • archive message:

    • at producer level
    • at broker level
      • consumes CPU cycle, thus performance issue.
  • High throughput producer:

    • partition class

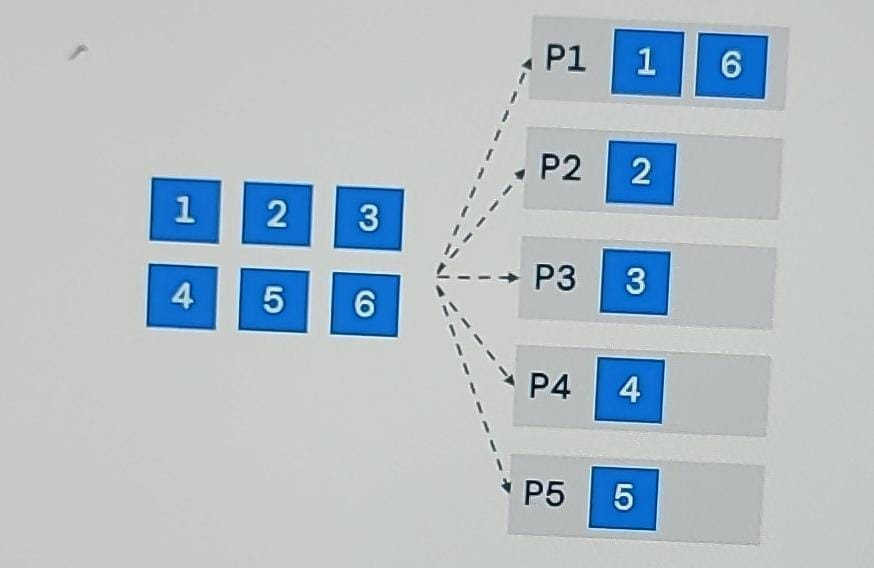

      • RoundRobin
        • img_1.png

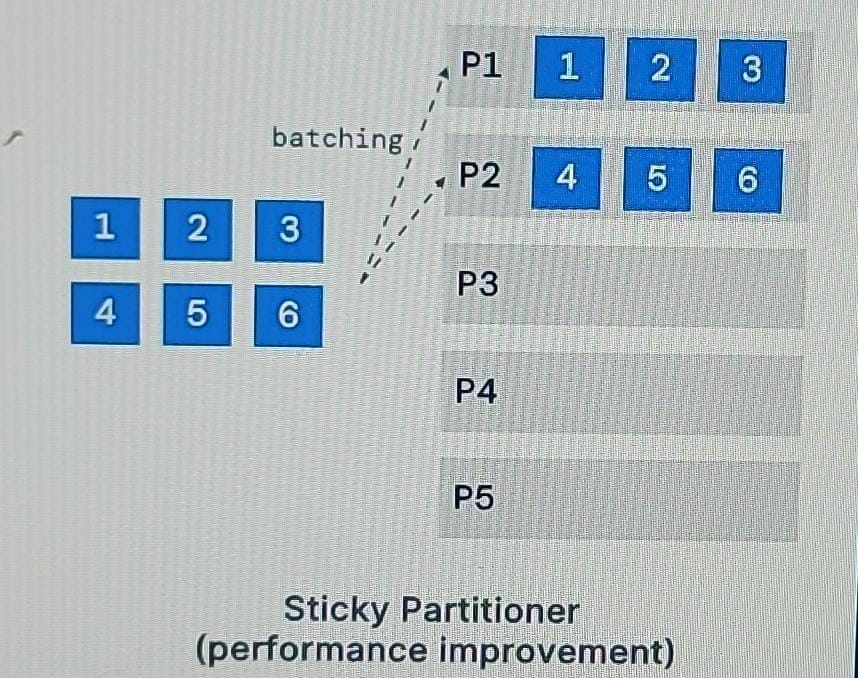

      • sticky (looks for batch.size + linger.ms)
        • linger.ms = 10ms # accumulate message for 10 ms and then send
        • batch.size = 16000 # accumulate message till 16 kb and then publish
        • note: increase above values, to achieve High throughput
        • img.png
    • compression (use snappy)
      • compression.type=snappy
      • spring.kafka.producer.properties.compression.type=snappy

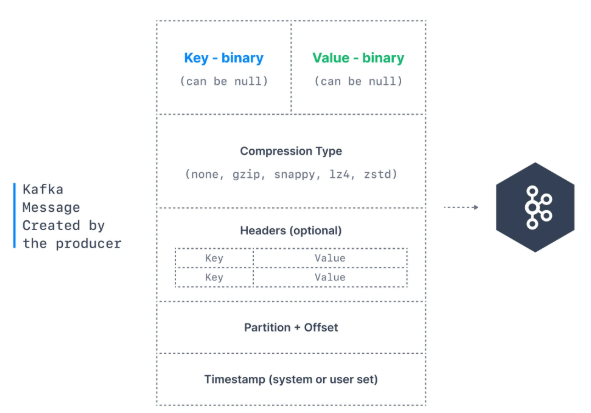

3 message

  • message-value : content
  • message-key

    • null : load balance , round-robin fashion into p1,p2,...
    • non-null :
      • all messages that share the same key, will always go to same partition.
      • true unless partition NOT chnages 👈
      • uses hashing murmur2 algo
  • img_1.png

  • Kafka Message Serializers / Kafka Message Deserializers
    • IntegerSerializer
    • StringSerializer
    • converts message-value/key into byte streams

4 Consumer

  • application - java/py,etc with kafka client.

4.1 pull model (skip)

  • instead of having Kafka brokers continuously push data to consumers,
  • consumers must request data from Kafka brokers

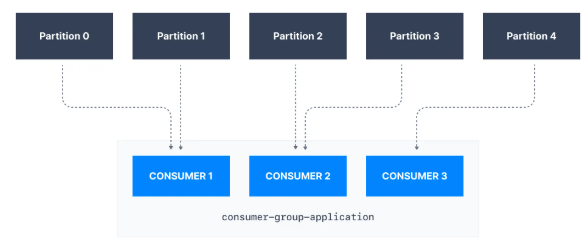

4.2 consumer group

  • each partition of topic is consumed by one consumer within a consumer group 👈
  • Messages are effectively divided among the consumers.
  • static consumer in group --> having group.instance.id is also set. 👈
  • img_2.png
  • img_3.png
  • img_4.png
  • img.png
    topic with 2 partition consumed by :
    - consumer-1
    - consumer-2
    - consumer-group-1 (consumer-3, sonsumer-4(idempotent)).
        - consumer-4 leave and comes back within thresold time, the will get same partition again. <<<

    Together, Consumer-3 and Consumer-4 consume all messages from the topic,
    dividing the workload between the two partitions.


4.3 Publish-Subscribe Behavior

  • topic-1{p-1, p-2,p-3} --> consumer/s:
    • consumer-group-1(consumer-1 on p-1 ,consumer-2 on p-2,p-3 ) === subscriber-1
    • consumer-group-2(consumer-1 on p-1,consumer-2 on p-2, consumer-3 on p-3, consumer-4 :: IDLE ) === subscriber-2
    • consumer-group-2(consumer-1) === subscriber-3
      • If a SINGLE consumer consumes data from multiple partition (p-0,p-1,p-3)
      • the message ordering is not guaranteed across multiple partitions. 👈

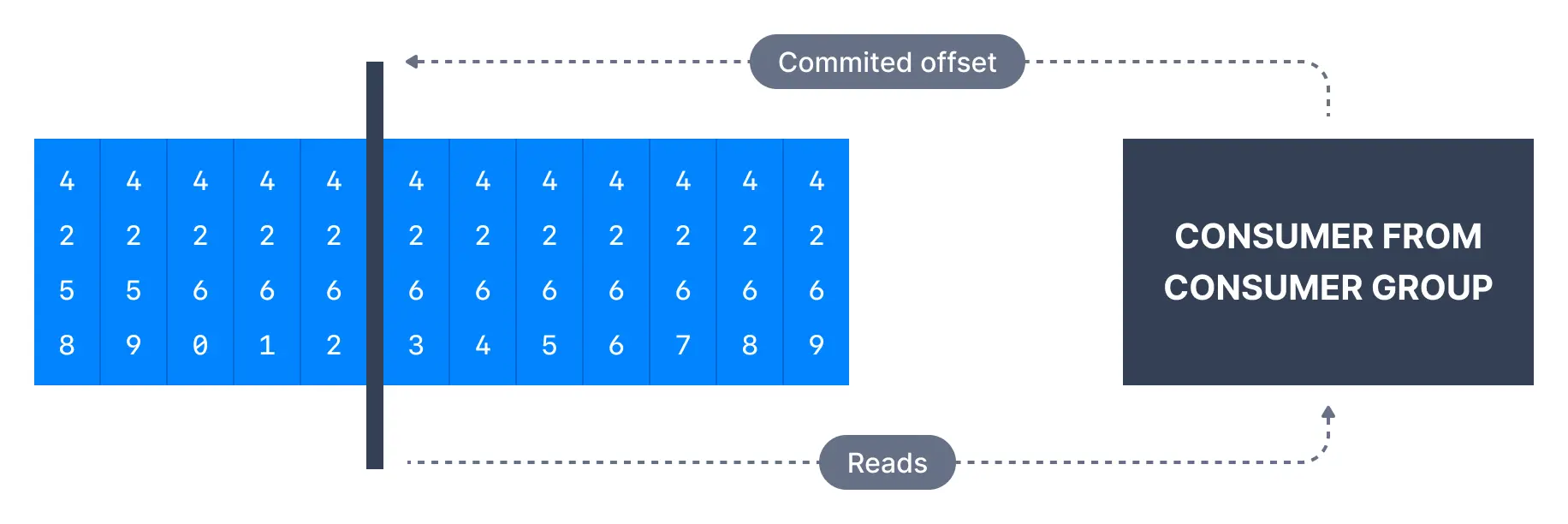

4.4 commit offset :green_circle:

  ## Consumer setting to update it:
  # a. Auto
  - enable.auto.commit=true + auto.commit.interval.ms=1000 (1 min)

  # b. Manual
  - enable.auto.commit=false
  - consumer processing - A-sync or sync
  - KafkaConsumer.CommitSync()/CommitASync();

4.5 Delivery semantic (just concept)

  • scenario-1 :: at most once (max=1)
    • consumer > poll > processing synchronously (will take around 2 min)
    • offset auto-updated by 1, after 1 min of polling.
    • early offset update, since processing stilling going on.
  • Scenario-2 :: at least once (min=1)
    • consumer > poll > processing synchronously (will take around 20 sec)
    • 2 message read, and broker crashed while processing 3rd.
    • offset not updated.
    • broker is up again and will consume from old offset
    • above 2 messages will be processed again.
    • so keep consumer idempotent

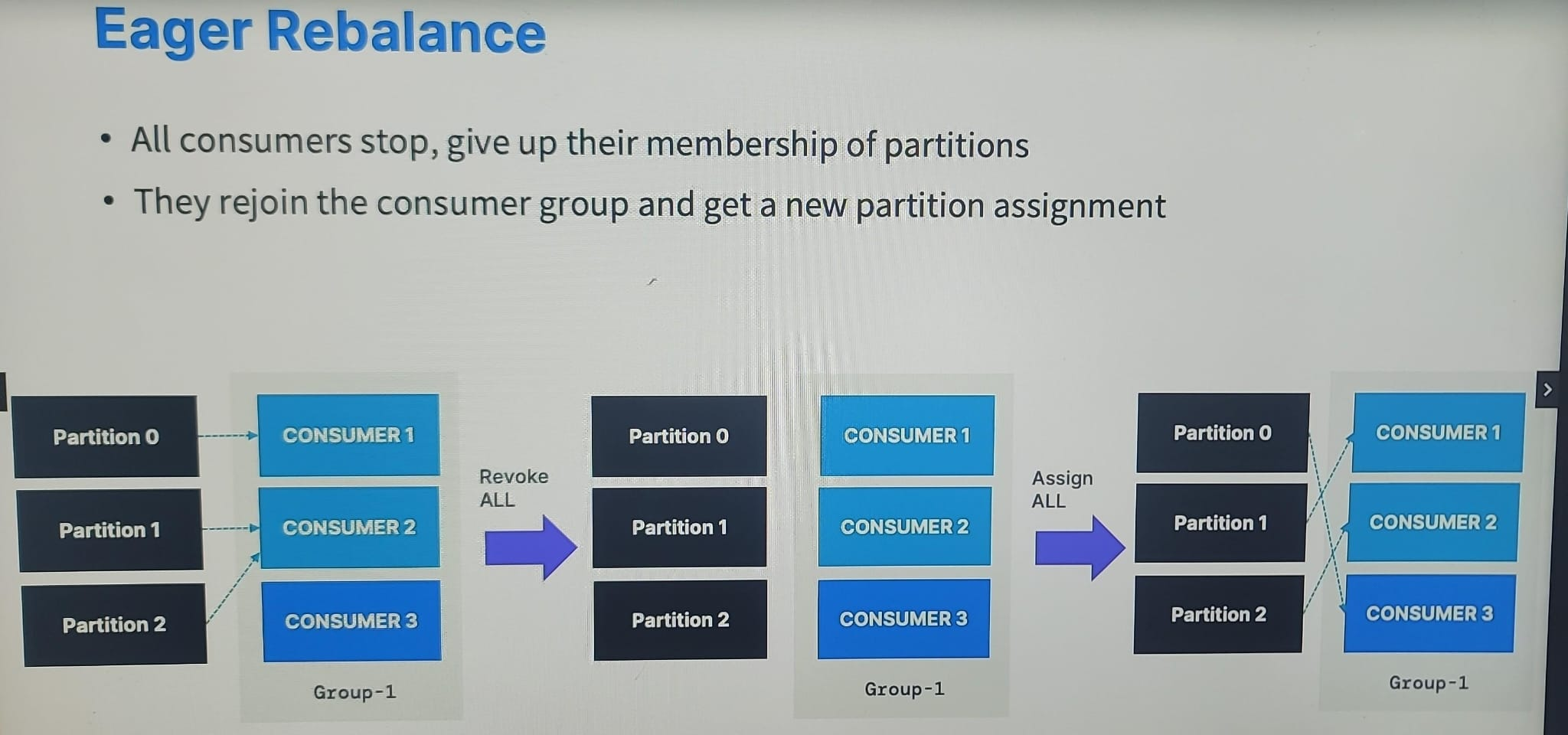

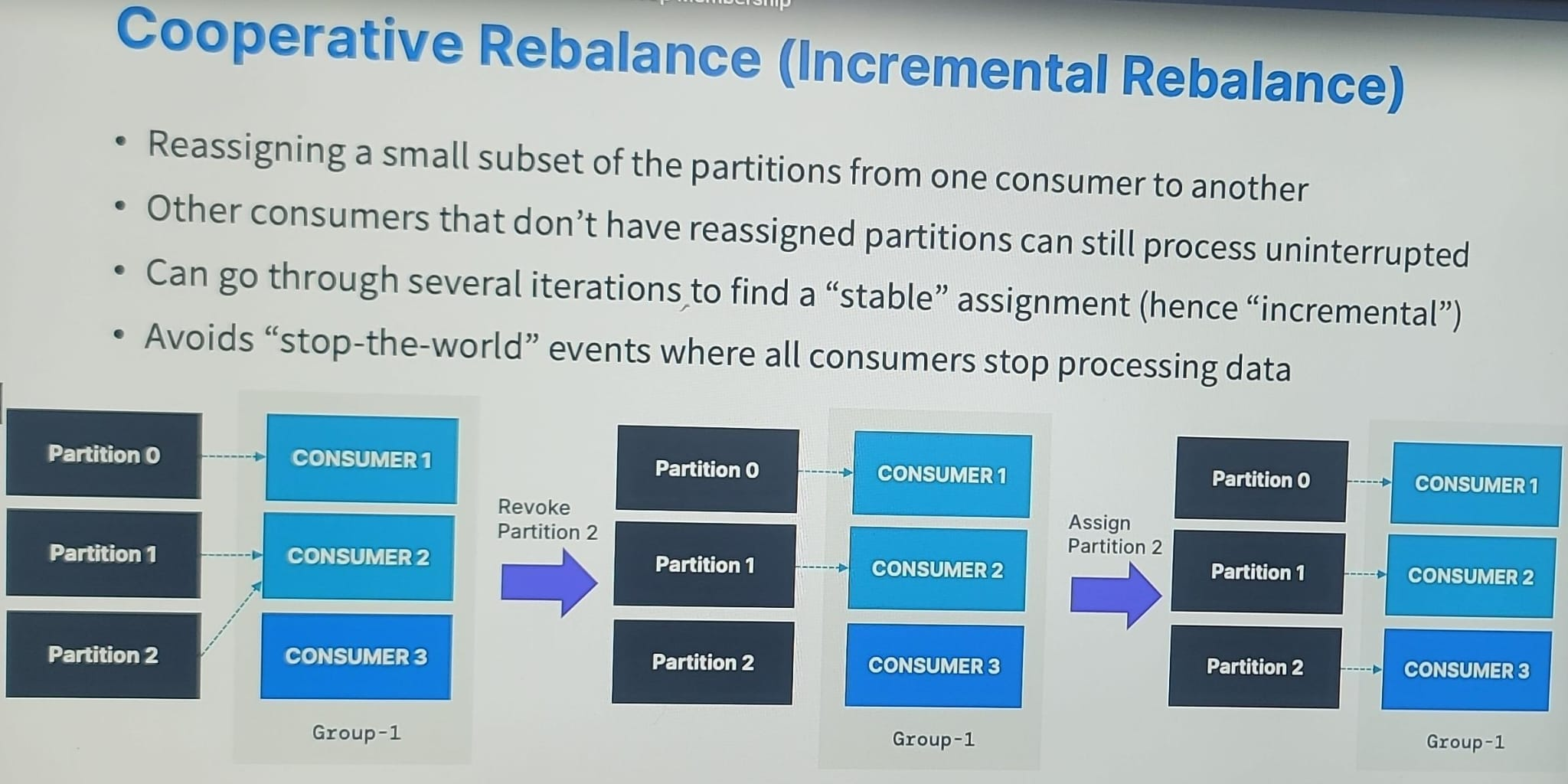

4.6 Rebalance :green_circle:

  • whenever consume leaves/joins group, rebalance happens
  • moving partition b/w consumers.
  • if static member leave the group and joins back within session.timeout.ms, the gets it original partition.
  • img.png
  • img_1.png

4.7 liveliness :yellow_circle:

  • threads running on broker to check of consumer/s:
  • heartbeat thread
    • heartbeat.interval.ms=
  • poll thread
    • checks time-interval b/w 2 poll() calls
    • max.poll.interval.ms= 5minute(default) # keep high for Bigdata.
    • side note: if needed update max.poll.records

4.8 replay :yellow_circle:

  • consumer config : auto.offset.rest=???? # update these for topic, for replay 👈
    • latest - read latest, no history
    • earliest - read from offset 0, all history
    • none - throws exception no offset found.
      • offset.retention.minutes=
    • specific-value. eg:500
    • shiftby
    • fact: replay has wont no impact on imdepotent-consumer

4.7 Advance config (skip)

  • long polling mechanism --> fetch.max.wait.ms=
  • can read from geographically the closest replica. 👈
    • partition-0 (leader) : aws-region1-az1
    • partition-1 (isr) : aws-region1-az2
    • consumer runinng on az2, then can configure to read from partition-1 (isr) only.
    • use this, if want to reduce aws network cost 👈
    • config on consumer:
      • rack.id= usw2-az2
      • replica.selcetor.class= RackAwareReplicaSelector
      • client.rack= data-center-id

5 more

  • 5.1 Kafka Connect

    • Kafka Connect Source Connectors
    • Kafka Connect Sink Connectors
  • 5.2 Schema Registry

  • 5.3 ksqlDB

    • transform Kafka topics to SQL-like database
    • thus can perform SQL-like operation
  • 5.4 Zookeeper

    • like master node in k8s cluster.
    • Zookeeper is used to track cluster state, membership, and leadership.
    • Being Eliminated from Kafka v4.x. less secure
    • metadata management in the Kafka world
    • perform leader elections
    • stores configurations for topics and permissions.
    • does NOT store consumer offsets

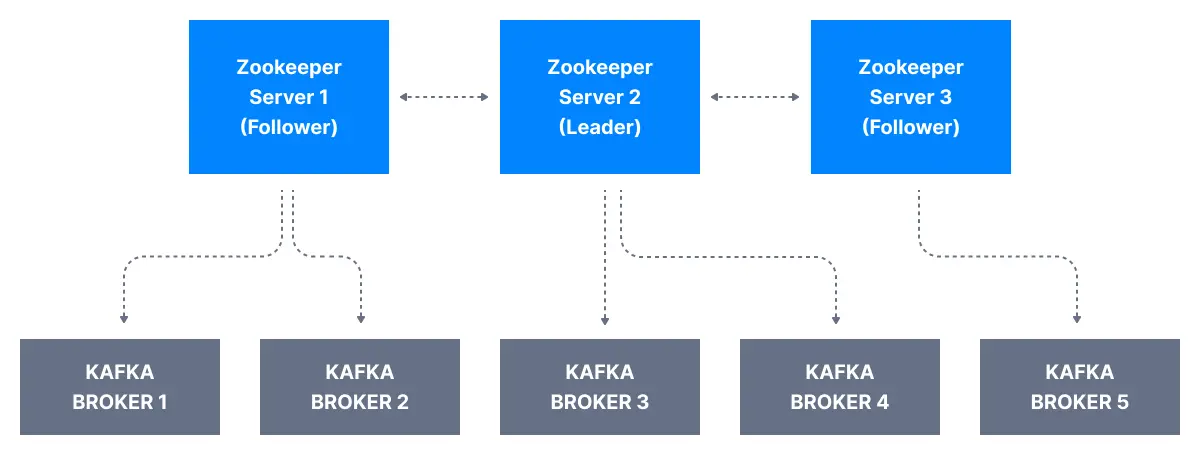

    • ensemble / Zookeeper cluster: 3,5, 7,...
    • img_1.png
  • 5.5 Kafka KRaft Mode


Programs

  • https://chatgpt.com/c/674a1fef-5634-800d-b445-dfa969b74011
        <dependency>
            <groupId>org.springframework.kafka</groupId>
            <artifactId>spring-kafka</artifactId>
        </dependency>

    spring.kafka.bootstrap-servers=localhost:9092
    spring.kafka.consumer.group-id=kafka-generic-consumer-group
    spring.kafka.consumer.auto-offset-reset=earliest/latest/none

    spring.kafka.consumer.key-deserializer=org.apache.kafka.common.serialization.StringDeserializer


producer

 - @Autowired KafkaTemplate<String, String> kafkaTemplate;
 - String message = objectMapper.writeValueAsString(student);
 - kafkaTemplate.send("topic-1", message);

produce - sysn + async

  • sysc - send(produceRecord)
  • a-sync - send(produceRecord, new Callback() { @override onCompletion ... })

produce in batch

  • props.put("batch.size","400");
  • key must be null
  • props.put("partitioner.class","RR); // for demo purpose only.
  • consumer side
    • read messages in batch poll()
    • process batch for(m:messages)
    • then update offset manually
    • keep consumer code, idempotent.

produce with key (k1,k2,k3)

  • add consumer group with 3 consumer/s
  • check ordering :)

consumer

 @KafkaListener(topics = {"kafka-topic-1", "kafka-topic-2"}, groupId = "kafka-generic-consumer-group") m(String s) {...}
- consume : props.groupId("group.id","") + props.put("group.instance.id","") static consumer - props.put("auto.offset.rest","earliest")

scenario-1: generic consumer for diff schema

kafka-topic-1 (schema : student)
kafka-topic-2 (schema- customer)
kafka-generic-consumer-1 : subscribed to kafka-topic-1 and kafka-topic-2.

# producer sending json
# De-Serailize json to string
# while consuming, Objectmapper.readObject(jsonStr, student/customer.class)
spring.kafka.consumer.value-deserializer=org.apache.kafka.common.serialization.StringDeserializer

scenario-2 : partitions < consumer

Topic: topic-1 with 2 partitions (partition-0 and partition-1).
Consumer Group: topic-1-group-1.
Consumers: c1, c2, c3, c4.

# Partition Assignment
partition-0: Assigned to c1.
partition-1: Assigned to c2.
c3 and c4 are idle because there are not enough partitions for them.

scenario-3 : partitions > consumer

Topic: topic-1 with 4 partitions (partition-0, partition-1, partition-2, partition-3).
Consumer Group: topic-1-group-1.
Consumers: c1, c2

# Partition Assignment :

## --- Using RangeAssignor ---
c1: partition-0, partition-1.
c2: partition-2, partition-3.

## ---  Using RoundRobinAssignor ---
c1: partition-0, partition-2.
c2: partition-1, partition-3.
